Kit 2-DIN Chrysler/Dodge/Jeep/VW LFB/Amp black

2-DIN Radio Bezel and Chrysler / Dodge / Jeep / Lancia / Mitsubishi / VW Radio Connection Kit

Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.

Installation kits contain all the components necessary to replace an OEM unit.

Depending on the vehicle's equipment, all adapters and interfaces necessary to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Consider the installation recommendations for each of the components.

In some cases, not all vehicle features are supported.

For example, Trailer Assist, E Call or other driver assistance systems.

Check the various settings in the vehicle menu before installation.

Check the operation of the adjustments before the final installation.

Please make sure that the original factory radios and adapter plugs that we show you match the equipment of the vehicle.

Note:

CAN bus

Connection: Chrysler 22-pin plug // Chrysler 24-pin plug

Connection: Fakra(m) > DIN(m)

Connection: USA1 > DIN(m)

blue/white: +12V switched Amp Remote

Vehicles with CAN bus without +12V switched ignition terminal 15

Vehicles with/without OEM sound system

Vehicles without blind spot equipment

Driving assistance system Blind spot display in exterior mirrors not compatible

PDC not supported

Speedpulse not supported

Sound system fader not supported

Check phone/navigation audio playback, if necessary, switch front/back by reconnection

Suitable for the following vehicles:

CHRYSLER

Chrysler 200 2011 - 2014

Chrysler 300C (LX) 11/2007 - 12/2010

Chrysler Aspen 2008 - 2009

Chrysler Sebring (RJ) 05/2007 - 08/2010

Chrysler Town&Country 2008 - 2016**

DODGE

Dodge Avenger 2008 - 2014

Dodge Caliber (PK) 10/2008 - 12/2010

Dodge Challenger 2008 - 2014

Dodge Charger 2009 - 2010

Dodge Dakota 2008 - 2011

Dodge Durango 2008 - 2009

Dodge Grand Caravan 2008 - 2017

Dodge Journey (JC) 06/2008 - 12/2010*/**

Dodge Magnum 2008 - 2009

Dodge Nitro 2007 - 2011

Dodge Ram 1500 2009 - 2011

Dodge RAM 2500/3500 2010 - 2012**

Dodge RAM Chassis CAB 2011 - 2012**

Dodge RAM C/V Tradesman 2012 - 2015**

Jeep

Jeep Commander (WH) 2008 - 2010

Jeep Compass (PK) 2009 - 06/2010

Jeep Compass (PK) 05/2011 - 12/2016

Jeep Grand Cherokee (WH) 10/2007 - 12/2010

Jeep Patriot (PK) 2009 - 2017

Jeep Liberty 2008 - 2012

Jeep Wrangler (JK) 04/2007 - 02/2011

Jeep Wrangler (JK) 02/2011 - 07/2018

LANCIA

Lancia Voyager (RT) 11/2011 - 08/2015

MITSUBISHI

Mitsubishi Raider 2008 - 2009

GREEN WHITE

VW Touran 2009 - 2015

The following signals are provided:

handbrake sign

reverse signal

IGNITION

Remote control on the steering wheel

OEM sound system fader function is not supported

References:

*Adapt radio installation slot manually with workshop tools

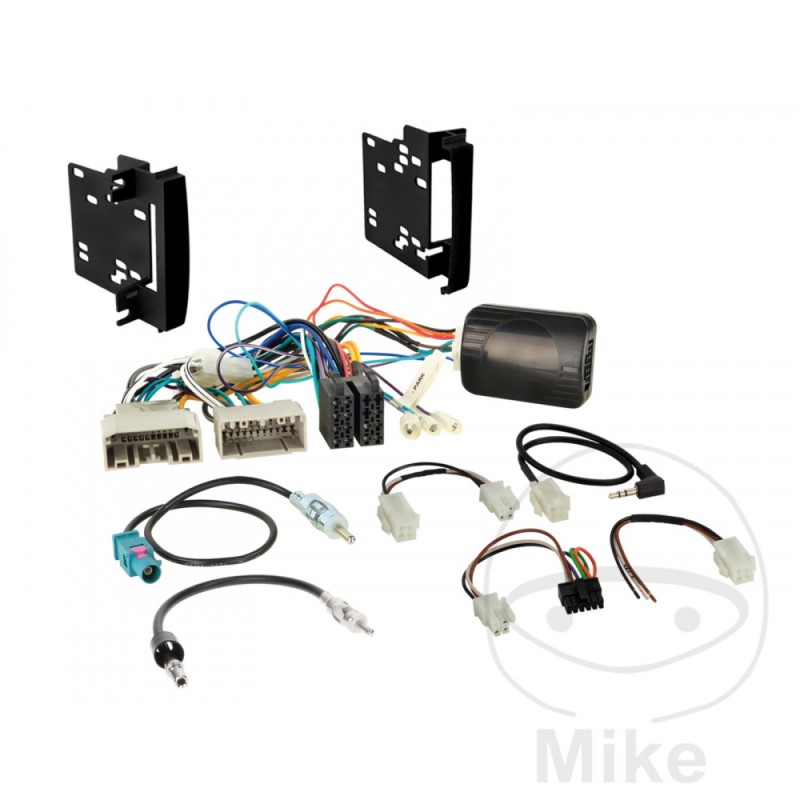

Scope of supply:

2-DIN RB Chrysler/Dodge/Jeep/VW Black: 381145-07

LFB Chrysler/Dodge/Jeep/Lancia/Mitsubishi/VW: 42sch00c

LFB Cable ACV > Multilead various devices: 42ctmultilead

Antenna adapter USA1 > DIN(m) US vehicles: 1531-01

Passive Fakra(m) > DIN(m) antenna adapter: 194 01 89

Optional:

Chrysler/Dodge/Jeep/Mitsubishi/VW Rear View Camera Adapter: 194 0827

**Rear View Camera Adapter / RSE Adapter Chrysler/Dodge/Jeep: 771030-1030
