Radio panel and connection kit 2-DIN AUF 1-DIN VAG 1940904
€30.88
Tax included
Kit 1-DIN 1 Seat/Skoda/VW various passive vehicles
2-DIN radio bezel with compartment and radio - mounting kit Seat / Skoda / VW
Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.
Mounting kits contain all the components to replace an OEM unit.
Depending on the vehicle's equipment, all adapters and interfaces necessary to operate the retrofit device and restore vehicle functions are included in the scope of delivery.<
Take into account the assembly recommendations for each of the components.
In some cases, not all vehicle features are supported.
For example, Trailer Assist, E Call or other driver assistance systems.
Check the various settings in the vehicle menu before installation.
Check the operation of the adjustments before the final installation.
Please make sure that the original factory radios and adapter plugs that we show you match the equipment of the vehicle.
Note:
passive
Connection: 40 Pin Quadlock VW
Connection: Fakra(m) > DIN/ISO
connection:
red: +12V ignition current terminal 15 fuse box with fuses
orange: +12V dimmer terminal 58 fuse box with fuse
Skoda vehicles > Skoda OEM radio cover required*/**/***/****
Seat Leon / Toledo vehicles > with Golf V/IV style OEM drive with CD slot in drive
VW T5 / Caravelle / Multivan vehicles > with Golf V/VI style unit
Seat Leon/Toledo vehicles > without OEM drive with CD slot in drive bezel
VW T5 / Caravelle / Multivan vehicles > without rectangular OEM unit
Vehicles without OEM sound system
Panel trim work with shop tools if necessary
Suitable for the following vehicles:
SEAT
SeatSeat Alhambra (7N) 10/2010 - 04/2015
Seat Leon (1P) 04/2009 - 11/2012
Seat Toledo (NH) 03/2013 - 05/2015
Skoda
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013**
Skoda Rapid (NH) 10/2012 - 04/2015***
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Praktik (5J) 09/2006 - 04/2010
Skoda Praktik (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013****
Skoda Superb (3T) 06/2013 - 05/2015****
Skoda Yeti (5L) 08/2009 - 10/2013*****
GREEN WHITE
VW Amarok (2H) 03/2010 - 2016
VW Amarok (2H) 07/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caravelle (7H) 09/2009 - 05/2015
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta V (1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 09/2009 - 05/2015
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran I (1T) 01/2003 - 09/2006
VW Touran I (1T) 11/2006- 04/2010
VW Touran I (1T) 08/2010 - 04/2015
References:
* Vehicles with OEM Amundsen / Columbus / Nexus Navigation
** Vehicles with OEM Bolero / Swing unit > OEM Skoda Navigation Bezel Item number: equipment-dependent
*** OEM Skoda Bezel > Skoda item number: 5JA858 415 9B9
**** Vehicles with OEM Amundsen / Columbus Navigator
**** Vehicles with OEM Bolero / Swing unit > OEM Skoda Navigation Bezel Item number: 3TO8580691QB
***** OEM Skoda Bezel > Skoda item number: 5L0858069L1 QB

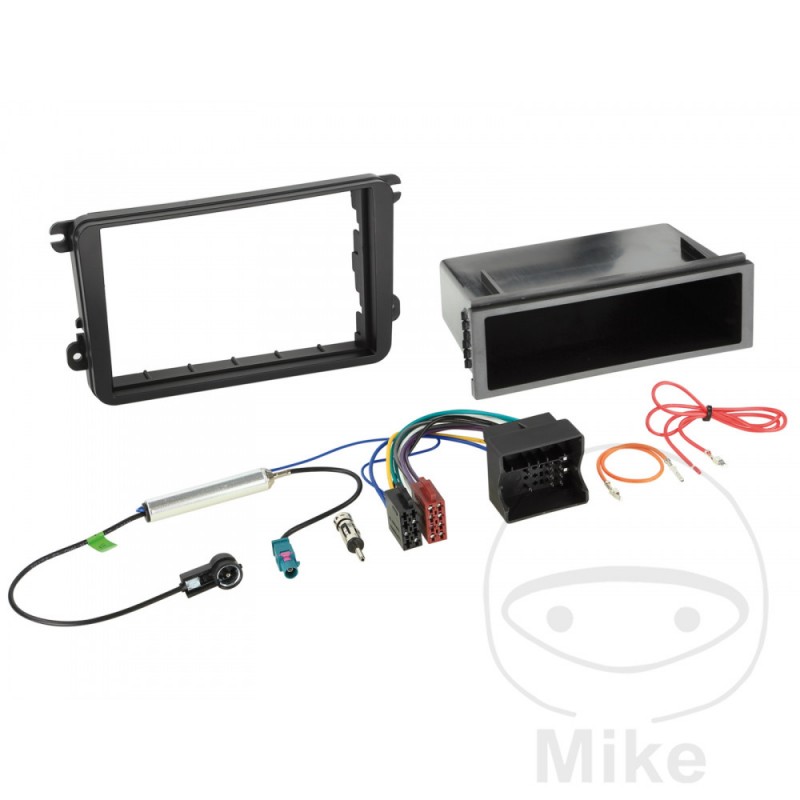

Scope of supply:
2-DIN RB Seat/Skoda/VW black
Storage compartment for 2-DIN radio trim/1-DIN radio trim > Item: 194 05 55
ISO adapter cable Audi/Seat/Skoda/VW Quadlock/Fakra>ISO > Article: 194 03 01
ISO(f)>DIN(m) antenna adapter > Item: 194 01 82
2-DIN radio bezel with compartment and radio - mounting kit Seat / Skoda / VW
Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.
Mounting kits contain all the components to replace an OEM unit.
Depending on the vehicle's equipment, all adapters and interfaces necessary to operate the retrofit device and restore vehicle functions are included in the scope of delivery.<
Take into account the assembly recommendations for each of the components.
In some cases, not all vehicle features are supported.
For example, Trailer Assist, E Call or other driver assistance systems.
Check the various settings in the vehicle menu before installation.
Check the operation of the adjustments before the final installation.
Please make sure that the original factory radios and adapter plugs that we show you match the equipment of the vehicle.
Note:
passive
Connection: 40 Pin Quadlock VW
Connection: Fakra(m) > DIN/ISO
connection:
red: +12V ignition current terminal 15 fuse box with fuses
orange: +12V dimmer terminal 58 fuse box with fuse
Skoda vehicles > Skoda OEM radio cover required*/**/***/****
Seat Leon / Toledo vehicles > with Golf V/IV style OEM drive with CD slot in drive
VW T5 / Caravelle / Multivan vehicles > with Golf V/VI style unit
Seat Leon/Toledo vehicles > without OEM drive with CD slot in drive bezel
VW T5 / Caravelle / Multivan vehicles > without rectangular OEM unit
Vehicles without OEM sound system
Panel trim work with shop tools if necessary
Suitable for the following vehicles:
SEAT
SeatSeat Alhambra (7N) 10/2010 - 04/2015
Seat Leon (1P) 04/2009 - 11/2012
Seat Toledo (NH) 03/2013 - 05/2015
Skoda
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013**
Skoda Rapid (NH) 10/2012 - 04/2015***
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Praktik (5J) 09/2006 - 04/2010
Skoda Praktik (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013****
Skoda Superb (3T) 06/2013 - 05/2015****
Skoda Yeti (5L) 08/2009 - 10/2013*****
GREEN WHITE
VW Amarok (2H) 03/2010 - 2016
VW Amarok (2H) 07/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caravelle (7H) 09/2009 - 05/2015
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta V (1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 09/2009 - 05/2015
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran I (1T) 01/2003 - 09/2006
VW Touran I (1T) 11/2006- 04/2010
VW Touran I (1T) 08/2010 - 04/2015
References:
* Vehicles with OEM Amundsen / Columbus / Nexus Navigation
** Vehicles with OEM Bolero / Swing unit > OEM Skoda Navigation Bezel Item number: equipment-dependent
*** OEM Skoda Bezel > Skoda item number: 5JA858 415 9B9
**** Vehicles with OEM Amundsen / Columbus Navigator
**** Vehicles with OEM Bolero / Swing unit > OEM Skoda Navigation Bezel Item number: 3TO8580691QB
***** OEM Skoda Bezel > Skoda item number: 5L0858069L1 QB
Scope of supply:
2-DIN RB Seat/Skoda/VW black
Storage compartment for 2-DIN radio trim/1-DIN radio trim > Item: 194 05 55
ISO adapter cable Audi/Seat/Skoda/VW Quadlock/Fakra>ISO > Article: 194 03 01
ISO(f)>DIN(m) antenna adapter > Item: 194 01 82
1940904
