2-DIN radio bezel and Seat / Skoda / VW radio connection kit

Kit 2-DIN 1 Seat/Skoda/VW various vehicles CAN Bus black

Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.

Installation kits contain all the components necessary to replace an OEM unit.

Depending on the vehicle's equipment, all adapters and interfaces necessary to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Consider the installation recommendations for each of the components.

In some cases, not all vehicle features are supported.

For example, Trailer Assist, E Call or other driver assistance systems.

Check the various settings in the vehicle menu before installation.

Check the operation of the adjustments before the final installation.

Please make sure that the original factory radios and adapter plugs that we show you match the equipment of the vehicle.

Note:

CAN bus

Connection: 40 Pin Quadlock VW

Connection: Fakra(m) > DIN/ISO

The outputs are loadable up to 1A

Cutout for radio screen: 172mm x 98.5mm

VW T5 Cars with Sound System VW T5/Touareg Quadlock MQS Active System Adapter insert: 13-1424-26

Suitable for the following vehicles:

SEAT

Seat Alhambra (7N) 10/2010 - 2015

Seat Leon (1P/1PN Facelift) 03/2009 - 10/2012

Seat Toledo (KG) 03/2013 - 2016

Skoda

Skoda Fabia (5J) 03/2007 - 06/2014

Skoda Octavia II (1Z Facelift) 01/2009 - 02/2013

Skoda Rapid (NH) 10/2012 - 2015

Skoda Roomster (5J) 09/2006 - 2015

Skoda Praktik (5J) 04/2007 - 04/2015

Skoda Superb (3T4) 07/2008 -2015**

Skoda Superb (3T5) 01/2010 - 2015**

Skoda Yeti (5L) 08/2009 - 2014***

GREEN WHITE

VW Amarok (2H) 03/2010 - 2016

VW Amarok (2HS2) 11/2011 - 2016

VW Beetle (16/5C1/16/5C7) 11/2011 - 2016

VW Beetle (16/5C7) 11/2012 - 2016

VW Caddy (2K/2KN) 10/2003 - 2014

VW Caravelle 09/2009 - 2015

VW CC (3CC) 02/2012 - 2016

VW EOS (1F) 05/2006 - 2012

VW Golf V (1K) 11/2003 - 09/2008

VW Golf V (1KM) 06/2007 - 10/2009

VW Golf V Plus (1KP) 01/2005 - 02/2009

VW Golf VI (1K) 11/2008 - 09/2012

VW Golf VI (1KM) 11/2009 - 04/2013

VW Golf VI Plus (1KP) 03/2009 - 01/2014

VW Jetta V (1KM) 09/2005 - 10/2010

VW Jetta VI (16) 01/2011 - 2015

VW Multivan 09/2009 - 2015

VW Passat B6 (3C2) 11/2005 - 07/2010

VW Passat B6 (3C5) 08/2005 - 07/2010

VW Passat B7 (3C/362) 11/2010 - 10/2014

VW Passat B7 (3C/365) 11/2010 - 10/2014

VW Passat B7 (3C/365) 01/2012 - 10/2014

VW Passat CC (3C/3CC) 05/2008 - 01/2012

VW Polo (6R) 06/2009 - 03/2014

VW Scirocco III (13) 08/2008 - 2014

VW Sharan II (7N) 09/2010 - 2014

VW Tiguan (5N) 09/2007 - 2016

VW Touran (1T) 02/2003 - 2015

VW T5 Transporter 09/2009 - 2015

The following signals are provided:

IGNITION

Turning on

reverse

speedpulse

Activation of the OEM sound system (Seat, Skoda, VW)

References:

*May need to order Skoda OEM trim: 5JA858 415 9B9

**Vehicles with OEM Swing device OEM-Skoda bezel: 3TO8580691QB (COLUMBUS Navi bezel)

***May need to order OEM Skoda bezel: 5L0858069L1 QB

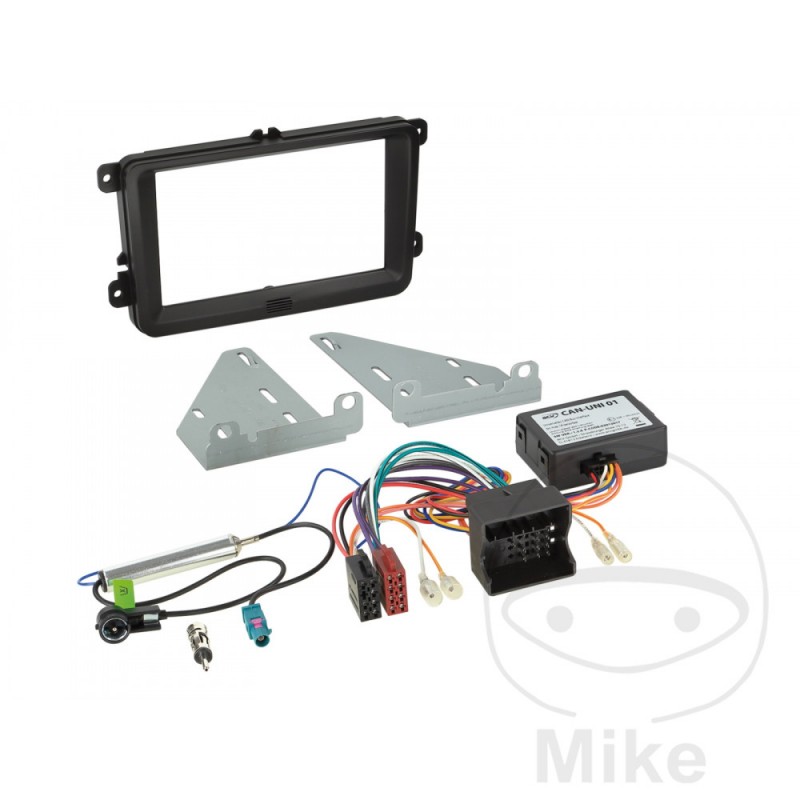

Scope of supply:

2-DIN RB Seat/Skoda/VW various vehicles black: 194 04 46

CAN-Bus Kit VAG 40Pin Quadlock>ISO/Fakra Antenna>ISO: 194 02 12

ISO(f) > DIN(m) antenna adapter: 194 01 82
