    Radio panel with compartment and connection kit 2-DIN AUF 1-DIN VAG CAN-BUS 1940905

    SIN MARCA
    Review (0)
    €103.87
    Tax included
    Quantity :
    Está disponible, lo enviaremos lo antes posible, lo recibirás en unos 16 dias.
    1-DIN Kit 2 Seat/Skoda/VW various vehicles CAN Bus

    2-DIN radio trim with compartment and Seat / Skoda / VW radio connection kit

    Many car manufacturers install their own vehicle-specific radios that are visually matched to the center console.

    Installation kits contain all the components to replace an OEM unit.

    Depending on the vehicle's equipment, all adapters and interfaces necessary to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

    Take into account the assembly recommendations for each of the components.

    In some cases, not all vehicle features are supported.

    For example, Trailer Assist, E Call or other driver assistance systems.

    Check the various settings in the vehicle menu before installation.

    Check the operation of the adjustments before the final installation.

    Please make sure that the original factory radios and adapter plugs that we show you match the equipment of the vehicle.

    Note:

    CAN bus

    Connection: 40 Pin Quadlock VW

    Connection: Fakra(m) > DIN/ISO

    The outputs are loadable up to 1A

    VW T5 vehicles with sound system VW T5/Touareg Quadlock MQS active system adapter insert: 13-1424-26

    Light panel adjustment work may be required

    Suitable for the following vehicles

    SEAT

    Seat Alhambra (7N) 10/2010 - 2015

    Seat Leon (1P/1PN Facelift) 03/2009 - 10/2012

    Seat Toledo (KG) 03/2013 - 2016

    Skoda

    Skoda Fabia (5J) 03/2007 - 06/2014

    Skoda Octavia II (1Z Facelift) 01/2009 - 02/2013

    Skoda Rapid (NH) 10/2012 - 2015

    Skoda Roomster (5J) 09/2006 - 2015

    Skoda Praktik (5J) 04/2007 - 04/2015

    Skoda Superb (3T4) 07/2008 -2015**

    Skoda Superb (3T5) 01/2010 - 2015**

    Skoda Yeti (5L) 08/2009 - 2014***

    GREEN WHITE

    VW Amarok (2H) 03/2010 - 2016

    VW Amarok (2HS2) 11/2011 - 2016

    VW Beetle (16/5C1/16/5C7) 11/2011 - 2016

    VW Beetle (16/5C7) 11/2012 - 2016

    VW Caddy (2K/2KN) 10/2003 - 2014

    VW Caravelle 09/2009 - 2015

    VW CC (3CC) 02/2012 - 2016

    VW EOS (1F) 05/2006 - 2012

    VW Golf V (1K) 11/2003 - 09/2008

    VW Golf V (1KM) 06/2007 - 10/2009

    VW Golf V Plus (1KP) 01/2005 - 02/2009

    VW Golf VI (1K) 11/2008 - 09/2012

    VW Golf VI (1KM) 11/2009 - 04/2013

    VW Golf VI Plus (1KP) 03/2009 - 01/2014

    VW Jetta V (1KM) 09/2005 - 10/2010

    VW Jetta VI (16) 01/2011 - 2015

    VW Multivan 09/2009 - 2015

    VW Passat B6 (3C2) 11/2005 - 07/2010

    VW Passat B6 (3C5) 08/2005 - 07/2010

    VW Passat B7 (3C/362) 11/2010 - 10/2014

    VW Passat B7 (3C/365) 11/2010 - 10/2014

    VW Passat B7 (3C/365) 01/2012 - 10/2014

    VW Passat CC (3C/3CC) 05/2008 - 01/2012

    VW Polo (6R) 06/2009 - 03/2014

    VW Scirocco III (13) 08/2008 - 2014

    VW Sharan II (7N) 09/2010 - 2014

    VW Tiguan (5N) 09/2007 - 2016

    VW Touran (1T) 02/2003 - 2015

    VW T5 Transporter 09/2009 - 2015

    The following signals are provided:

    IGNITION

    Turning on

    reverse

    speedpulse

    Activation of the OEM sound system (Seat, Skoda, VW)

    References:

    *May need to order Skoda OEM trim: 5JA858 415 9B9

    **Vehicles with OEM Swing device OEM-Skoda bezel: 3TO8580691QB (COLUMBUS Navi bezel)

    ***May need to order OEM Skoda bezel: 5L0858069L1 QB

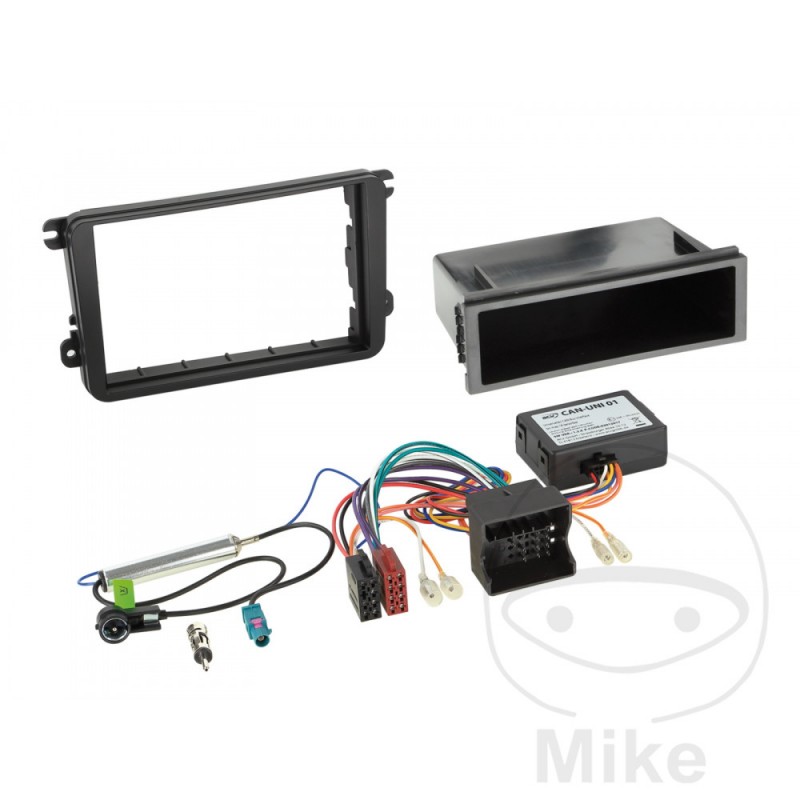

    Scope of supply:

    2-DIN RB Seat/Skoda/VW black

    Frame compartment 2-DIN 1-DIN RB VW 113 mm Height: 194 05 55

    CAN-Bus Kit VAG 40Pin Quadlock>ISO/Fakra Antenna>ISO: 194 02 12

    ISO(f) > DIN(m) antenna adapter: 194 01 82
    SIN MARCA
    1940905
    10 Items
