SIN MARCA anchor bar M16X60/210 VMZ-A 125 M16-60/210 M16X60/210 VMZ-A 125 M16-60/210 486.00.04
€19.17
Tax included

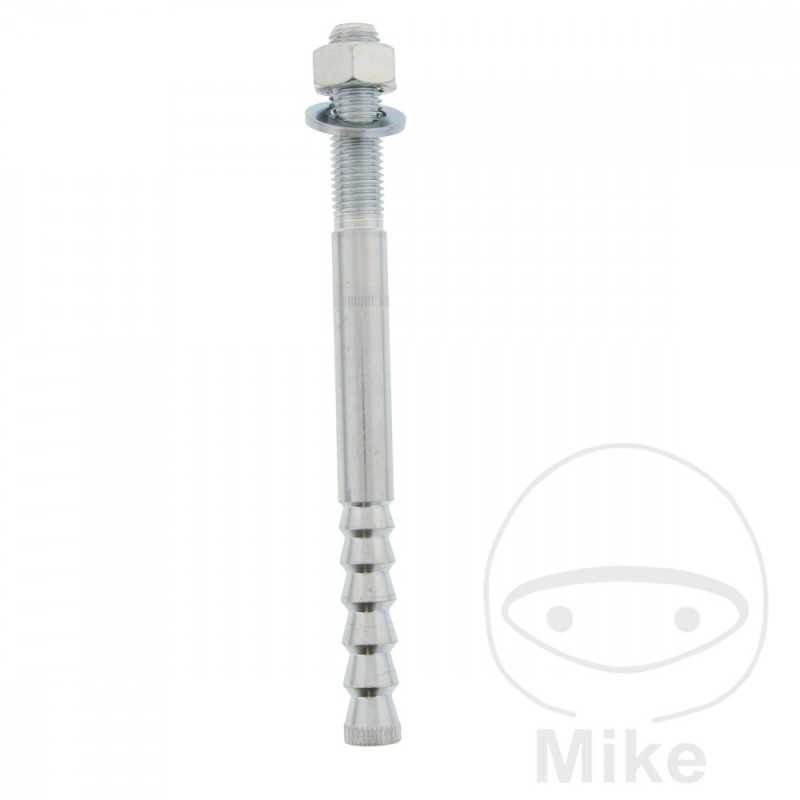

Anchor bar VMZ- A 125 M16- 60/210
The VMZ grouting system consists of an anchor rod with conical expansion elements and a 2-component grouting mortar.
This combination makes it possible to introduce high loads into the subsoil with small edge and axial distances.
Thus, it combines the advantages of bonded and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 486.04.09)
Drill diameter mm: 18
Total length of the spike in mm: 210
Thread: M16 x 55
Drilling depth mm: 165
required anchoring depth in concrete mm: 105
thickness max. component clamping mm:
The VMZ grouting system consists of an anchor rod with conical expansion elements and a 2-component grouting mortar.
This combination makes it possible to introduce high loads into the subsoil with small edge and axial distances.
Thus, it combines the advantages of bonded and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 486.04.09)
Drill diameter mm: 18
Total length of the spike in mm: 210
Thread: M16 x 55
Drilling depth mm: 165
required anchoring depth in concrete mm: 105
thickness max. component clamping mm:
486.00.04
