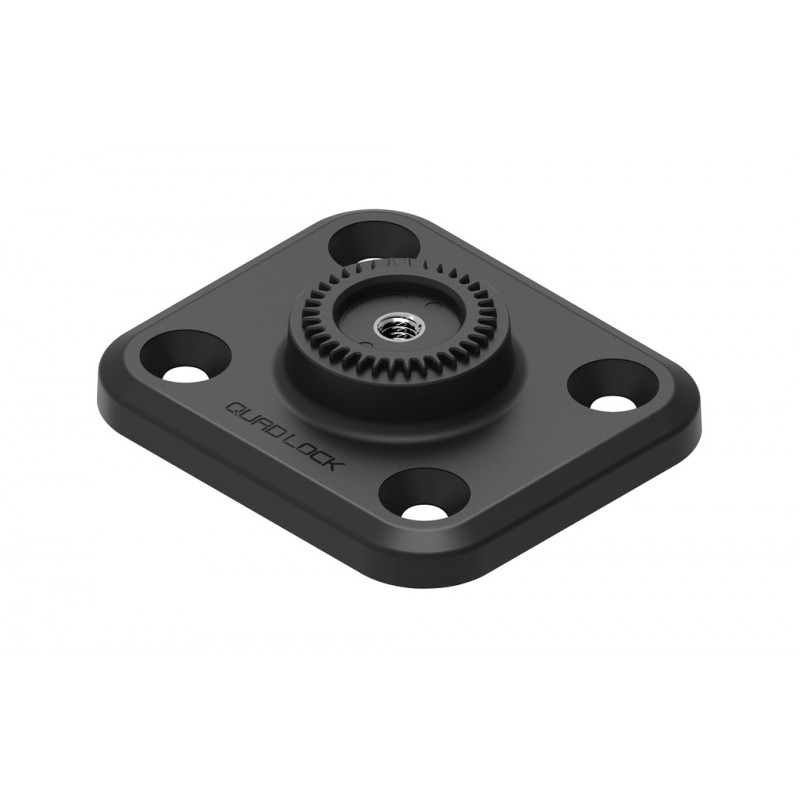

QUAD LOCK Rectangular base with 4 holes 360 9348943016377

Securely attach your mount to flat surfaces using one of the rectangular flat hole mounts.

Choose between a 2-hole or 4-hole base.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the universal AMP hole spacing standard and the holes will accept 10G or M5 countersunk fasteners. If you use the 4-hole base, we recommend using the 4-hole screws for a stronger connection.

10mm spacers and x2 screws are supplied to connect the spacer to a Quad Lock 360 head or arm.

Please note: Screws are not provided to mount the base to the required surface

Both rectangular bases are constructed of heavy-duty nylon and use the AMP universal hole spacing standard.

Holes will accept 10G or M5 countersunk fasteners.

2.3" (58mm) long x 2" (50mm) wide x 0.55" (14mm) high

AMPS Hole Pitch: 38mm (1.5") x 30mm (1.2")

Included :

1 rectangular flat base with 4 holes.

1 x 10mm spacer.

1 M5x30 screw (to connect the spacer to the lever head or 360 arm)

1 x M5x45 screw (to connect the spacer to the weatherproof wireless charging head)

COMPONENT: BASE
