SIN MARCA anchor bar M12 X 60/180 VMZ-A 100 M12-60/180 M12 X 60/180 VMZ-A 100 M12-60/180 486.00.01
€19.59
Tax included

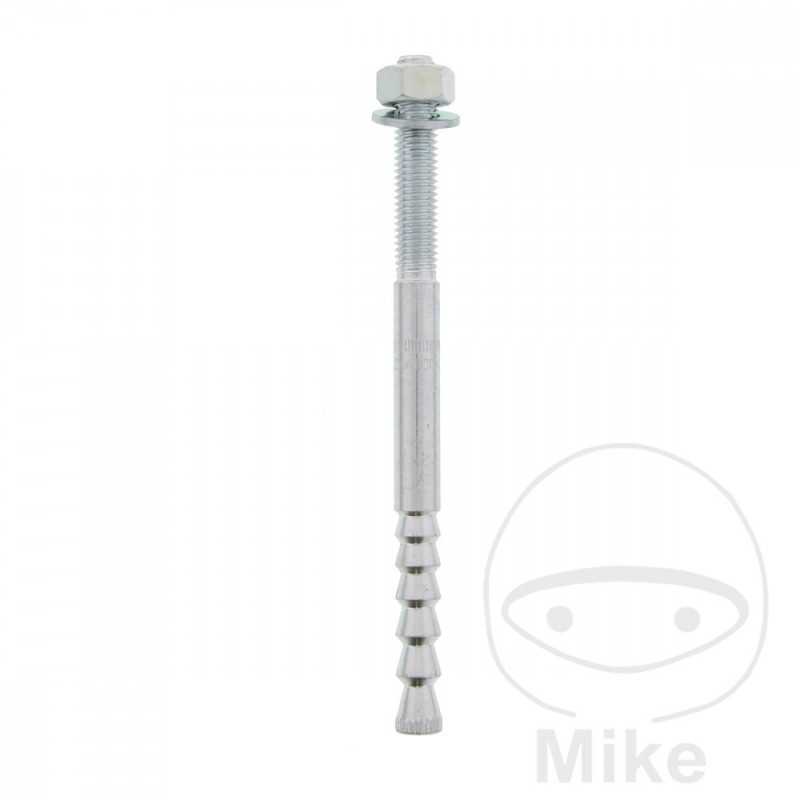

Anchor bar VMZ- A 100 M12- 60/180
The VMZ injection system consists of an anchor rod with conical expansion elements and a
2-component injection mortar. This combination allows to apply high loads with small
edge and center distances in the subsurface. Thus, it combines the advantages of
and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 4860409)
Drill diameter mm: 14
Shank length in all mm: 180
Thread: M12x56
Drilling depth mm: 155
required anchoring depth in concrete mm: 100
thickness max. component clamping mm:
The VMZ injection system consists of an anchor rod with conical expansion elements and a
2-component injection mortar. This combination allows to apply high loads with small
edge and center distances in the subsurface. Thus, it combines the advantages of
and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 4860409)
Drill diameter mm: 14
Shank length in all mm: 180
Thread: M12x56
Drilling depth mm: 155
required anchoring depth in concrete mm: 100
thickness max. component clamping mm:
486.00.01
