Universal Regulator / Rectifier 700.17.40

3 Phase 12 Volt Universal Rectifier/Regulator



Technical details:

- 12 volts

- Output current: up to 50 amps

- 5-wire configuration designed to replace existing 5-wire/6 DRH regulator

- Mosfet technology (runs cooler than the old OEM regulator/rectifier)

- LXBXH: 90X80X28 mm

- Compatible with most 3- and 2-wire stator systems

- Automatically detects three-phase or single-phase sources

- Great replacement for your existing, undersized or outdated regulator/rectifier

- Reduced heating extendinger life

- Precise electronic control of battery voltage eliminates ignition sense wire

- High-quality connector set for professional harness adaptation

- 80cm harness can fit most OEM cables

- Center to Center Mounting Holes: 66 to 74mm

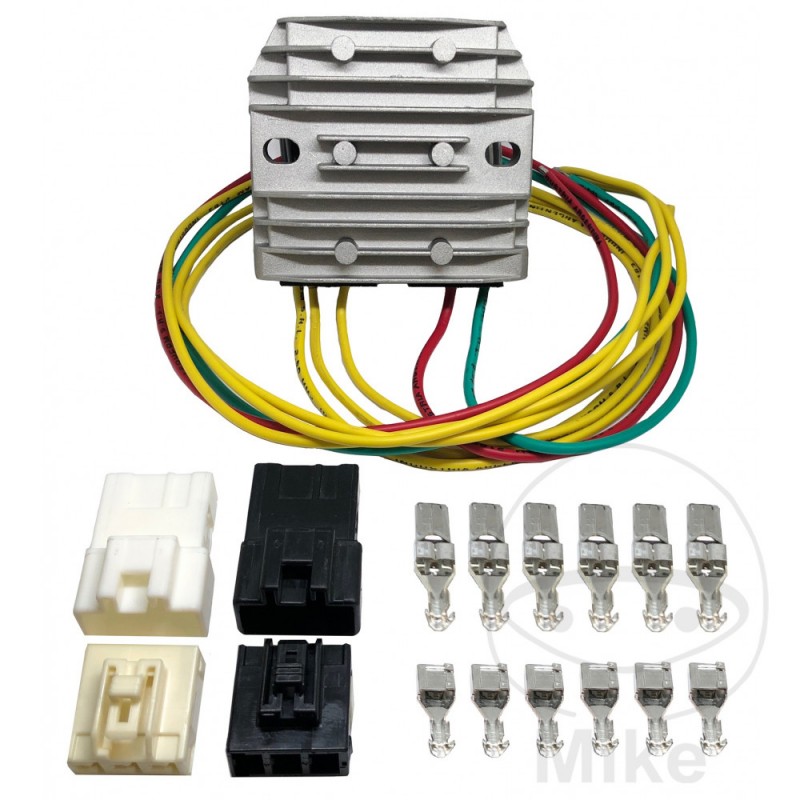

Contents:

- Controller

- 4 plugs

- Mounting material (connection plugs)

MOSFET technology:

This new technology has innovated the concept of three-phase stepper regulators. For many years these devices used Silicon Controlled Rectifiers (SCRs) to direct excess power from the generator to ground in order to keep the battery voltage constant.

This was generally accepted and proved to be suitable for small and medium sized generators in internal combustion engines. However, newer MOSFET-based regulator technology is becoming more and more popular due to its better performance and many other interesting advantages over SCRs.

The power demand in modern motorcycles and ATVs is increasing today due to the use of additional electronic modules such as fuel injection system, high-efficiency lighting, numerous accessories, etc. This means a large amount of energy to be used by the motor. This means a lot of power coming out of the generator and the SCR shunt regulator is no longer able to regulate it.

The main reason is low energy efficiency, the internal losses of the regulator lead to overheating and premature damage when currents greater than 35A pass through the regulator. Consequently, SCR technology has reached a limit and is therefore not recommended for large vehicles with high energy consumption.

To solve this problem mentioned above, it was necessary to reduce the losses in the circuit. When the SCR is active (generator current to ground), there is a high voltage drop in the forward direction (approx. 1.5V @ 35A), because it functions as a power diode. If the current increases now, the power loss (eg heat) increases in parallel.



DEVICE POWER LOSS (W) = FORWARD CURRENT (A) X VOLTAGE DROP (V)



Advantage:

- HIGH ENERGY EFFICIENCY THREE-PHASE SHUNT CONTROLLER

- OUTPUT POWER UP TO 50A

- PRECISE ELECTRONIC CONTROL OF BATTERY VOLTAGE PREVENTS MISFIRING

- THE REDUCTION OF HEAT GENERATION ALLOWS A LONGER USEFUL LIFE

- LOW POWER STANDBY MODE WHEN THE VEHICLE IS NOT IN USE



Unlike other transistors, MOSFET transistors can be characterized as voltage controlled switches, since their completely different semiconductor architecture makes them more energy efficient.

When used, they behave like a low power resistor for high currents, conducting all excess current from the generator to ground. As a result, voltage drop is very low (less than +/-0.2V @ 35A) and power dissipation is drastically reduced. This has a direct effect on the lower heating of the unit and on the long life of the regulator.

MOSFET technology has continuously improved in recent years due to its wide application in consumer and industrial electronics. Semiconductor integration technology offers increased power handling in a small footprint with excellent efficiency. In addition, they allow faster switching, greater reliability and better control under high voltage conditions.

The power of the rectifier diode is another important factor when it comes to power dissipation. Since all the output current flows through them, they must offer both great robustness and stability, as well as effective current control. Our MOSFET regulators use high current rectifier diodes with extremely low voltage drop, helping to prevent overheating and meeting the requirements mentioned above.

The internal DRIVER has been completely redesigned to accommodate the requirements of the MOSFET transistor. The battery voltage is constantly monitored to adapt the output current to different consumption situations. The new electronic control avoids the use of the ignition cable, reduces the number of connections and simplifies the topology of the cables. It also has low standby power consumption, resulting in very little battery discharge when the vehicle is not in use.

This new technology therefore allows the output power of the regulator to be increased up to 50 A, with excellent voltage regulation. Additional advantages such as reduced heating, high efficiency and advanced electronic control make this new regulator the first choice for monitoring your vehicle's battery circuit.
