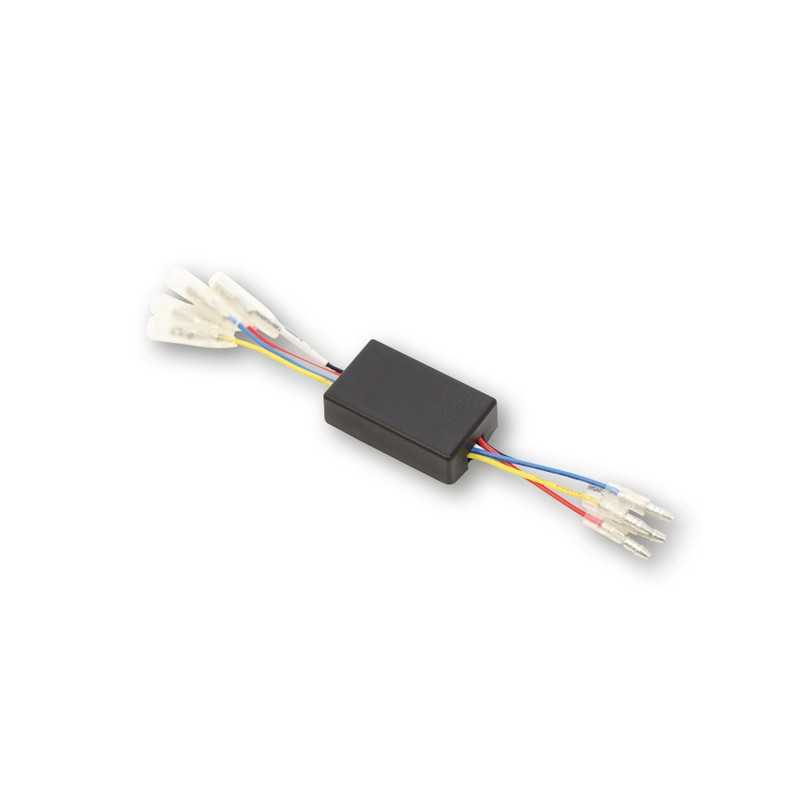

HIGHSIDER Electronic relay control box DRL CB1 1107969

HIGHSIDER DRL CONTROL- BOX CB1





Daytime running light control box for vehicles without light switch





By installing the DRL CONTROL- BOX CB1 is the correct circuit between daytime running light and the front lighting on the vehicle given. According to the regulations, the daytime running lights must be connected in such a way that they switch off automatically when the main headlights are switched on. Since the main headlight is always on in vehicles without a light switch, the daytime running light function would not be usable correctly. The BOX is suitable for LED and conventional headlights and is installed between the main headlight with integrated or separate daytime running light and the vehicles electrical system. The function of the parking light that is switched via the ignition lock when the vehicle is parked is fully functional.





Tailor-made for your bike - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.





DIMENSIONS


Length: 48 mm


Width: 28 mm


Height: 14 mm





Employment:


IN (vehicle electrics):


Yellow = high beam (+)


Blue = low beam (+) ON / OFF switch between


White = parking lights (+)


Red = ignition 15 (+)


Black = Ground (-)





OUT (headlights)


Yellow = high beam (+)


blue = dipped beam (+)


Black = Ground (-)





To the daytime running lights:


White = parking light (+)


Red = daytime running light (+)





Scope of supply:1 piece





Optional accessories:


Light switch On/Off





Note:


A separate ON and OFF switch for the DRL CONTROL-BOX is also required (not included).


The rear tail light must always remain switched on, i.e. set to ignition plus.





If it should happen with this product in connection with the TYPE 6 headlight that this does not switch daytime running lights after starting the engine, please proceed as follows:


Install the enclosed 120 Ohm resistor as indicated in the instructions. Now the headlight should also switch the daytime running light.





Tip:


An assembly tutorial is available on YouTube in our channel (HIGHSIDER Tips & Tricks). Link:


https://www.youtube.com/watch?v=XC85w-0orc8
