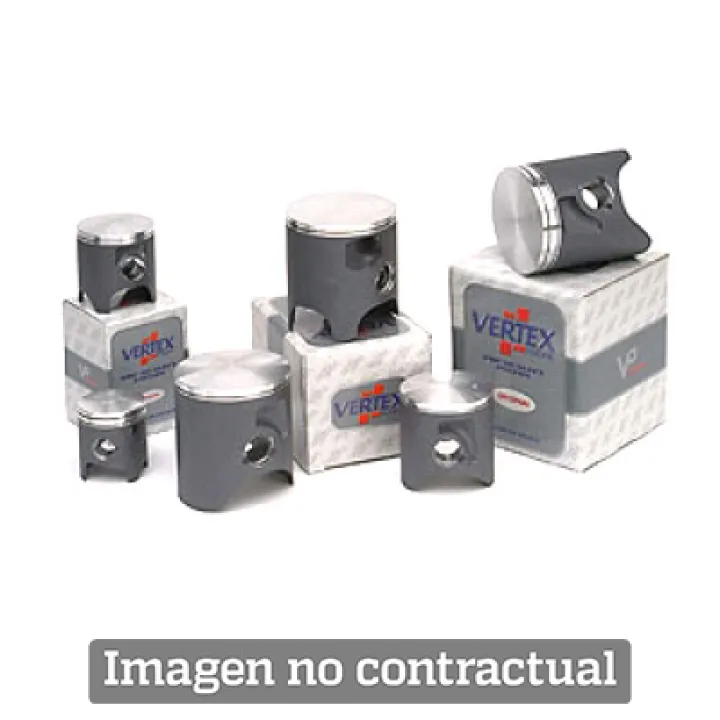

VERTEX Forged piston 95.97 MM B 251069DB

piston kit

Exact fit A, B or C pistons are perfectly matched to the cylinder bore to maximize power and performance while reducing exhaust fumes and oil consumption.

2-stroke pistons have an 18% silicon content which decreases wear and thermal expansion, allowing tighter operating tolerances for more power, less noise and longer life.

High-tech molybdenum disulfide (MOS2) skirt coating to reduce wear and improve rolling.

4-stroke pistons are forged from 2618 or 3032 alloys for strength and durability.

All piston kits include piston, rings, gudgeon pin and circlips.

Replica cast and forged pistons are original equipment replacements with original equipment compression ratios.

Racing forged and cast pistons are unique with a single compression ring.

Hi-Comp forged pistons increase compression and power over replica pistons.

GP Racers Choice Forged Pistons feature T-box forgings, unique dome profiles, surface treatments and higher compression ratios to produce more power, strength and durability.

Big Bore pistons increase displacement and power while maintaining original compression ratios.

piston types

2 stroke pistons

4 stroke pistons

PISTON TYPE: FORGED
PISTON COMPRESSION: STANDARD
DIAMETER Ø (MM): 95.97
STROKE: 4T
RINGS QUANTITY: SET
OVERSIZE LETTER: B
COMPOSITION: ALUMINUM
TOLERANCE: B
OVERSIZE: +0,01
CYLINDER DIAMETER (MM): 96.00
NUMBER OF SEGMENTS: SET
Type of motor: 4T
COMPOSITION: ALUMINUM
PISTON COMPRESSION: STANDARD
TOLERANCE: B
Type of motor: 4T
