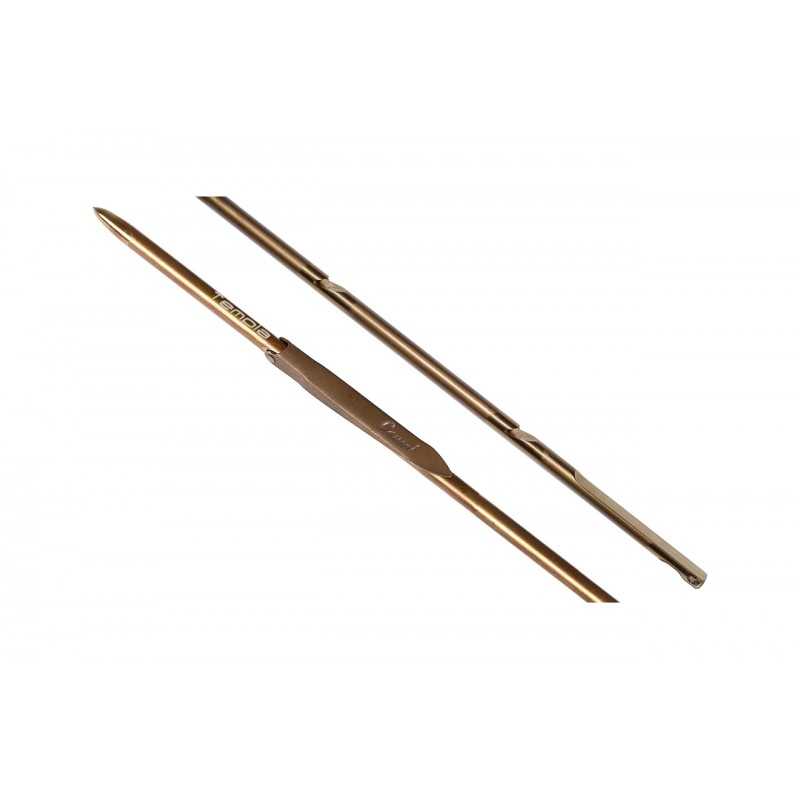

800x600 Normal 0 21 false false false ES X-NONE X-NONE MicrosoftInternetExplorer4 Made with very strict finishing parameters and dimensions for maximum adaptation to all types of mechanisms. Machining carried out with hard metal stainless tools to avoid contamination of the rod material and possible rust spots in the machined areas. AISI 630 steel tempered through a special long-lasting, low-temperature process that maintains a high elastic memory with a hardness level between 44 and 46 Rockwell. Very strict control process (rod by rod prior to machining) to check the perfect straightness of the rod. AISI 301 stainless steel spring winglet 0.8 mm thick. Mechanical resistance 1269 Nw/mm2 close to that of the rod itself. Pin and hole proportionate to the diameter of the rod between 2 and 2.5 mm. Length in proportion to the rod; 55 mm in sizes from 90 to 120 cm and 70 mm from 130 to 150 cm. Two-volume winglet, studied for maximum hydrodynamic penetration. Assembly with a slight recess of 1 cm in length that integrates the rivets into the profile and significantly improves the reach of the rod. The recess does not imply a decrease in resistance since the wing pin is proportioned according to the diameter of the rod. O-ring for sealing the standard winglet (red color). Reinforced wishbone socket with curved machining radius that makes it almost impossible for the rod to break through this traditionally weak point. Versatile design for metal and Dyneema shells (we recommend polishing the profiles with a steel cable). Its design, together with the parameters used for tempering, achieves an extraordinary resistance to breakage in the opening direction of the notch of 190 Nw and 40º of angle. Specially resistant and highly penetrating bullet-shaped tip. Available diameters: Ø6.25 mm, Ø6.50 mm and Ø6.70 mm. Measurements: 75, 90, 105, 110, 115, 120, 125, 130, 135, 140, 150 cm. (depending on version). Removable label indicating the model, size, diameter, technical details, reference and EAN.
