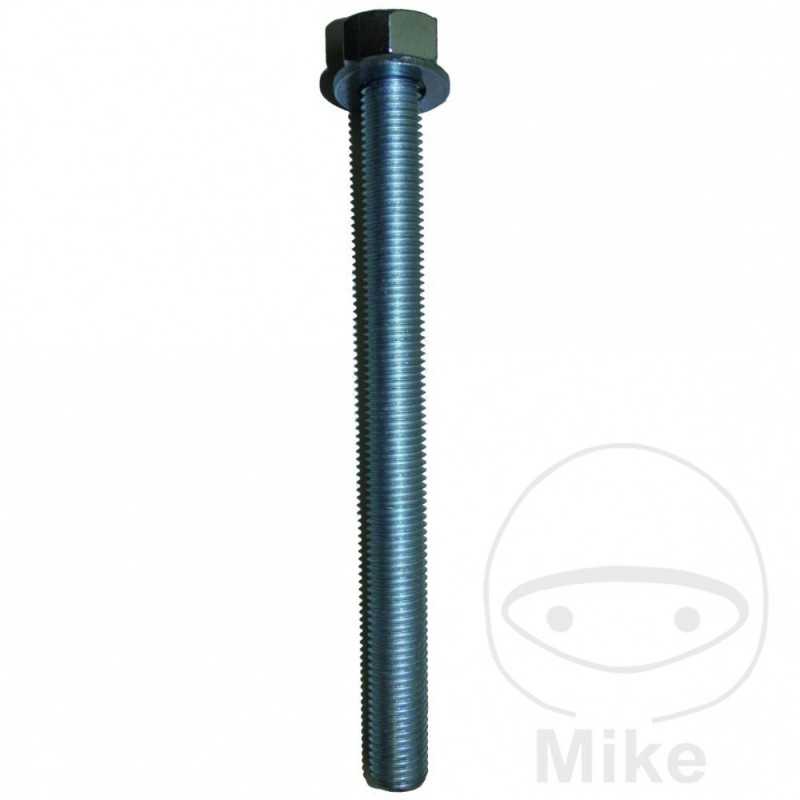

SIN MARCA anchor bar 16X175 16X175 486.04.25

Anchor bar MKT VMU-A16 x 175 5.8vz

The VMU injection system consists of an anchor bar with

with special conical elements and a

2-component injection mortar. This combination allows

subgrade loads at low wheelbases.

in the basement with small distances between wheels and axles. Thus, it combines the advantages of composite materials and

and special plugs in an approved fixing system for cracked and uncracked concrete.

and uncracked concrete.

Advantages

- A low thickness of the concrete components is necessary

- approved processing from -5° C substrate temperature

- You can choose the right diameter and the optimal anchoring depth

Optimum anchor diameter and depth can be selected from a variety of anchor rods

- maximum economic efficiency of fastening thanks to smaller anchors with less drilling

drilling effort

Application Examples

Anchoring of heavy loads in cracked and uncracked concrete,

e.g. steel constructions, corbels, facade constructions

Injection mortar: VMZ 345 (JM-No. 486.04.09)

Drill diameter mm: 16

Total length of the spike in mm: 175

Theme: M16

Drill hole depth: 157mm

Required anchorage depth in the concrete mm: 110
