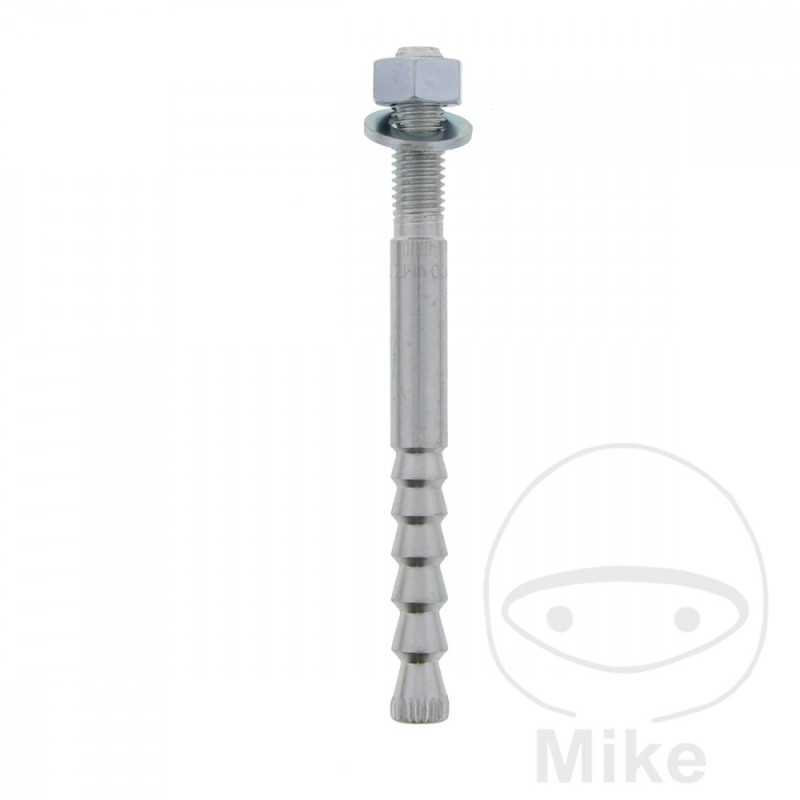

Anchor bar VMZ- A 100 M12- 25/145

The VMZ injection system consists of an anchor rod with conical expansion elements and a

2-component injection mortar. This combination makes it possible to install large loads with small

edge and axial distances in the subsoil. Thus, it combines the advantages of

and expansion anchors in an approved fixing system for cracked and uncracked concrete.

uncracked concrete.

Advantages

- A low thickness of the concrete components is necessary

- approved processing from -5° C substrate temperature

- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.

anchorage depth can be selected

- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort

Application Examples

Anchoring of heavy loads in cracked and uncracked concrete,

for example, steel structures, corbels, facade construction.

Injection mortar: VMZ 345 (JM-No. 4860409)

Drill diameter mm: 14

Total length of the spike in mm: 145

Thread: M12x36

Drill hole depth mm: 105

required anchoring depth in concrete mm: 100

thickness max. component clamping mm:
