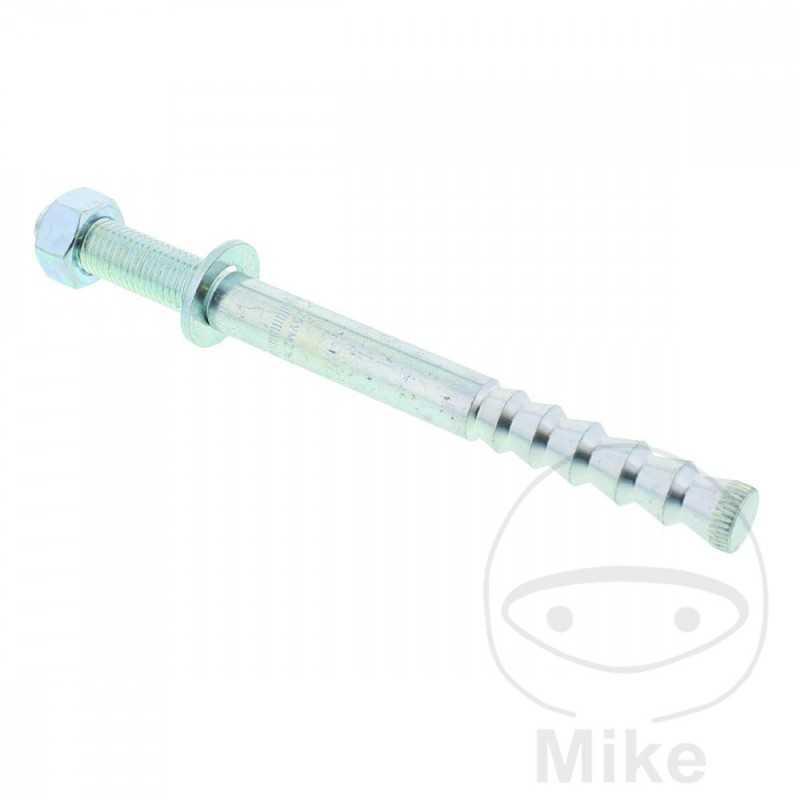

SIN MARCA anchor bar M16-30/160 VMZ-A 105 M16-30/160 M16-30/160 VMZ-A 105 M16-30/160 486.00.02
€18.25
Tax included
Anchor bar VMZ- A 105 M16- 30/160
The VMZ injection system consists of an anchor rod with conical expansion elements and a
2-component injection mortar. This combination makes it possible to install large loads with small
edge and center distances in the subsurface. Thus, it combines the advantages of
and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 4860409)
Drill diameter mm: 18
Total length of the spike in mm: 160
Thread: M16x44
Drill hole depth mm: 115
required anchoring depth in concrete mm: 105
thickness max. component clamping mm:
The VMZ injection system consists of an anchor rod with conical expansion elements and a
2-component injection mortar. This combination makes it possible to install large loads with small
edge and center distances in the subsurface. Thus, it combines the advantages of
and expansion anchors in an approved fixing system for cracked and uncracked concrete.
uncracked concrete.
Advantages
- A low thickness of the concrete components is necessary
- approved processing from -5° C substrate temperature
- The proper diameter and optimum anchorage depth can be selected from a variety of anchor rods.
anchorage depth can be selected
- highest possible economic efficiency of the anchor thanks to smaller anchors with less drilling effort
Application Examples
Anchoring of heavy loads in cracked and uncracked concrete,
for example, steel structures, corbels, facade construction.
Injection mortar: VMZ 345 (JM-No. 4860409)
Drill diameter mm: 18
Total length of the spike in mm: 160
Thread: M16x44
Drill hole depth mm: 115
required anchoring depth in concrete mm: 105
thickness max. component clamping mm:
486.00.02
