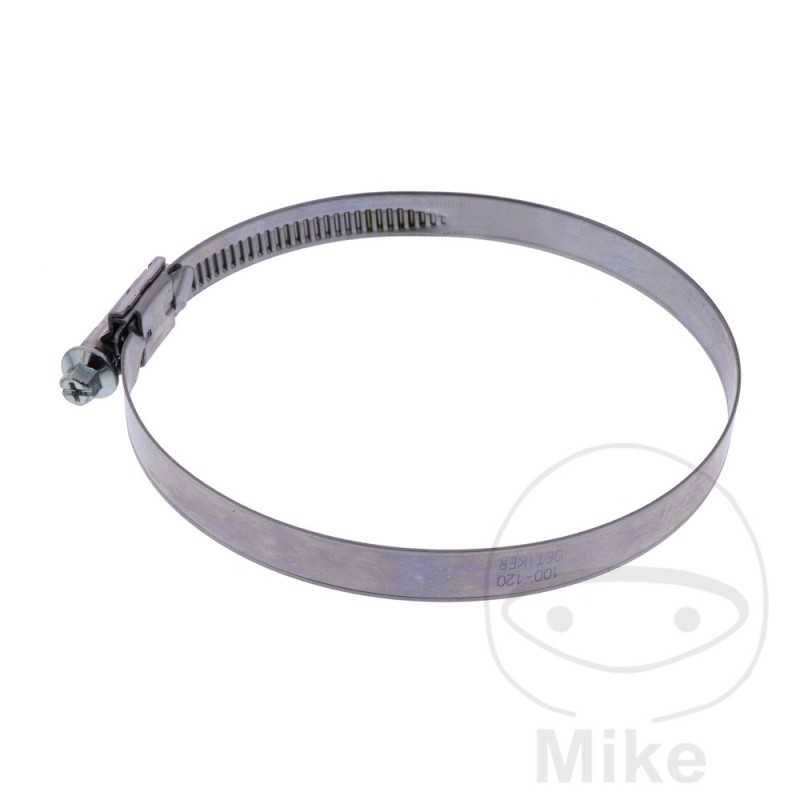

Oetiker W2 Worm Drive Clamp (Type 126)

Band and housing made of stainless steel, hexagonal screw (SW7) with cross slot (Phillips) made of galvanized steel

Technically sophisticated multi-range hose clamp with a very large clamping range

According to DIN 3017: proven clamping band, wide clamping range, high clamping forces

Short shell seat ensures even force distribution with a good seal

A solderless shell connection for a secure connection and good corrosion resistance

Flanged belt edges reduce the risk of damage to the part being tied

Made by cold forming, it has a slightly convex shape.

The height of the turns of the thread decreases on both sides, the entire cross section of the thread is in the middle

Diameter range: 100 - 120 mm

Band Width: 12mm

Band thickness: 0.7mm

Material: 126 W2, material no. 1.4016 / UNS S43000

Reference No.: WD12 100-120 C7 W2

Screw head profile: hexagonal cross recess

Cardboard unit: 75
TYPE: SCREW CLAMPS
MIN. CLAMPING RANGE: 100.0 MM
MAX CLAMPING RANGE: 120.0 MM
WIDTH: 12.0MM
MATERIAL: STAINLESS STEEL
