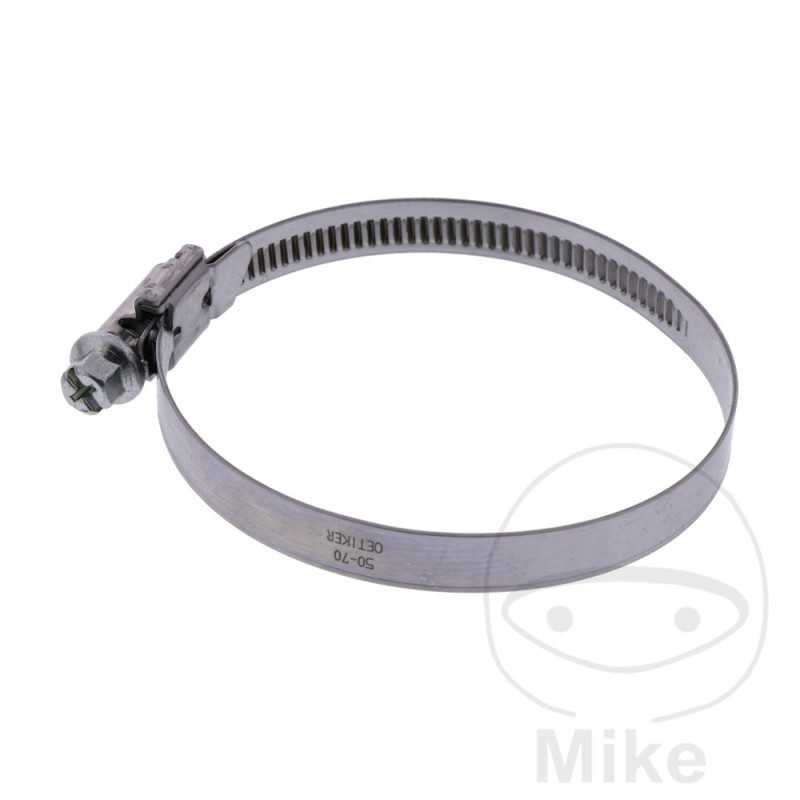

OETIKER screw hose clamp Ø 50 - 70 MM WD9 MM 467.95.10

Oetiker W2 Worm Drive Clamp (Type 126)

Band and housing made of stainless steel, hexagonal screw (SW7) with cross slot (Phillips) made of galvanized steel

Technically sophisticated multi-range hose clamp with a very large clamping range

According to DIN 3017: proven clamping band, wide clamping range, high clamping forces

Short shell seat ensures even force distribution with a good seal

A solderless shell connection for a secure connection and good corrosion resistance

Flanged belt edges reduce the risk of damage to the part being tied

Made by cold forming, it has a slightly convex shape.

The height of the turns of the thread decreases on both sides, the entire cross section of the thread is in the middle

Diameter range: 50 - 70 mm

Band Width: 9mm

Band thickness: 0.6mm

Material: 126 W2, material no. 1.4016 / UNS S43000

Reference No.: WD9 50-70 C7 W2

Screw head profile: hexagonal cross recess

Carton unit: 100
TYPE: SCREW CLAMPS
MIN. CLAMPING RANGE: 50.0 MM
MAX CLAMPING RANGE: 70.0 MM
WIDTH: 9.0MM
MATERIAL: STAINLESS STEEL
