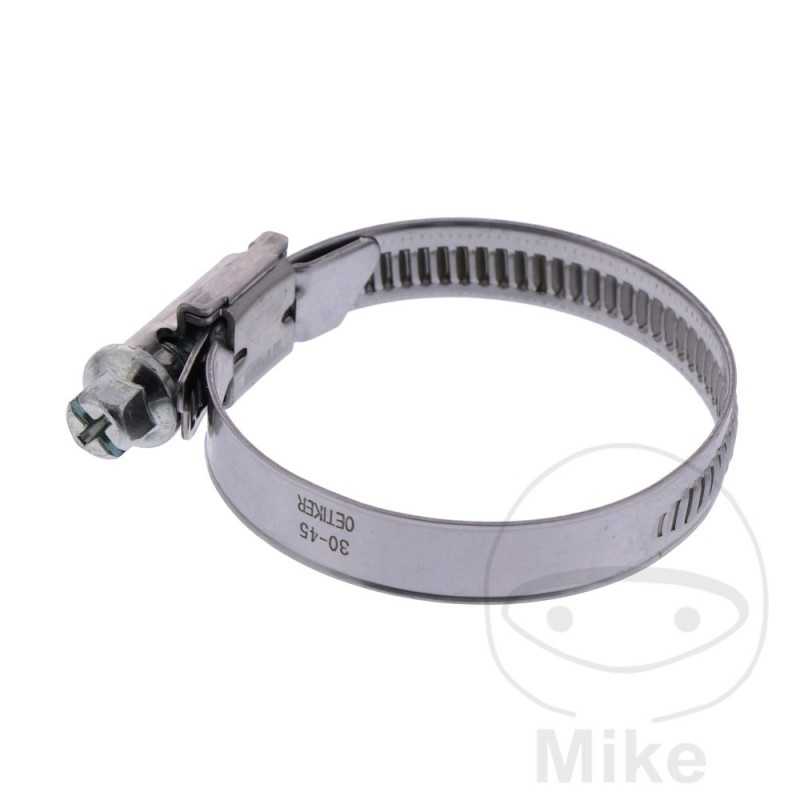

Band and housing made of stainless steel, hexagonal screw (SW7) with cross slot (Phillips) made of galvanized steel
Technically sophisticated multi-range hose clamp with a very large clamping range
According to DIN 3017: proven clamping band, wide clamping range, high clamping forces
Short shell seat ensures even force distribution with a good seal
A solderless shell connection for a secure connection and good corrosion resistance
Flanged belt edges reduce the risk of damage to the part being tied
Made by cold forming, it has a slightly convex shape.
The height of the turns of the thread decreases on both sides, the entire cross section of the thread is in the middle
Diameter range: 30 - 45mm
Band Width: 9mm
Band thickness: 0.6mm
Material: 126 W2, material no. 1.4016 / UNS S43000
Reference number: WD9 30-45 C7 W2
Screw head profile: hexagonal cross recess TYPE: SCREW CLAMPS MIN. CLAMPING RANGE: 30.0 MM MAX CLAMPING RANGE: 45.0 MM WIDTH: 9.0MM MATERIAL: STAINLESS STEEL
