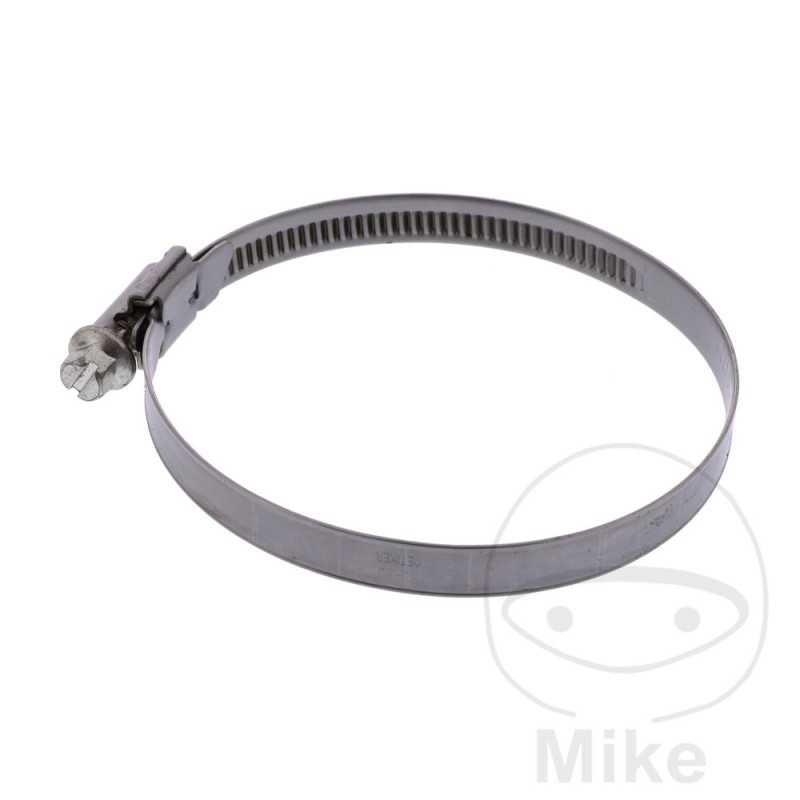

Oetiker W4 Worm Drive Clamp (Type 177)

Material: 177 W4 = all parts made of stainless steel (material no. 1.4301 / UNS S30400)

Diameter range: 60.0 - 80.0 mm

Band Width: 9mm

Band thickness: 0.6mm

Screw Head Profile: Hex Slot

Large clamping range

Embossed Headband - Non Perforated

Complies with DIN 3017

Specially shaped strap edges reduce the risk of damage to the piece being strapped

Application-oriented choice of material

Short shell saddle: even distribution of force with better sealing

Stable, solderless housing connection

Carton unit: 100
TYPE: SCREW CLAMPS
MIN. CLAMPING RANGE: 60.0 MM
MAX CLAMPING RANGE: 80.0 MM
WIDTH: 9.0MM
MATERIAL: STAINLESS STEEL
