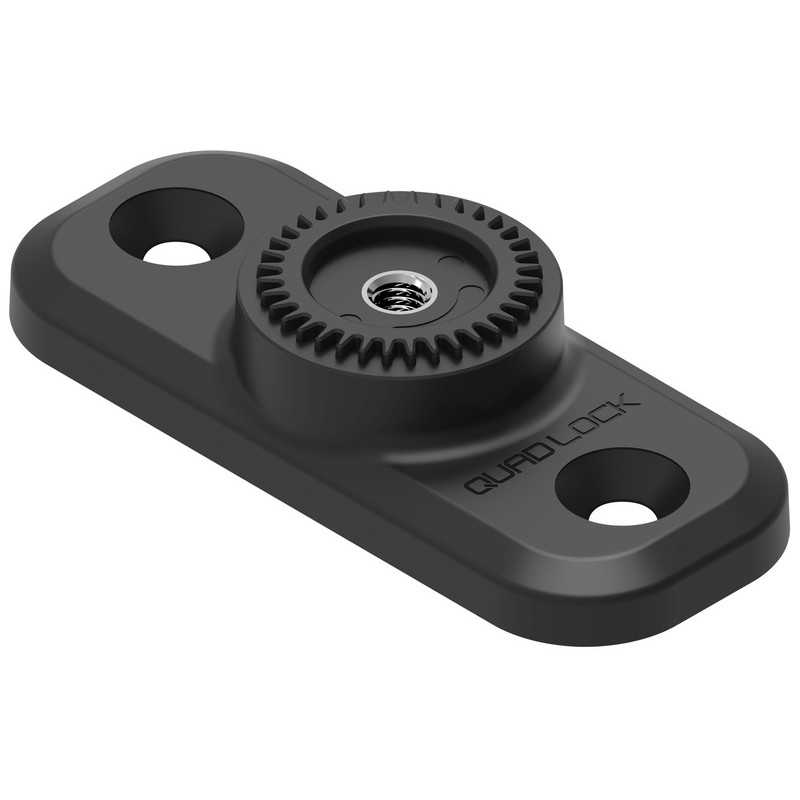

QUAD LOCK 2-hole rectangular base 360 1118123

Attach your stand to flat surfaces with one of our rectangular bases with flat holes.

Choose from a 2 or 4 hole base.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the AMPs universal hole spacing standard and the holes accept 10G or M5 countersunk fixings.

A 10mm spacer and two screws are provided to connect the spacer to a Quad Lock 360 head or arm.

The two rectangular bases are made of high-strength nylon and use the AMPs universal hole spacing standard.

Holes accept 10G or M5 countersunk fixings.

2-hole base

68.5mm (2.7") long x 28mm (1.1") wide x 14mm (0.55") high.

AMPS Hole Pitch: 48.5mm (1.9")

1 x 2 Hole Rectangular Flat Base

1 spacer 10mm (3/8")

1 M5x30 screw (to connect the spacer to the lever head or 360 arm)

1 x M5x45 screw (to connect the spacer to the waterproof wireless charging head)
COMPONENT: BASE
