HIGHSIDER HEADLIGHT SUPPORT CNC BOTTOM TYPE 2 1108596001VAR

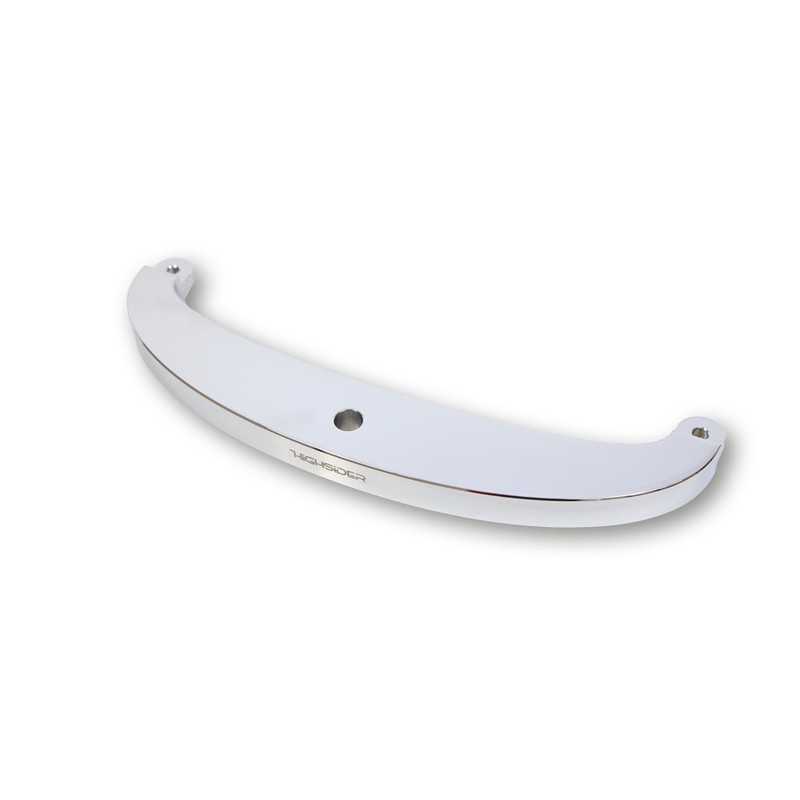

HIGHSIDER CNC aluminium headlight holder BOTTOM TYP2 CNC-milled holder made of aluminium for mounting headlights with lower mounting. Bore for fixing the headlight max. M 10. Suitable for forks with a width of 205 mm to 245 mm (measured from the centre of the fork standpipe to the centre of the fork standpipe). The exact width is adjusted by changing the mounting angle on the bracket using the additional standpipe clamps required. Precisely matched the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes. Holder dimensions: Overall width: 240 mm Width: 225 mm (from attachment to attachment) Depth: 37 mm Height: 15 mm Scope of supply: 1 piece Note: In addition, you will need HIGHSIDERs specially manufactured standpipe clamps (supplied as a pair) for the following standpipe diameters: Artnr. 207-403 = 35 mm - 37 mm o. 207-405 = 38 mm - 41 mm o. 207-409 = 42 mm - 43 mm o. 207-419 = 50 mm, 52 mm, 54 mm

COMPOSICIÓN: ALUMINIO
EMBALAJE: POR UNIDAD
COLOR: CROMO
POSITION: FORWARD
WIDTH (MM): 240
LONGITUD (MM): 15
