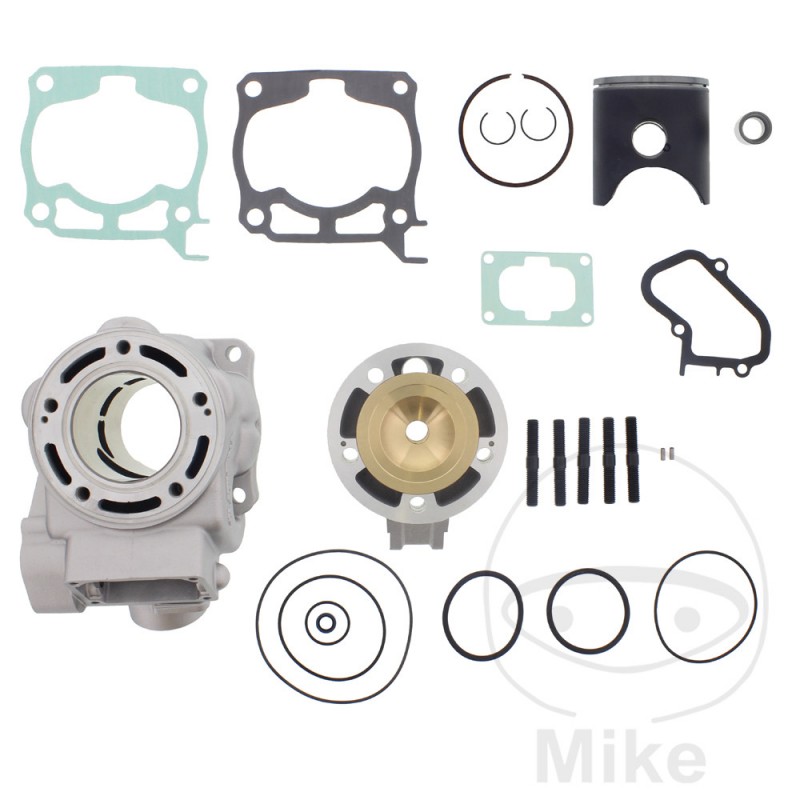

ATHENA Standard cylinder kit 125CC 756.01.92

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most advanced technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Characteristic:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured using CNC machines (thousandths of tolerances can therefore be guaranteed in all production phases)

- Revised water channels to increase capacity

- The cylinder liners are made of a special silicon carbide and nickel compound to ensure the best piston and cylinder life.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and the cylinder.

- Cylinder surfaces are perfectly flat to eliminate any inaccuracies of fit

Technical information:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 54mm.

Stroke: 54.5mm

Displacement: 124.82cc

Compaction: 14.8: 1

Piston Pin Diameter: 15mm.

Number of overflow channels: 5

Piston crown shape: flat

Number of piston rings: 1

Upper Piston Ring Thickness: 1mm.

Piston Ring Type: Chrome

Membrane material: not included

Outlet: divided in two

stock: included

Maximum power at the crankshaft: 34 HP / 11,000 RPM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZ 125 1cil. CE16C 1SR6 Bastidores: CE16C henceforth20937-- 2013
Yamaha YZ 125 1cil. CE16C 1SRA Bastidores: CE16C henceforth22368-- 2014
Yamaha YZ 125 1cil. CE16C 1SRE Bastidores: CE16C henceforth02447-- 2015
Yamaha YZ 125 1cil. CE16C 1SRJ Bastidores: CE16C henceforth27164-- 2016
Yamaha YZ 125 1cil. CE16C 1SRN Bastidores: CE16C henceforth29632-- 2017
Yamaha YZ 125 1cil. CE16C 1SRT Bastidores: CE16C henceforth33073-- 2018
Yamaha YZ 125 1cil. CE16C B0V2 Bastidores: CE16C henceforth36983-- 2019
Yamaha YZ 125 1cil. CE16C B0V6 Bastidores: CE16C henceforth40775-- 2020
Yamaha YZ 125 1cil. CE16C B0VB Bastidores: CE16C henceforth44002-- 2021
Yamaha YZ 125 39 CV, 29 kw 1cil. CE15C 1C32 Bastidores: CE15C henceforth00348-- 2005
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C36 Bastidores: CE16C henceforth00284-- 2006
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3A Bastidores: CE16C henceforth07439-- 2007
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3E Bastidores: CE16C henceforth10244-- 2008
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3J Bastidores: CE16C henceforth13131-- 2009
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3N Bastidores: CE16C henceforth15372-- 2010
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3T Bastidores: CE16C henceforth16971-- 2011
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1SR2 Bastidores: CE16C henceforth19022-- 2012
