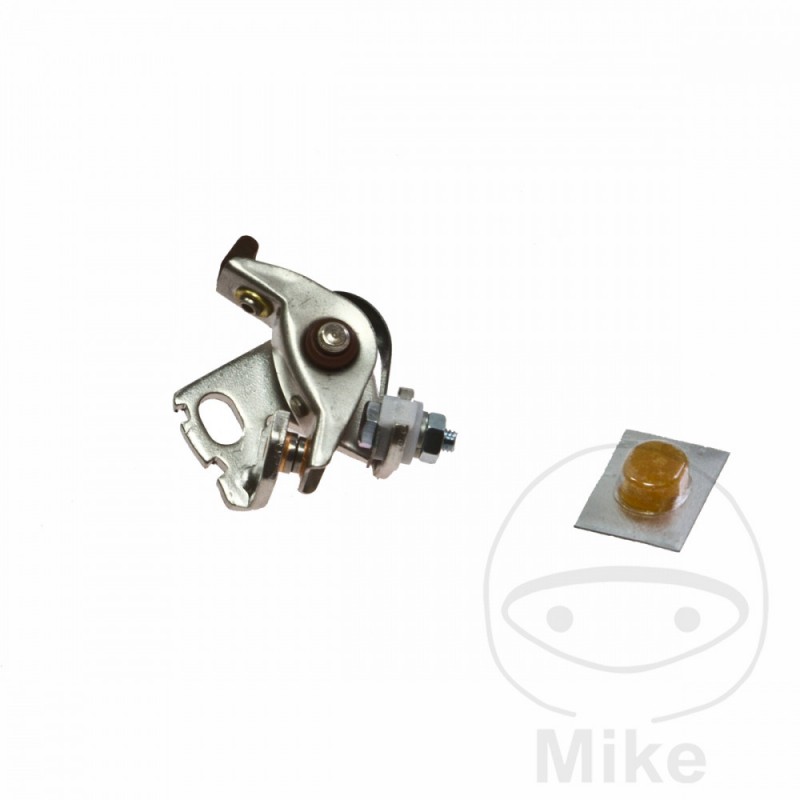

BOSCH Platinum ignition contact kit 704.83.09

ignition contact kit

For Bosch 34W ignition systems with flashing system. On Kreidler MF 12, MF 13 and MF 23 models with Bosch 17W ignition system.

Also suitable for Bosch 24W ignition systems without turn signals.

Suitable for the following Zündapp models:

446-300 (ZD40) of Mot. Nos. 9514943 to 9746645,

446-301 (ZD40) from Mot# 9805829,

446-400 (ZD20) of Mot.No. 9508775 to 9746645,

446-401 (ZD20) of Mot. No.9796586 to 9857616,

446-420 (ZD25) of Mot. No. 9652306 to 9746645,

446-422 (ZD50) of Mot.No.: 9746646 to 9796585,

446-422 (ZD50) of Mot. No.9796586 to 9857616,

448-010 (CS50) from Mot # 9779369 to 9990971,

448-111 (CS50) from Mot # 9779369 to 9990971,

448-013 (CS50) of Mot.Nr. 9863008 to 9990971,

448-110 (Hai50) of Mot.No.: 9835857 to 9990971,

448-111 (Hai50) from Mot.No.9835857 to 9990971,

448-140 (CS25) of Mot.Nr.9845695 to 9990971,

448-150 (Hai25) from Mot.No9845705 to 9990971,

460-010 (ZX25) from Mot.Nr.9799745 to 9933152 for the Bosch 19W ignition system,

460-013 (ZX25) from engine no. 9916911 to 9933152 for the Bosch 19W ignition system,

460-040 (ZL25) from engine no. # 9850437 to 1001806 with Bosch 34W ignition system,

460-041 (ZL25) from engine no. 9493617 to 10011806 with 34W Bosch ignition system,

460-050 (ZS25) from engine no. # 9415479 to 1001806 with Bosch 34W ignition system,

460-090 (ZE40) from engine no. 9956291 to 1001806 with Bosch 34W ignition system,

529-010 (C50) of engine no. # 9500625 with Bosch 24W ignition system,

529-020 (GTS50) of engine no. # 9500625 with Bosch 24W ignition system,

529-022 (GTS50) of engine no. #9537605 with 34W Bosch ignition system,

529-023 (GTS50) from Mot.Nr.9537605 with Bosch 34W ignition system,

529-024 (GTS50) of engine no. #9537605 with 34W Bosch ignition system,

529-026 (GTS50) of engine no. #9537605 with 34W Bosch ignition system,

529-028 (GTS50) from Mot.Nr.9537605 with Bosch 34W ignition system,

529-029 (GTS50) of engine no. #9537605 with 34W Bosch ignition system,

561-051 (R50) of Mot. No. 9671170


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Hercules HR1 25 Hobby Rider automática 1,5 CV, 1,1 kw 1cil. - HR1/631 Bastidores: --- 1972-1975
Hercules HR2 25 Hobby Rider 2-marchas 1,5 CV, 1,1 kw 1cil. - HR2-633 Bastidores: --- 1974-1979
Hercules M5 25 2-marchas 1,5 CV, 1,1 kw 1cil. - M5-634 Bastidores: --- 1974-1979
Hercules MF3 25 2-marchas 1,5 CV, 1,1 kw 1cil. - MF3-629 Bastidores: --- 1970-1974
Hercules MK1 50 S 3-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1977-1979
Hercules MK2 50 S 4-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1977-1979
Hercules MK3 50 M 3-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1973-1974
Hercules MK3 50 X 3-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1970-1972
Hercules MK4 50 M 4-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1973-1974
Hercules MK4 50 X 4-marchas 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 1970-1972
Hercules MP2 50 2-marchas 2,6 CV, 1,9 kw 1cil. - MP2-630 Bastidores: --- 1970
Hercules MP4 50 3-marchas 2,6 CV, 1,9 kw 1cil. - MP4-632 Bastidores: --- 1972
Hercules Optima 50 3 2-marchas 2,5 CV, 1,8 kw 1cil. - Bastidores: --- 1979-1980
Hercules Optima 50 3S 2-marchas 2,5 CV, 1,8 kw 1cil. 513 Bastidores: --- 1986-1988
Hercules Optima 50 3S 2-marchas 2,5 CV, 1,8 kw 1cil. 515 Bastidores: --- 1980-1986
Hercules P3 50 2-marchas 2,5 CV, 1,8 kw 1cil. - P3-513 Bastidores: --- 1974-1979
Hercules Prima 25 4 automática 1,5 CV, 1,1 kw 1cil. 511 025 511 Bastidores: --- 1980
Hercules Prima 25 4N automática 1,5 CV, 1,1 kw 1cil. 511 021 511 Bastidores: --- 1980
Hercules Prima 25 4S automática 1,5 CV, 1,1 kw 1cil. 511 023 511 Bastidores: --- 1980
Hercules Prima 25 5 2-marchas 1,5 CV, 1,1 kw 1cil. - Bastidores: --- 1980
Hercules Prima 25 5 2-marchas 1,5 CV, 1,1 kw 1cil. - 634 Bastidores: --- 1993-1994
Hercules Prima 25 5N 2-marchas 1,5 CV, 1,1 kw 1cil. 634 015 634 Bastidores: --- 1980
Hercules Prima 25 6 2-marchas 1,5 CV, 1,1 kw 1cil. - M6-635 Bastidores: --- 1979-1981
Hercules Prima 25 G3 3-marchas 1,6 CV, 1,1 kw 1cil. - G3 Bastidores: --- 1978
Hercules Prima 25 S automática 1,5 CV, 1,1 kw 1cil. - S-601 Bastidores: --- 1979
Kreidler Florett 50 LF marcha pedal 2,9 CV, 2 kw 1cil. K54/307 Bastidores: 3 101 015-- 1976-1977
Kreidler Florett 50 LF marcha pedal 2,9 CV, 2 kw 1cil. K54/32D Bastidores: 3 085 103-- 1972-1974
Kreidler Florett 50 LF-F marcha pedal 2,9 CV, 2 kw 1cil. K54/319 Bastidores: 3 101 653-- 1977-1979
Kreidler Florett 50 LH cambio de marchas con la mano 2,9 CV, 2 kw 1cil. K54/307 Bastidores: 3 101 015-- 1976-1977
Kreidler Florett 50 LH cambio de marchas con la mano 2,9 CV, 2 kw 1cil. K54/32D Bastidores: 3 443 151-- 1970-1972
Kreidler Florett 50 LH cambio de marchas con la mano 2,9 CV, 2 kw 1cil. K54/32D Bastidores: 34 45 601-- 1972-1974
Kreidler Florett 50 RM 2,9 CV, 2 kw 1cil. K54/404 Bastidores: --- 1976
Kreidler Florett 50 RM 2,9 CV, 2 kw 1cil. K54/42D Bastidores: --- 1975
Kreidler Florett 50 RMC 2,9 CV, 2 kw 1cil. K54/404 Bastidores: --- 1975
Kreidler Florett 50 RMC 2,9 CV, 2 kw 1cil. K54/421 Bastidores: --- 1977-1982
Kreidler Florett 50 RMC-B 2,9 CV, 2 kw 1cil. K54/421 Bastidores: --- 1977
Kreidler Florett 50 RMC-F 2,9 CV, 2 kw 1cil. - Bastidores: --- 1969-1971
Kreidler Flory 25 MF12 3-marchas 1,5 CV, 1,1 kw 1cil. MF12 Bastidores: 2 800 001-- 1976-1978
Kreidler Flory 25 MF13 3-marchas 1,5 CV, 1,1 kw 1cil. MF13 Bastidores: 2 800 001-- 1976-1978
Kreidler Flory 25 MF20 2-marchas 1,5 CV, 1,1 kw 1cil. MF20 Bastidores: 2 610 001-- 1980
Kreidler Flory 25 MF22 2-marchas 1,5 CV, 1,1 kw 1cil. MF22 Bastidores: 2 610 001-- 1978-1982
Kreidler Flory 25 MF23 3-marchas 1,5 CV, 1,1 kw 1cil. MF23 Bastidores: 2 820 765-- 1977-1982
Puch Monza 50 4 S 2,8 CV, 2 kw 1cil. - Bastidores: --- 1976-1978
Puch Monza 50 4 S carenado manillar 2,8 CV, 2 kw 1cil. - Bastidores: --- 1979-1981
Puch Monza 50 4 SL 2,8 CV, 2 kw 1cil. - Bastidores: --- 1976-1978
Puch X 40 25 1cil. - Bastidores: --- 1978-1980
Puch X 50 2 25 llanta de fundición 1cil. - Bastidores: --- 1986
Puch X 50 2 25 llanta de radios 1cil. - Bastidores: --- 1986
Puch X 50 3 50 1cil. - Bastidores: --- 1986
Puch X 50 4 50 S 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 1986
Sachs Prima 25 5 2-marchas 1,6 CV, 1,2 kw 1cil. - Bastidores: --- 1996-2004
Zündapp C 50 Sport 2,9 CV, 2,1 kw 1cil. - 529 henceforth10 Bastidores: 9 020 005-9 225 037 1976-1978
Zündapp CS 25 1,4 CV, 1 kw 1cil. - 448-140 Bastidores: 9 347 047-- 1980-1982
Zündapp CS 50 2,9 CV, 2,1 kw 1cil. - 448 henceforth10 Bastidores: 9 284 994-- 1979-1980
Zündapp CS 50 2,9 CV, 2,1 kw 1cil. - 448 henceforth11 Bastidores: 9 335 990-- 1980
Zündapp CS 50 2,9 CV, 2,1 kw 1cil. - 448 henceforth13 Bastidores: 9 362 212-- 1980
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth20 Bastidores: 9 020 003-9 057 059 1976-1977
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth22 Bastidores: 9 057 059-9 137 484 1977-1978
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth23 Bastidores: 9 137 485-9 195 816 1978
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth24 Bastidores: 9 195 817-9 272 008 1978
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth26 Bastidores: 9 272 730-9 272 041 1979-1982
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth28 Bastidores: 9 316 042-9 362 762 1980
Zündapp GTS 50 2,9 CV, 2,1 kw 1cil. - 529 henceforth29 Bastidores: 9 362 763-- 1980
Zündapp Hai 25 25 1,4 CV, 1 kw 1cil. - 448-150 Bastidores: 9 347 084-- 1980-1982
Zündapp Hai 50 50 3,4 CV, 2,5 kw 1cil. - 448-110 Bastidores: 9 338 495-- 1980
Zündapp Hai 50 50 3,4 CV, 2,5 kw 1cil. - 448-111 Bastidores: 9 368 284-- 1980-1981
Zündapp M 25 1,5 CV, 1,1 kw 1cil. - 434 henceforth2 L1 Bastidores: 1 420 005-- 1966
Zündapp M 50 Bergsteiger 2,5 CV, 1,84 kw 1cil. - 434 henceforth1 LO Bastidores: 1 420 005-- 1965
Zündapp R 50 2,9 CV, 2,1 kw 1cil. - 561 henceforth51 Bastidores: --- 1982-1984
Zündapp ZD 20 25 1,5 CV, 1,1 kw 1cil. - 446-400 Bastidores: 9 030 749-9 255 042 1976-1979
Zündapp ZD 20 25 1,5 CV, 1,1 kw 1cil. - 446-401 Bastidores: 9 302 304-9 357 271 1979-1980
Zündapp ZD 25 25 TS 1,4 CV, 1 kw 1cil. - 446-420 Bastidores: 9 165 722-9 255 042 1978-1979
Zündapp ZD 40 50 2,9 CV, 2,1 kw 1cil. - 446-300 Bastidores: 9 039 499-9 255 042 1976-1979
Zündapp ZD 40 50 2,9 CV, 2,1 kw 1cil. - 446-301 Bastidores: 9 311 594-- 1980-1981
Zündapp ZD 50 25 TS 1,4 CV, 1 kw 1cil. - 446-422 Bastidores: 9 255 044-9 305 345 1979-1980
Zündapp ZE 40 50 2,7 CV, 2 kw 1cil. - 460 henceforth90 Bastidores: 9 450 532-- 1981-1982
Zündapp ZL 25 25 1,4 CV, 1 kw 1cil. - 460 henceforth40 Bastidores: 9 361 366-9 415 478 1980-1981
Zündapp ZL 25 25 1,4 CV, 1 kw 1cil. - 460 henceforth41 Bastidores: 9 493 614-- 1983
Zündapp ZS 25 25 1,7 CV, 1,25 kw 1cil. - 460 henceforth50 Bastidores: 9 415 479-- 1981-1982
Zündapp ZX 25 25 1,4 CV, 1 kw 1cil. - 460 henceforth13 Bastidores: 9 413 139-- 1981-1982
