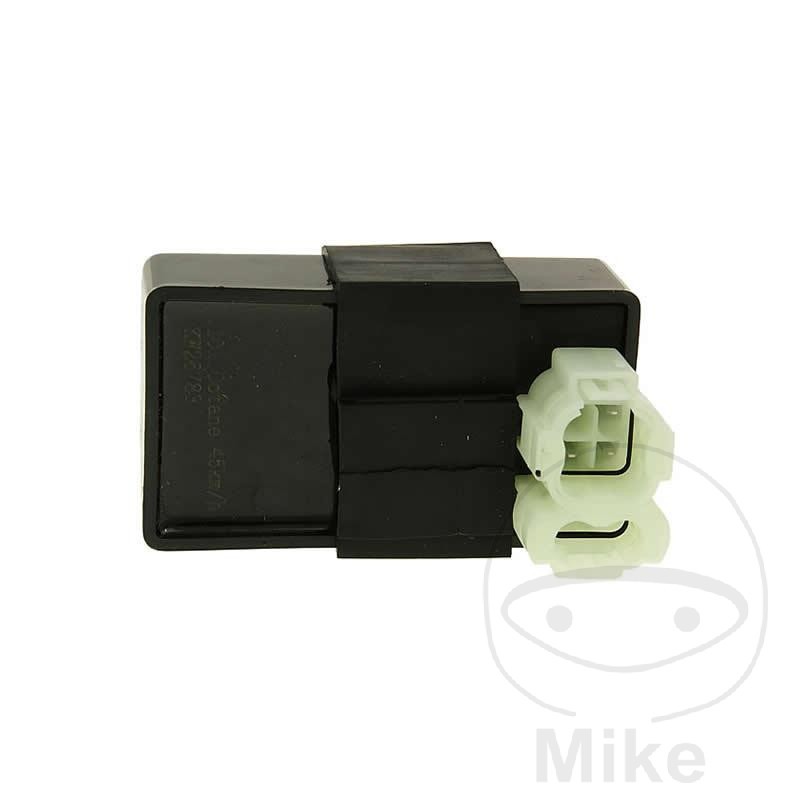

electronic control unit CDI DC 45 KM/H 700.18.65

Choked 45km/h CDI replacement

This is a DC CDI

Note: Whether an AC or DC CDI is installed can be determined as follows.

Disconnect the battery

turn on the ignition

get started with Kickstarter

If the scooter starts, an AC CDI is installed.

If the scooter does not start, a DC CDI is installed.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Benelli X 49 50 DD Quattro NoveX 2,7 CV, 2 kw 1cil. XJ000 Bastidores: --- 2014-2015
Benelli X 49 50 DD Quattro NoveX 2,7 CV, 2 kw 1cil. XJ002 Bastidores: --- 2011-2013
Benelli X 49 50 DT Quattro NoveX 2,7 CV, 2 kw 1cil. XJ000 Bastidores: --- 2008-2015
Explorer Kallio 50 2T 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2012-2013
Explorer Race GT 50 2T 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2008-2013
Keeway RY6 25 1,7 CV, 1,24 kw 1cil. SRY6005000 Bastidores: --- 2010-2015
Keeway RY6 25 2,45 CV, 1,8 kw 1cil. - Bastidores: --- 2016-2018
Keeway RY6 50 3,6 CV, 2,6 kw 1cil. - Bastidores: --- 2016-2018
Keeway RY6 50 3,6 CV, 2,6 kw 1cil. SRY6005000 Bastidores: --- 2010-2015
KSR-Moto Explorer Kallio 50 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2012-2013
KSR-Moto Explorer Race GT 50 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2008-2013
