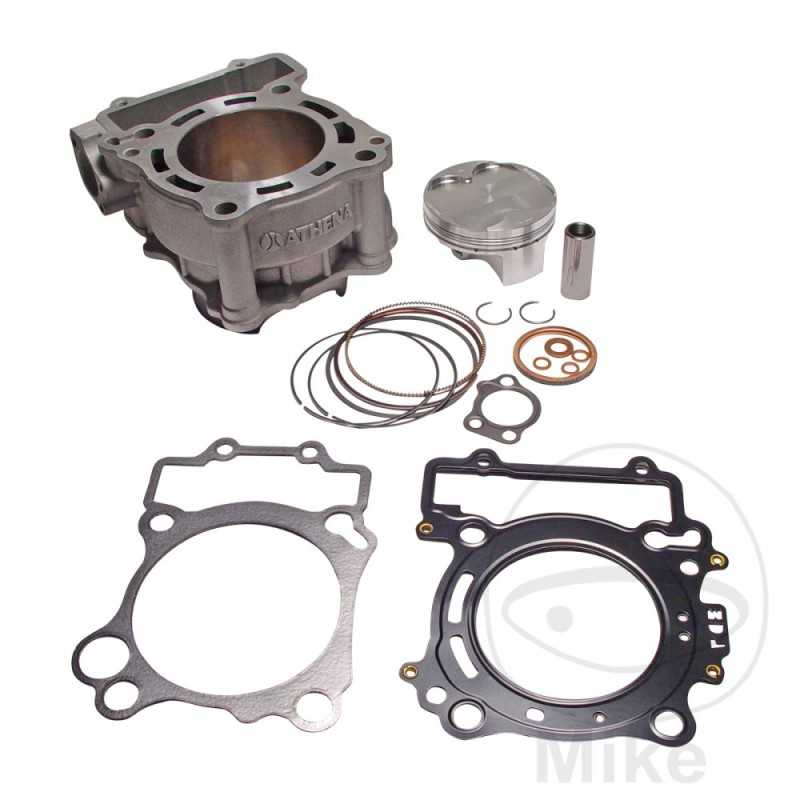

ATHENA Complete standard cylinder kit 250CC 756.00.59

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the manufacture of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through collaboration with the best Italian universities and constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- The cylinder liners consist of a special mixture of silicon carbide and nickel to ensure the best piston running performance and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- Cylinder surfaces are completely flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 77mm.

Stroke: 53.6mm

Displacement: 249.6cc

Compression: 11.8:1

Piston Pin Diameter: 17mm.

Number of piston rings: 3

Upper Piston Ring Thickness: 0.9mm

Second Piston Ring Thickness: 0.8mm

Oil Ring Thickness: 1.5mm

Stock: not included in the scope of delivery

Maximum output at crankshaft: 24.8 HP / 9,000 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32D1 Bastidores: DG201 henceforth00301-- 2008
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32D5 Bastidores: DG201 henceforth03118-- 2009
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DB Bastidores: DG201 henceforth03634-- 2010
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DF Bastidores: DG201 henceforth03912-- 2011
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DH Bastidores: DG201 henceforth04047-- 2012
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DN Bastidores: DG201 henceforth04258-- 2013
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DT Bastidores: DG201 henceforth04517-- 2014
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 32DW Bastidores: DG201 henceforth04861-- 2015
Yamaha WR 250 R 30,7 CV, 22,6 kw 1cil. DG201 BN32 Bastidores: DG201 henceforth05363-- 2016
Yamaha WR 250 X 30,7 CV, 22,6 kw 1cil. DG202 32D2 Bastidores: DG202 henceforth00301-- 2008
Yamaha WR 250 X 30,7 CV, 22,6 kw 1cil. DG202 32D6 Bastidores: DG202 henceforth02428-- 2009
Yamaha WR 250 X 30,7 CV, 22,6 kw 1cil. DG202 32DC Bastidores: DG202 henceforth02695-- 2010-2011
Yamaha WR 250 X 30,7 CV, 22,6 kw 1cil. DG202 32DJ Bastidores: DG202 henceforth02751-- 2012-2013
Yamaha WR 250 X 30,7 CV, 22,6 kw 1cil. DG202 32DP Bastidores: DG202 henceforth02866-- 2014-2015
Yamaha WRZ 250 39 CV, 29 kw 1cil. - 26U Bastidores: --- 2009
