Oil drain screw with valve M14X1.5 MM 723.08.68

The Stahlbus® Oil Drain Valve will easily replace your existing oil drain plug.

When changing the oil, unscrew the cap and insert the hose connector through the quick release.

Only when this is blocked does the valve open and the oil can be drained into a supplied container.

When releasing the hose connection the valve closes automatically and you have activated only on the protective cap

The advantages at a glance:

• No contact with oil

• Easy handling by quick release part

• drain plug cannot be lost

• No risk of burns from hot oil

• exchange of stamps is not necessary

• sink thread is safe

• Double fuse output (protective cover and valve)

• Connection to suction possible

• Sampling of dosed or overfilled discharge

• O-ring leak protection cover

• Change oil without tools

So the oil change is fun!

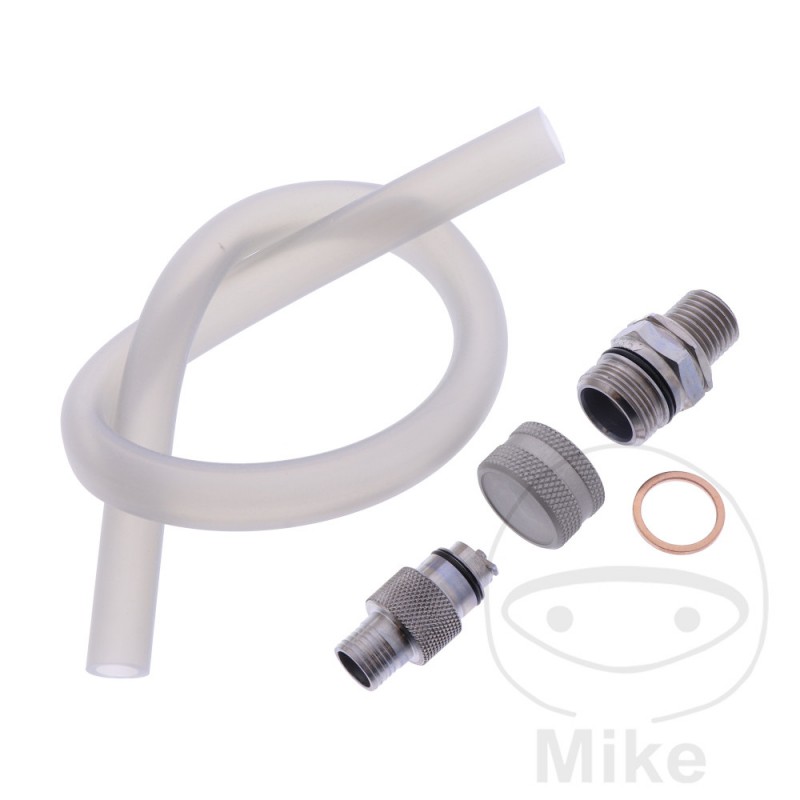

Scope of supply:

- valve body, precision CNC passed high quality steel part

- copper seal

- hose connection, precision CNC passed high quality steel part

- High quality 40 cm long hose

- Anodized aluminum bushing

- Illustrated user manual

Not suitable for Triumph Tiger 800 (Allen)
THREAD: M14X1.5
LENGTH: 19MM
HEAD: HEXAGONAL HEAD
KEY WIDTH: 19MM
Material: Steel
FOR SAFETY WIRE: NO
RETAINER/WASHER: YES
MAGNETIC: YES
