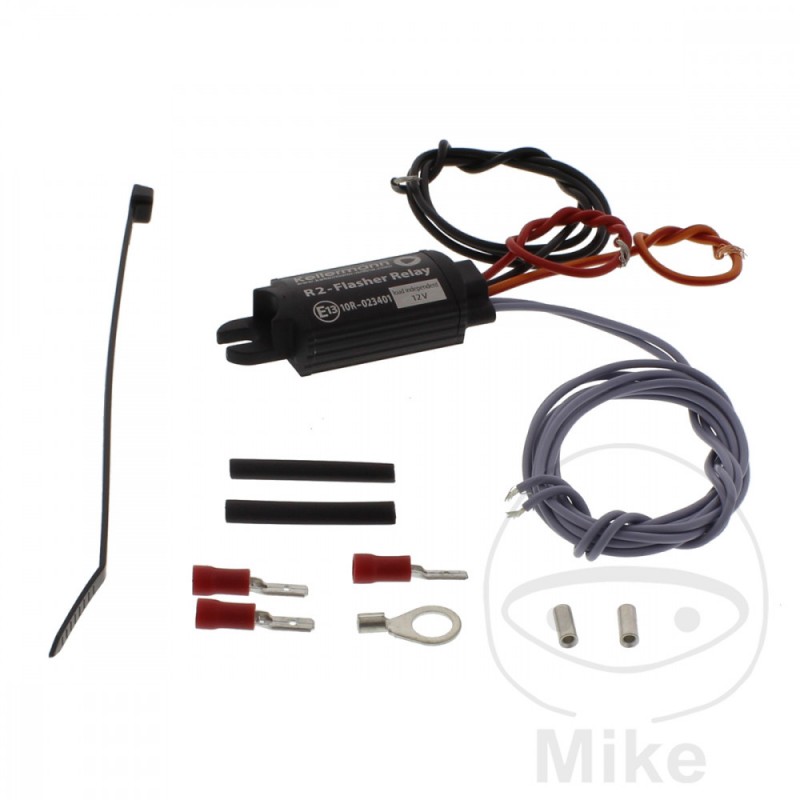

Flasher relay R 2

- ECE approved

- Replaces the original 2-3 pin flasher relay

- Prevents flickering of non-operated turn signals

- Independent charging

- Small dimensions 30 x 30 x 10 [mm] (L / W / H)

- Suitable for turn signal switch

- Suitable for 12 volt electrical systems.

The load-independent Kellermann R 2 flasher relay is the universal problem solver when using LED and halogen flashers. Replaces all original 2-3 pin flasher relays and ensures a constant and correct flash frequency. The connection is easy. If, after conversion to LED turn signals, the non-operated turn signals flash unintentionally, it is enough to connect the relay with a left and right turn signal to reliably eliminate this effect *. The delivery includes all the necessary components for installation.

* If required. Hazard warning lights must be off.

Flashing unit connection:

black wire: ground (31 or E)

Red wire: permanent plus (49 or B)

orange/red wire: clock plus (49a or L)
