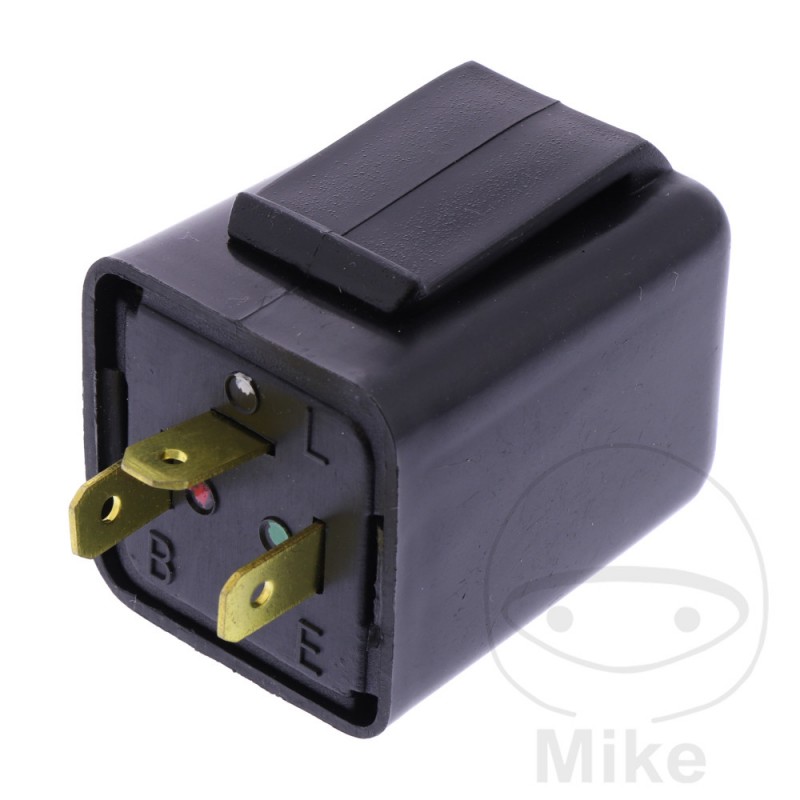

JMP Electric flasher relay 3 poles 12V 705.39.37

JMP flasher relay

Number of poles:

3-pin flat connector connection

Operating mode:

electronic

Nominal voltage:

12 volts

Switching capacity:

2 x 10 watts + 3.4 watts

Connections:

E = mass

B = battery

L = switch

flicker

85 per minute


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NB 50 M Melody 2,7 CV, 2 kw 1cil. AB07 E Bastidores: AB07-5100020-AB07-5106655 1984
Honda ND 50 M Melody 2,5 CV, 1,8 kw 1cil. AB07 C Bastidores: AB07-2294488-AB07-5013733 1982-1984
Yamaha DT 50 R 3,1 CV, 2,3 kw 1cil. 3MN 3MN1 Bastidores: 3MN henceforth00109-3MN henceforth01882 1989-1990
Yamaha DT 50 R 3,1 CV, 2,3 kw 1cil. 3MN 3MN2 Bastidores: 3MN henceforth01629-3MN henceforth14759 1991-1994
Yamaha DT 50 R 3,1 CV, 2,3 kw 1cil. 3MN 3MN3 Bastidores: 3MN--3MN henceforth16800 1995-1997
Yamaha DT 80 LC II 9,5 CV, 7 kw 1cil. 53V 2RA Bastidores: 53V henceforth30101-53V henceforth40000 1987-1989
Yamaha DT 80 LC II 9,5 CV, 7 kw 1cil. 53V 3WC1 Bastidores: 53V henceforth40101-53V henceforth50000 1990-1991
Yamaha DT 80 LC II 9,5 CV, 7 kw 1cil. 53V 4ED1 Bastidores: 53V henceforth50101-- 1992-1997
Yamaha DT 80 LC II 9,5 CV, 7 kw 1cil. 53V 53V Bastidores: 53V henceforth00101-53V henceforth07701 1985-1986
