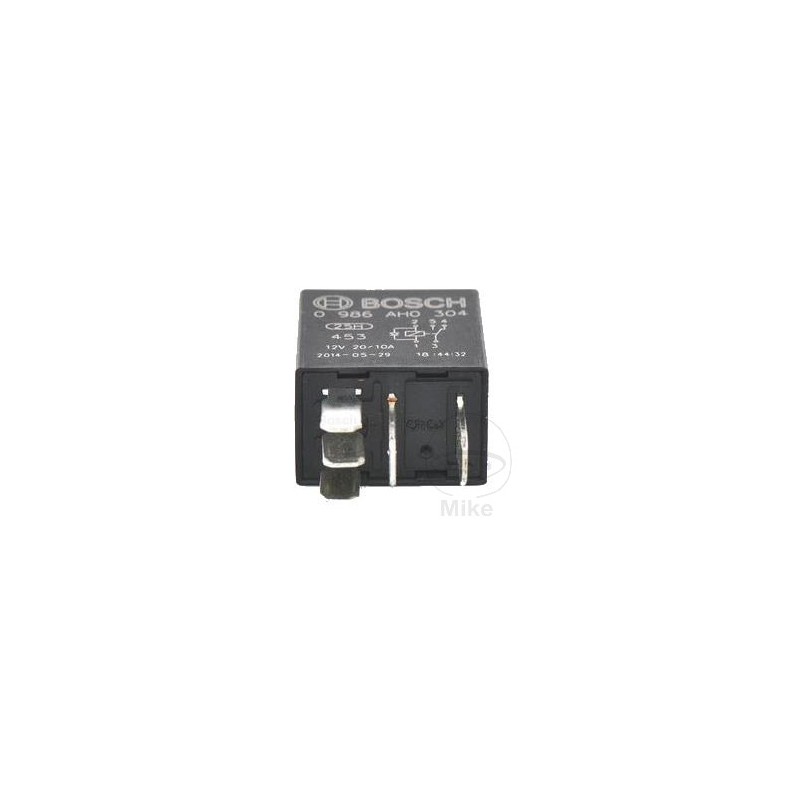

Changeover relay 5 poles 118.00.84

Bosch multifunction relay / shunt relay, 5 poles, 12 V.

Mini relay without bracket

with blocking diode

Closes the circuit between the power source and an electrical consumer.

Application area: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.

Technical specifications:

Rated voltage: 12 volts

Rated Current: 20A

Number of poles: 5 poles

Relay function: three-phase generator

Switch function: no cleaning function

Temperature range: -40 to +100 ° C

Protection class for housings and terminals in general: IP 20

Protection degree for sockets with below connector plug installation position: IP 5K4
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: MULTIFUNCTION
LOAD CAPACITY: 20A
WITH SUPPORT: YES
