closing relay 108.06.39

HELLA shunt relay 4-pole, 24 V

Mini power relay with bracket

With resistance in parallel to the coil

Closes the circuit between the power source and an electrical load

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

specs

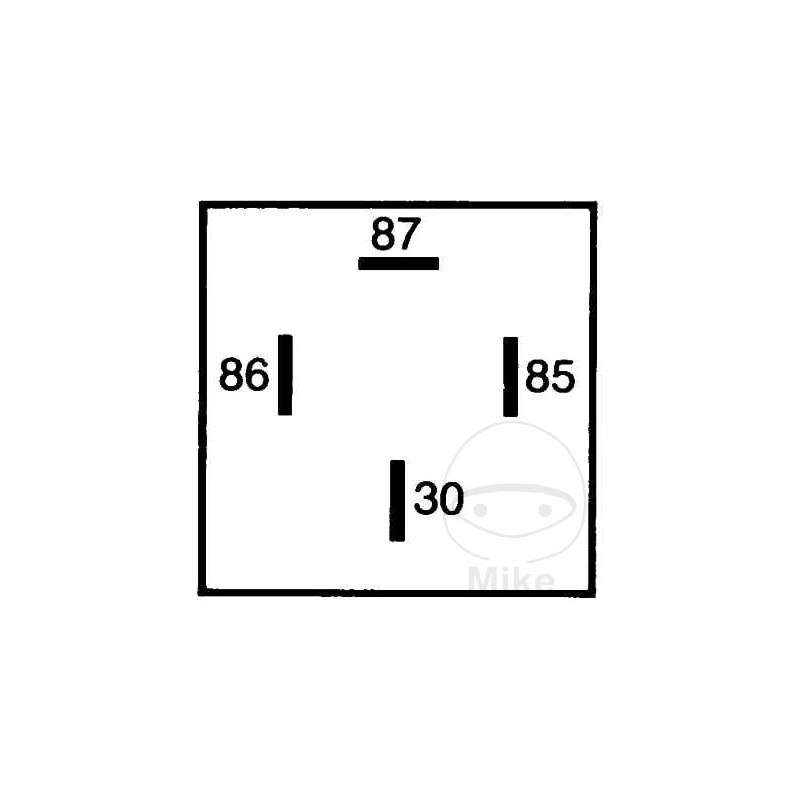

Plug Type ID: B

Diagram: S2

Temperature range, max: 80 ° C

Endurance (at 80°C) of normally open contact

Resistive load: 20 A

Inductive load: 16 A

capacitive load: 15 A
VOLTAGE: 24V
QUANTITY TERMINALS: 4
SWITCH FUNCTION: CLOSE
LOAD CAPACITY: 20A
WITH STAND: YES
