Relay 108.06.21

HERTH and BUSS Shunt Relay 4 Pole 12V

With resistance in parallel to the coil

An open relay the circuit between the power source and an electrical load is closed, that is, the device is on

relay operated via switches, encoders or control devices

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

specs

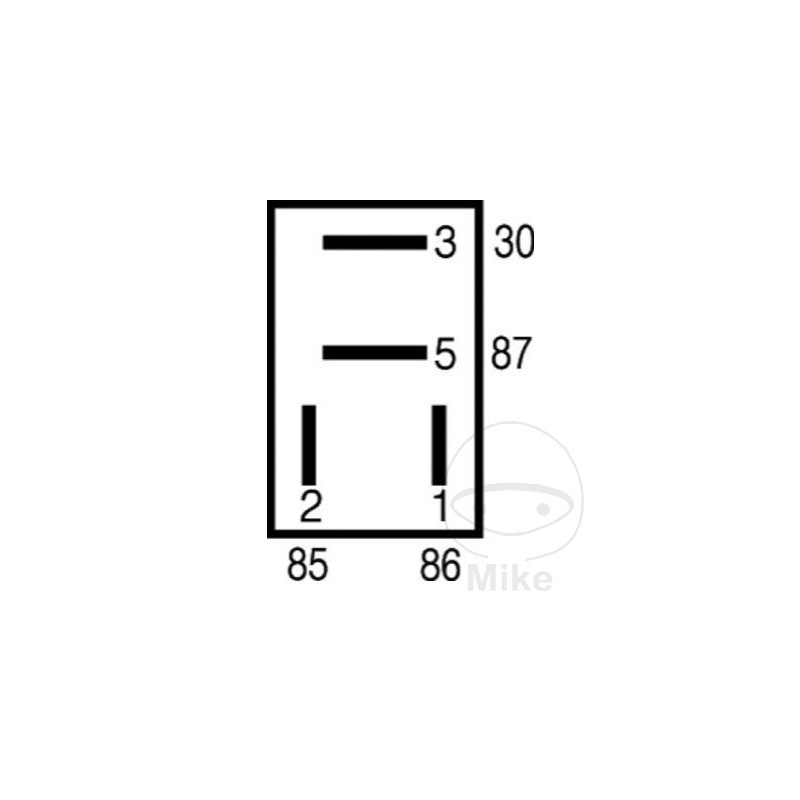

Termination: 2 flat connectors 6.3 mm (terminals 3 and 5) 4.8 mm and 2 connections

Plug Type ID: C

Diagram: S2

Protection: IP5K4K

Temperature range: -30° to 80°C

Dimensions W: 15 x 26 x 23mm
VOLTAGE: 12V
QUANTITY TERMINALS: 4
SWITCH FUNCTION: CLOSE
LOAD CAPACITY: 25A
WITH STAND: YES
