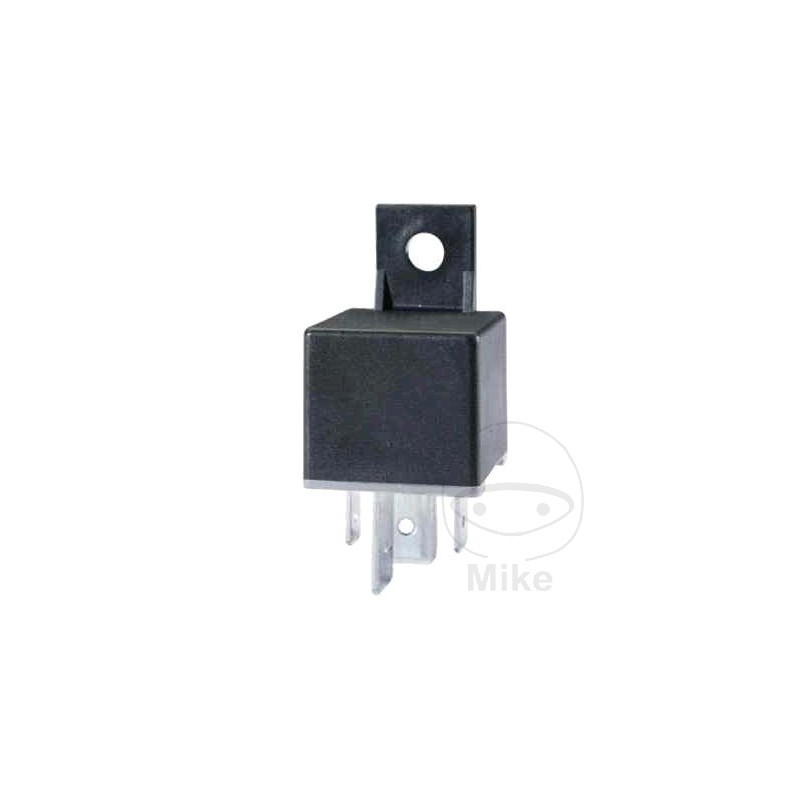

Relay 108.05.97

HELLA shunt relay 4-pole, 12 V

Mini power relay with bracket

With resistance in parallel to the coil

Closes the circuit between the power source and an electrical load

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

Specs:

Termination: with 2 6.3 mm connections and 2 9.5 mm blade terminals (terminals 30 and 87)

Plug Type ID: B3

Diagram: S2

Temperature range, max:. 80°C

Endurance (at 80°C) of normally open contact

Resistive load: 50 A

Inductive load: 46 A

capacitive load: 44 A
VOLTAGE: 12V
QUANTITY TERMINALS: 4
SWITCH FUNCTION: CLOSE
LOAD CAPACITY: 50A
WITH STAND: YES
