Changeover relay 5 poles 24V 20A 108.02.78

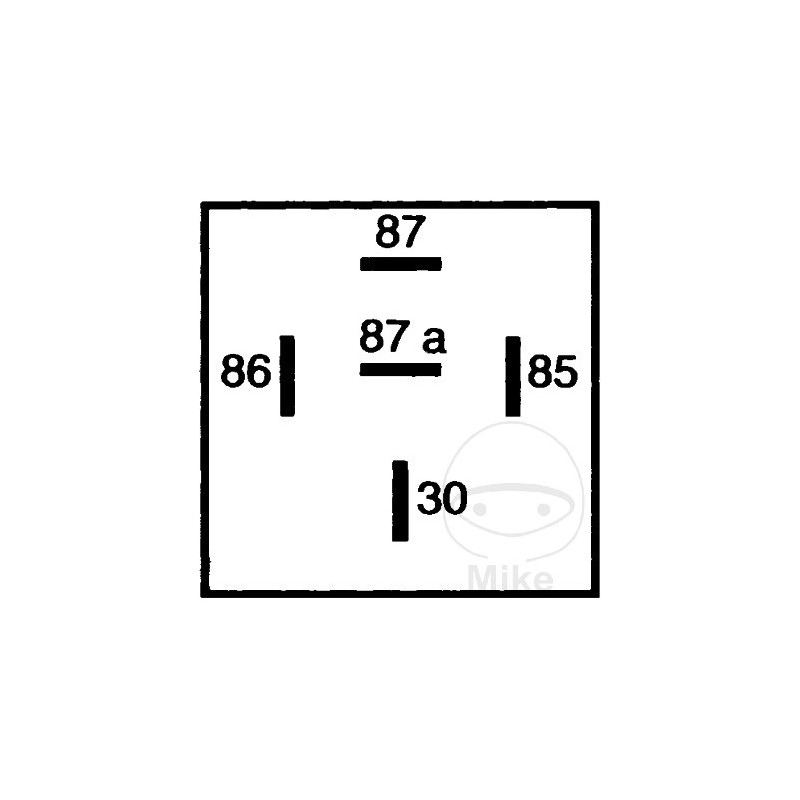

HELLA shunt relay 5-pole, 24 V

With resistance in parallel to the coil

Closes the circuit between the power source and an electrical load

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

Specs:

Weight: 25g

Inductive load: 5 A

capacitive load: 5 A

Rated current: 20A

Resistive load: 20 A

Temperature range: -40 ° C

Temperature range up to 125 ° C
VOLTAGE: 24V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: SHIFT
LOAD CAPACITY: 20A
WITH SUPPORT: YES
