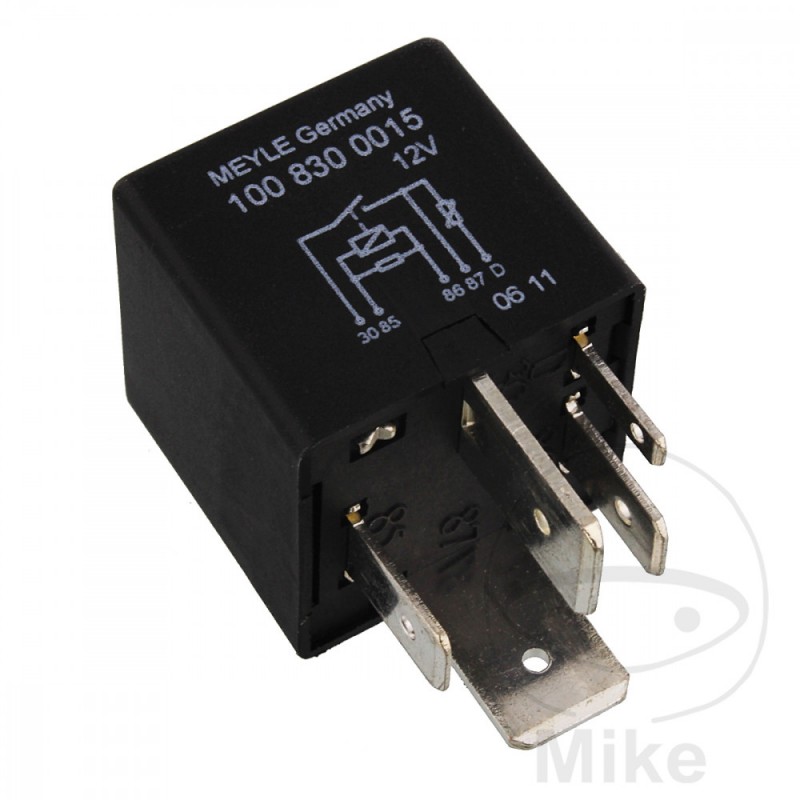

MEYLE multifunction relay 5-pole, 12 V

In the multi-function relay is in a one-time circuit with the relay connected

Delayed waste: By applying a voltage to the input of the monostable vibrator, the relay is activated immediately. After the deactivation of the relay input voltage is deactivated after a preset time ago

The delay or time can be set by a DIP switch and is finely adjustable with the potentiometer.

By using a more powerful relay motor can easily handle higher currents and different types of load - such. As inductive, capacitive / lamps - Switch

Specs:

Widerstand: 560 Ohm

LENGTH: 26MM

WIDTH: 26MM

Height: 25mm

Temperature range: -40 ° C

Temperature range up to 85 ° C

Connectivity Technology: 2x 9.5mm, 2x 6.3mm, 1x 2.8mm
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: CLOSE
LOAD CAPACITY: 40A
WITH SUPPORT: YES
