HERTH+BUSS Relay MQ 1080033 108.12.23

bypass relay HERTH + BUSS 5-pole, 12 V

Mini Relay with bracket and 6.3mm connections

With resistance in parallel to the coil

Closes the circuit between the power source and an electrical load

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

specs

Rated voltage: 12 volts

Number of poles: 5

Switching function: Shift

Load capacity at 12V: 20/30 A

Plug Type ID: B1

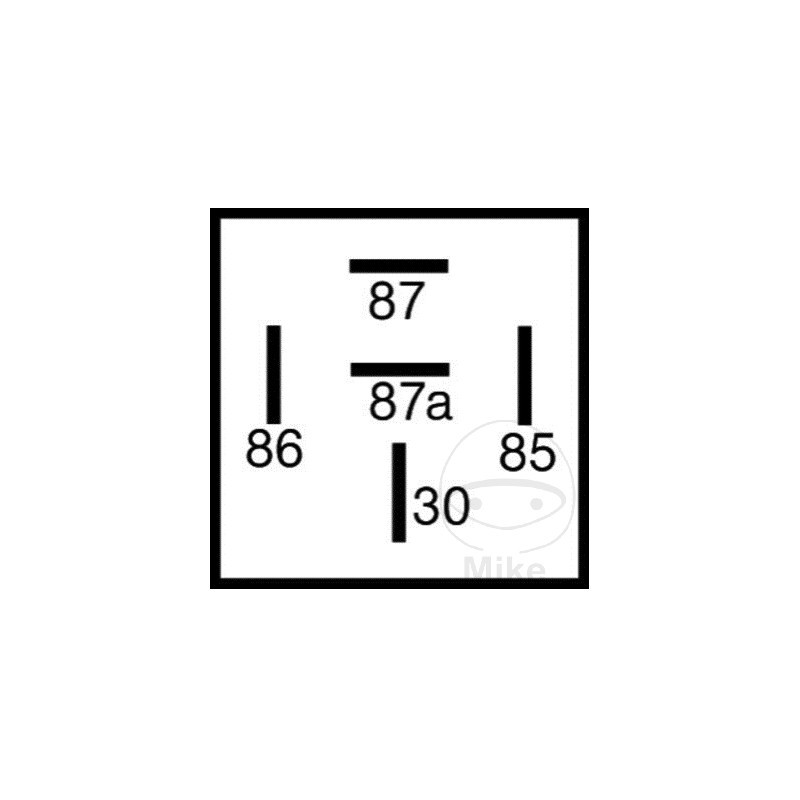

Diagram: W1

Temperature range from -40 ° C to max. 85°C

Capacity (at 85°C) Burst

Resistive load: 20 A

Inductive load: 6 A

capacitive load: 10 A

Ability (at 85°C) to make contact

Resistive load: 30 A

Inductive load: 20 A

capacitive load: 20 A
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: SHIFT
LOAD CAPACITY: 20/30A
WITH STAND: YES


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 60 /6 40 CV, 29 kw 2cil. R60/6 0251 Bastidores: 2 910 001-2 920 000 1973-1974
BMW R 60 /6 40 CV, 29 kw 2cil. R60/6 0255 Bastidores: 2 920 001-2 930 000 1975
BMW R 60 /6 40 CV, 29 kw 2cil. R60/6 0281 Bastidores: 2 960 001-2 970 000 1976
BMW R 75 /6 50 CV, 37 kw 2cil. R75/6 0261 Bastidores: 4 010 001-4 020 000 1973-1974
BMW R 75 /6 50 CV, 37 kw 2cil. R75/6 0265 Bastidores: 4 020 001-4 030 000 1975
BMW R 75 /6 50 CV, 37 kw 2cil. R75/6 0282 Bastidores: 4 030 001-4 040 000 1976
BMW R 90 /6 60 CV, 44 kw 2cil. R90/6 0271 Bastidores: 4 040 001-4 050 000 1973-1974
BMW R 90 /6 60 CV, 44 kw 2cil. R90/6 0275 Bastidores: 4 050 001-4 060 000 1975
BMW R 90 /6 60 CV, 44 kw 2cil. R90/6 0283 Bastidores: 4 060 001-4 070 000 1976
BMW R 90 S 67 CV, 49 kw 2cil. R90/S 0272 Bastidores: 4 070 001-4 080 000 1973-1974
BMW R 90 S 67 CV, 49 kw 2cil. R90/S 0276 Bastidores: 4 080 001-4 090 000 1975
BMW R 90 S 67 CV, 49 kw 2cil. R90/S 0284 Bastidores: 4 090 001-4 100 000 1976
