HELLA multifunctional relay 108.01.88

HELLA shunt relay 5-pole, 12 V

Mini Relay without support

With resistor in parallel to coil and flat connectors

Closes the circuit between the power source and an electrical load

Application: headlights, additional lights, horns, heaters, fans, motors and power windows, air conditioning and ignition systems, etc.

specs

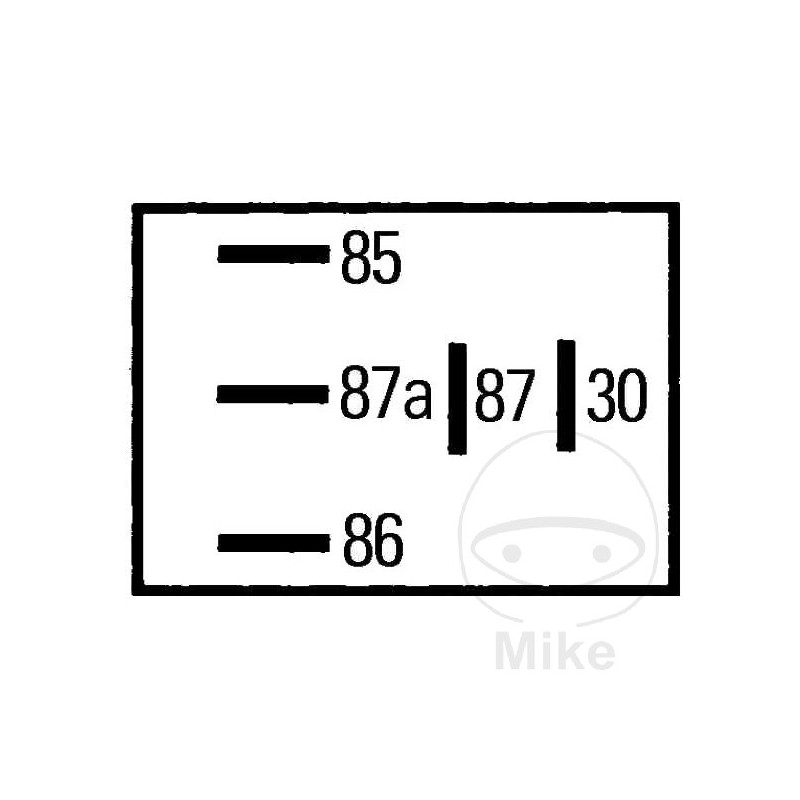

Termination: 3 4.8 mm blade terminals and 2 6.3 mm flat plug connections (terminals 3 and 5)

Plug type ID: C1

Diagram: W2

Temperature range, max: 80 ° C

Endurance (at 80°C), NC

Resistive load: 10 A

Inductive load: 11 A

capacitive load: 10 A

Endurance (at 80°C) of normally open contact

Resistive load: 20 A

Inductive load: 11 A

capacitive load: 20 A
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: SHIFT
LOAD CAPACITY: 10/20A
WITH SUPPORT: YES
