SHINYO Universal electronic flasher relay 3 poles 1107584

SHIN YO 3-Pin Universal flasher relay


Universally usable flasher relay with adjustable flashing frequency. With this relay it is possible to operate a flasher combination of LED and bulb. A warning flashing function is also provided.





DIMENSIONS


Ø 37 mm


Height: 35 mm





Technical data and connections


Voltage: 12 V


Load absorption: min. 5 mA ~ max. 15 A


Consumers: min. 0.06 W ~ 180 W max.





49 B = Battery (12V +) Input


31 G = Ground (-)


49a L = Light (to indicator switch)





Fasten separate green cable to G (31) and vehicle ground point.


For vehicles with 3-way plug and 2 pin assignment (49, 49a)


For vehicles with 3-way plug and 3 pin assignment (49, 49a, 31) use the green cable on the adapter plug (please check if the assignment is correct).

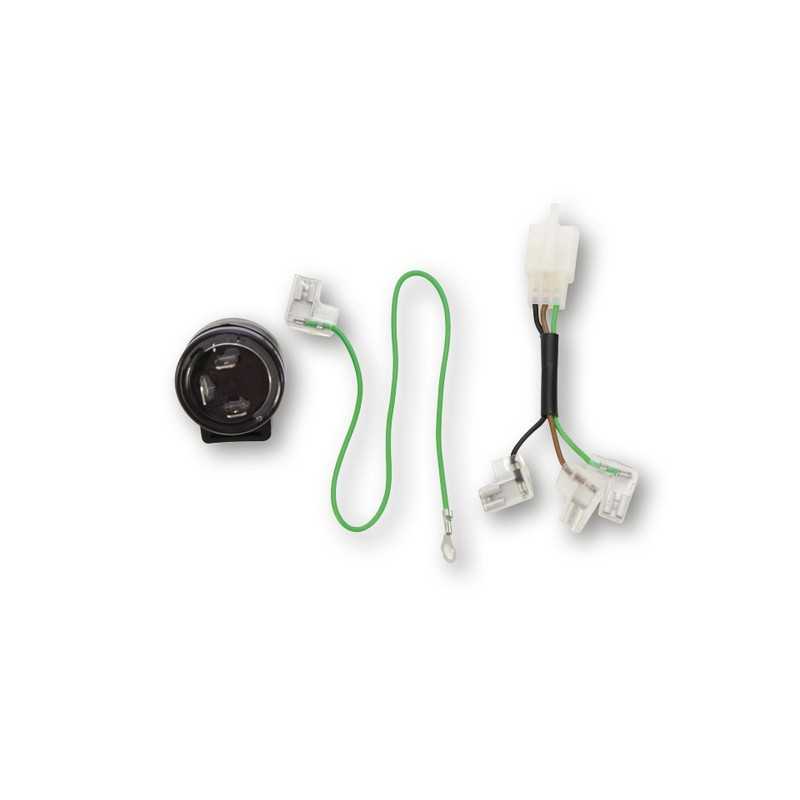

Scope of supply:1 piece





Note: No function at 6V !


extract StVO: The flashing frequency must be set to 1.5 Hz +/- 0.5 Hz (90 pulses +/-30 pulses per minute).
