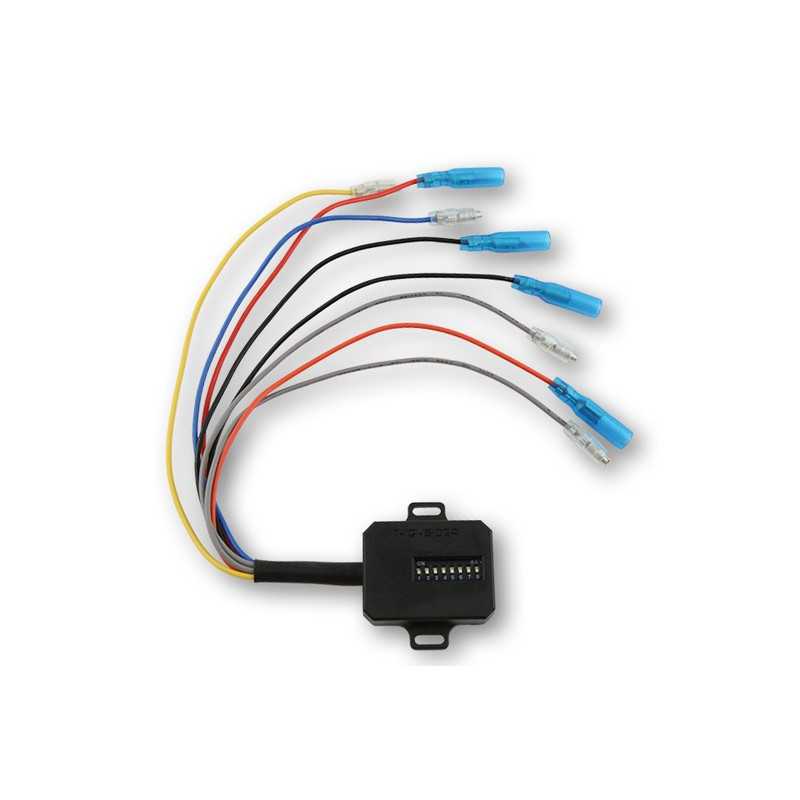

CAN-BUS HIGHSIDER CBW1 resistor with DIP switches. Our new HIGHSIDER CBW1 CAN-BUS resistor is suitable for most vehicles equipped with a CAN-BUS system. The CBW1 resistor provides a necessary electrical load for your vehicle which, if the DIP switches are set correctly, does not cause an error message in the cockpit when the accessory indicators are used.


It also ensures trouble-free operation. That means:


If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit.


If 2 pairs of turn signals (VL,VR,HL,HR) need to be replaced, 2 x CBW1 can be used, such as rear left and rear right turn signals.


What requirements must be met to use the CBW1 on the vehicle:


E Either:


LED indicators have been installed on the vehicle in their original condition.


Gold:


Or:


The vehicle is equipped with a CAN-BUS system.


If none of these requirements are met, the CBW1 cannot be installed (!).), we recommend the following resistors for the vehicle:


F for 21 Watt indicators


6.8 Ohm part number 207-025


GOLD


10 Ohm part number 207-028


F for 10 Watt lights


27 Ohm part number 207-020


The following values can be set:


150 Ohms


170 Ohms


200 Ohms


240 Ohms


300 Ohms


400 Ohms


600 Ohms


1200 Ohms


1200 Ohms


measures :


Height = 11mm


Width = 31 mm (without legs)


Width = 46 mm (with legs)


Length = 40mm


Cable length = 200 mm with pins


connection:


Yellow = Input Channel 1 (+)


Orange = Output Channel 1 (+)


Blue = Input Channel 2 (+)


Red = Output Channel 2 (+)


Gray = Input Ground (-)


Black = Output Ground (-)
