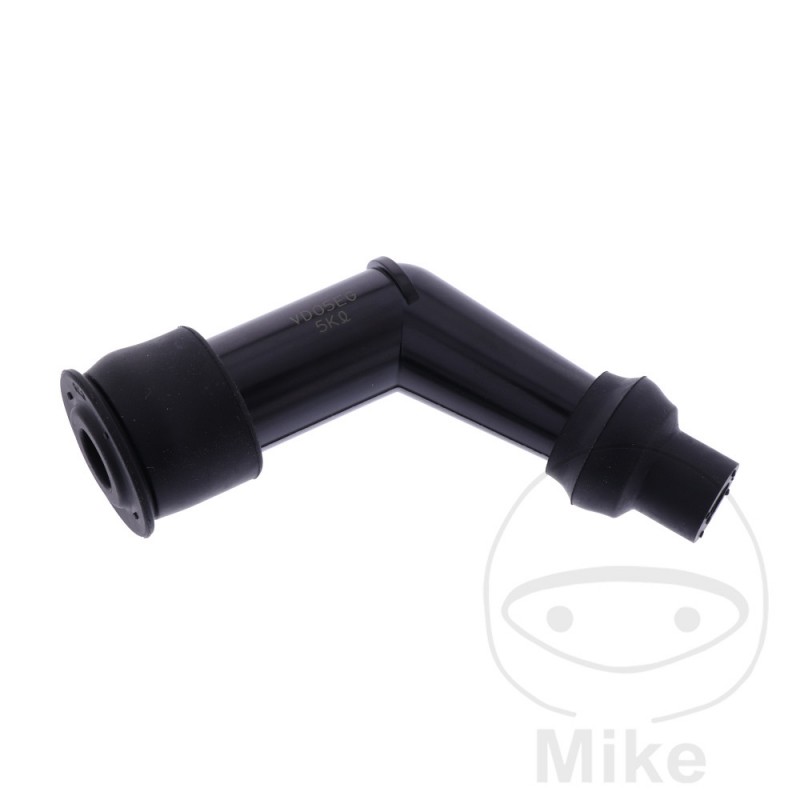

NGK Spark plug pipe VD05EG 708.51.78

NGK spark plug connector

The use of NGK spark plug connectors with noise suppression resistors in conjunction with NGK spark plugs offers optimal suppression of interference frequencies in all frequency ranges without negatively influencing engine running behaviour.

NGK spark plug connectors are equipped with a resistor made of high quality ceramic material.

This ensures a constant resistance value with little drift under overload conditions.
TYPE: PLUG
SPARK PLUG THREAD DIAMETER: 10
CONNECTION TYPE: SAE NUT
ANGLE: 120°
RESISTANCE: 5 KILOOHMS
NO DISTURBANCE: YES
MATERIAL: PHENOLIC RESIN
CABLE LENGTH: WITHOUT CABLE
BUILT-IN IGNITION COIL: NO
ZUSATZINFO: LANG


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Beta Evo 250 4T 1cil. ZD3T8133 Bastidores: --- 2018
COMPATIBLE WITHBeta Evo 250 4T 1cil. ZD3T8133 Bastidores: ZD3T8133 henceforthH0600006-ZD3T8133-XH0600014 2017
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforth90400001-ZD3T6020 henceforth90400096 2009
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforth90400097-ZD3T6020 henceforth90400150 2010
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforthA0400151-ZD3T6020 henceforthB0400168 2011
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforthB0400169-ZD3T6020 henceforthC0400221 2012
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforthD0400222-ZD3T6020 henceforthE0400242 2014
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforthE0400243-ZD3T6020 henceforthF0400264 2015
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6020 Bastidores: ZD3T6020 henceforthF0400265-ZD3T6020 henceforthG0400287 2016
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6133 Bastidores: ZD3T6133 henceforthB0600004-ZD3T6133-9B0600003 2011
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6133 Bastidores: ZD3T6133 henceforthF0600025-ZD3T6133-9F0600024 2016
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6133 Bastidores: ZD3T6133-1F0600017-ZD3T6133-XF0600016 2015
COMPATIBLE WITHBeta Evo 250 4T 9,6 CV, 7,1 kw 1cil. ZD3T6133 Bastidores: ZD3T6133-2D0600010-ZD3T6133-4D0600011 2012-2013
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T6020 Bastidores: ZD3T6020-180500001-ZD3T6020-190500255 2009
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T6020 Bastidores: ZD3T6020-190500256-ZD3T60201-A0500469 2010
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T6020 Bastidores: ZD3T6020-1A0500470-ZD3T6020-1B0500610 2011
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthB0700004-ZD3T6153-XB0700012 2011
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T8153 Bastidores: --- 2018
COMPATIBLE WITHBeta Evo 300 4T 1cil. ZD3T8153 Bastidores: ZD3T8153 henceforthH0700006-ZD3T8153-XH0700191 2017
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6020 Bastidores: ZD3T6020-1B0500611-ZD3T6020-1D0500845 2012-2013
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6020 Bastidores: ZD3T6020-1D0500846-ZD3T6020-1E0500927 2014
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6020 Bastidores: ZD3T6020-1E0500928-ZD3T6020-1F0501048 2015
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6020 Bastidores: ZD3T6020-1F0501049-ZD3T6020-1G0501161 2016
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthC0700019-ZD3T6153-XD0700045 2012-2013
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthE0700069-ZD3T6153-XE0700080 2014
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthF0700087-ZD3T6153-XF0700114 2015
COMPATIBLE WITHBeta Evo 300 4T 9,9 CV, 7,3 kw 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthG0700124-ZD3T6153-XG0700163 2016
COMPATIBLE WITHBeta Evo 300 4T Factory 1cil. ZD3T8153 Bastidores: ZD3T8153 henceforthH0750002-ZD3T8153-XH0750086 2017
COMPATIBLE WITHBeta Evo 300 4T Factory 1cil. ZD3T8153 Bastidores: ZD3T8153 henceforthJ0750121-ZD3T8153-XJ0750174 2018
COMPATIBLE WITHBeta Evo 300 4T Factory 9,9 CV, 7,3 kw 1cil. ZD3T6020 Bastidores: ZD3T6020-1G0550001-ZD3T6020-1G0550029 2016
COMPATIBLE WITHBeta Evo 300 4T Factory 9,9 CV, 7,3 kw 1cil. ZD3T6153 Bastidores: ZD3T6153 henceforthG0700172-ZD3T6153-XG0700194 2016
COMPATIBLE WITHKTM Duke 640 E II 34 CV, 25 kw 1cil. - Bastidores: --- 2005-2007
COMPATIBLE WITHKTM Duke 640 E II 54 CV, 40 kw 1cil. - Bastidores: --- 2005-2007
COMPATIBLE WITHKTM EXC 250 4T Racing 17/31 CV, 12/23 kw 1cil. - Bastidores: --- 2003-2006
COMPATIBLE WITHKTM EXC 400 Racing 17/40 CV, 12/29 kw 1cil. - Bastidores: --- 2002-2006
COMPATIBLE WITHKTM EXC 450 Racing 17/49 CV, 12/36 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHKTM EXC 525 Racing 17/61 CV, 12/45 kw 1cil. - Bastidores: --- 2003-2006
COMPATIBLE WITHKTM MXC 525 Desert Racing 17/61 CV, 12/45 kw 1cil. - Bastidores: --- 2003-2005
COMPATIBLE WITHKTM SMC 660 LC4 Supermoto 65/28,5 CV, 48/21 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHKTM SMR 450 Racing Supermoto 54 CV, 40 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHKTM SMR 525 Racing Supermoto 57 CV, 42 kw 1cil. - Bastidores: --- 2004-2005
COMPATIBLE WITHKTM SX 250 56 CV, 41 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHKTM SX 450 Racing 54 CV, 40 kw 1cil. - Bastidores: --- 2003-2005
COMPATIBLE WITHKTM SX 525 Racing 57 CV, 42 kw 1cil. - Bastidores: --- 2003-2005
COMPATIBLE WITHKTM SX-F 250 4T 39 CV, 29 kw 1cil. - Bastidores: --- 2006
COMPATIBLE WITHKTM XC Quad 450 14 CV, 10 kw 1cil. - Bastidores: --- 2009
COMPATIBLE WITHKTM XC Quad 525 15 CV, 11 kw 1cil. - Bastidores: --- 2009-2013
