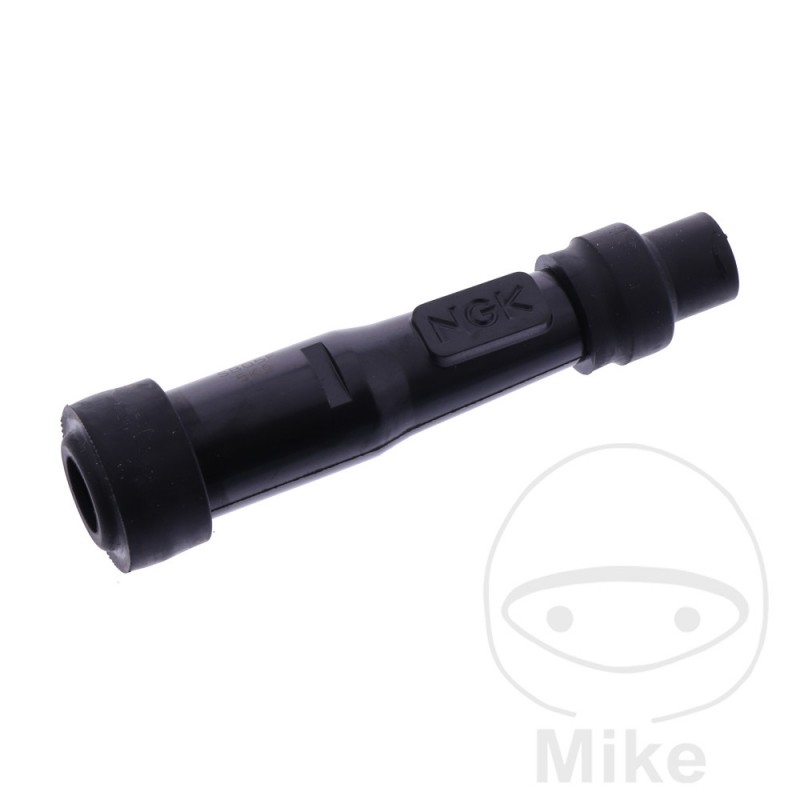

NGK Spark plug pipe SB05F ALTN: 7080371 708.50.38

NGK spark plug connector

The use of NGK spark plug connectors with suppression resistors in conjunction with NGK spark plugs offers optimum suppression of interference frequencies in all frequency ranges without negatively influencing the running behavior of the engine.

NGK spark plug connectors are equipped with a resistance element made of high quality ceramic material.

This ensures a constant resistance value with only a slight deviation under overload conditions.
TYPE: PLUG
SPARK PLUG THREAD DIAMETER: 14 MM
CONNECTION TYPE: M4 CONNECTION
ANGLE: 0° (STRAIGHT)
RESISTANCE: 5 KILOOHMS
NO DISTURBANCE: YES
MATERIAL: PHENOLIC RESIN
CABLE LENGTH: WITHOUT CABLE
BUILT-IN IGNITION COIL: NO


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Cagiva W16 600 34 CV, 25 kw 1cil. 2G Bastidores: --- 1994-1997
COMPATIBLE WITHKawasaki Z 900 A 81 CV, 60 kw 4cil. Z1F 4 Bastidores: Z1F henceforth89701-- 1976
COMPATIBLE WITHKawasaki Z1 900 79 CV, 59 kw 4cil. Z1F Bastidores: Z1F henceforth00001-Z1F henceforth20000 1973
COMPATIBLE WITHKawasaki Z1A 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-20001-Z1F-47499 1974
COMPATIBLE WITHKawasaki Z1B 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-47500-Z1F henceforth85700 1975
