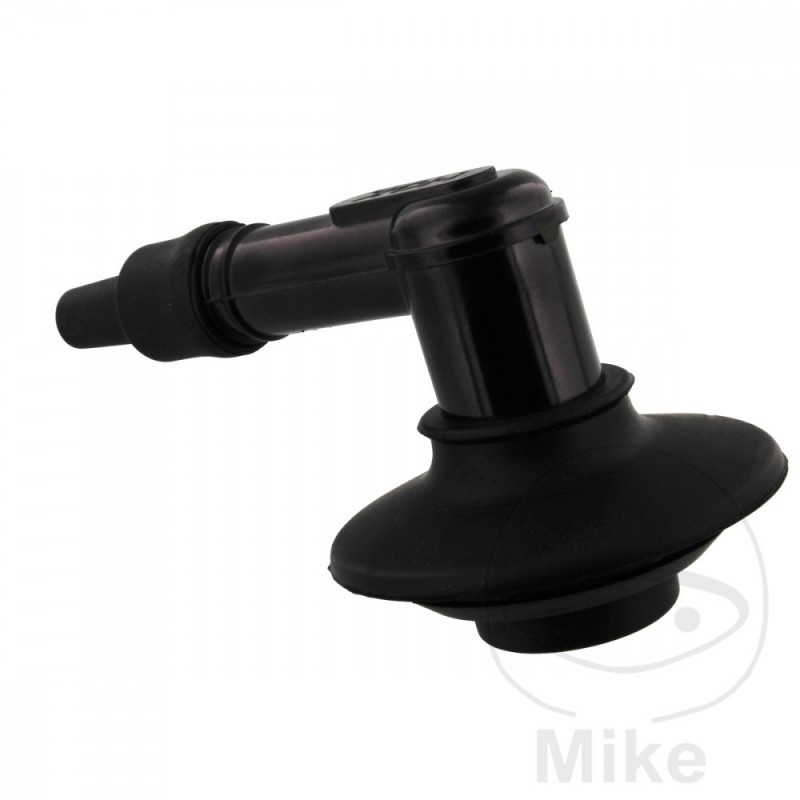

NGK Spark plug pipe LB05FG 708.01.30

NGK spark plug connector

The use of NGK spark plug connectors with noise suppression resistors in conjunction with NGK spark plugs offers optimal suppression of interference frequencies in all frequency ranges without negatively influencing engine running behaviour.

NGK spark plug connectors are equipped with a resistor made of high quality ceramic material.

This ensures a constant resistance value with little drift under overload conditions.
TYPE: PLUG
SPARK PLUG THREAD DIAMETER: 14 MM
CONNECTION TYPE: M4 CONNECTION
ANGLE: 90°
RESISTANCE: 5 KILOOHMS
NO DISTURBANCE: YES
MATERIAL: PHENOLIC RESIN
CABLE LENGTH: WITHOUT CABLE
BUILT-IN IGNITION COIL: NO
ZUSATZINFO: MIT GUMMITÜLLE (ZUR ABDICHTUNG AN DER ZÜNDKERZE)


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Generic XOR 50 2,1 CV, 1,54 kw 1cil. - Bastidores: --- 2007-2009
COMPATIBLE WITHGeneric XOR 50 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHGeneric XOR 50 2 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2010-2012
COMPATIBLE WITHGeneric XOR 50 2 Anniversary 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2011-2012
COMPATIBLE WITHGeneric XOR 50 2 Competition 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2010-2014
COMPATIBLE WITHGeneric XOR 50 2 Stroke 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2010-2012
COMPATIBLE WITHGeneric XOR 50 Competition 2,1 CV, 1,54 kw 1cil. - Bastidores: --- 2007-2009
COMPATIBLE WITHGeneric XOR 50 Competition 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHGeneric XOR 50 Stroke 2,1 CV, 1,54 kw 1cil. - Bastidores: --- 2007-2009
COMPATIBLE WITHGeneric XOR 50 Stroke 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2005-2006
COMPATIBLE WITHKSR-Moto XOR2 50 Competition 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2014-2015
