ACV Adapter cable for remote control interface in Dacia vehicles LFB 12 PIN/24 PIN/6 PIN 1941032

Dacia steering wheel remote control adapter for various vehicles, 12 pin/24 pin/6 pin

Retain the original functions of the steering wheel remote control when replacing the factory radio with an aftermarket radio.
Depending on the vehicle's equipment and the range of functions and software of the retrofit device, some operating functions may be omitted or replaced by others.
Compare the adapter plugs shown with those in your vehicle and make sure they match visually and technically.
Also check if one of the specified original factory radios was installed in your vehicle.
Before final installation, check that the vehicle functions, vehicle settings, and steering wheel remote control are working properly.

Note:

analogical

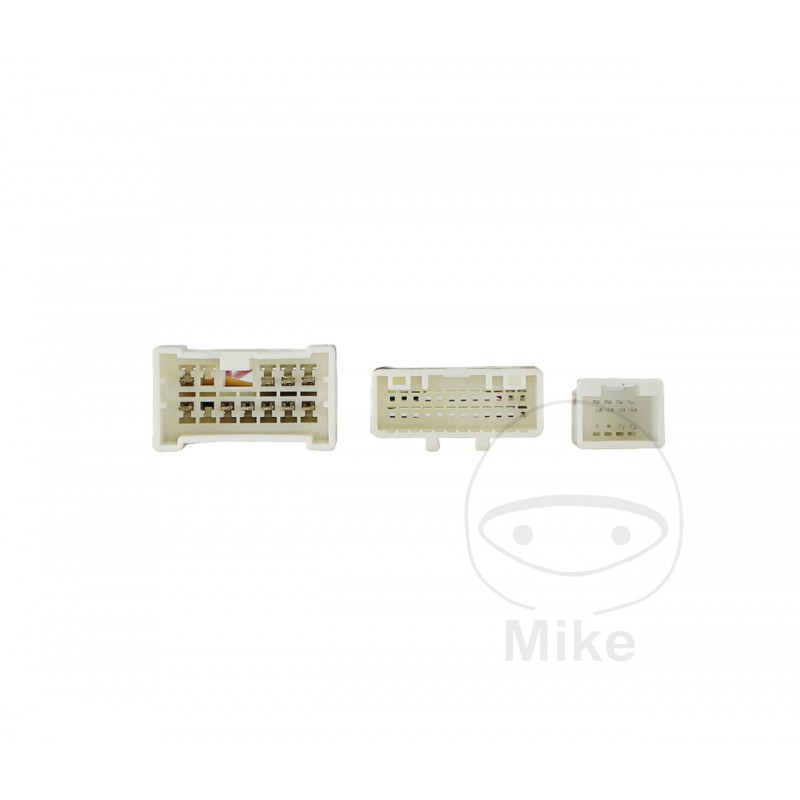

Connection: Dacia 12-pin / 24-pin / 6-pin connector
Adapt the factory grey plug coding/routing using workshop tools > if necessary
2018 Vehicles > Red +12V Ignition Current Terminal 15 Fuse Box Fuse > If necessary
2018 Vehicles > Red interface +12V ignition current terminal 15 fuse box with fuses > if necessary

Suitable for the following vehicles:

Dacia Dokker (SD) 12/2012 - 03/2017
Dacia Dokker (SD) 03/2017 - 11/2021*
Dacia Dokker Stepway (SD) 11/2014 - 03/2017*
Dacia Dokker Stepway (SD) 03/2017 - 11/2020
Dacia Duster (SD) 11/2013 - 12/2017
Dacia Duster (SR) 01/2018 - 07/2021
Dacia Duster (SR) 09/2021 - 2023**
Dacia Lodgy (SD) 06/2012 - 06/2021
Dacia Lodgy Stepway (SD) 11/2014 - 06/2021*
Dacia Logan MCV (SD) 07/2013 - 09/2020*
Dacia Sandero (SD) 01/2013 - 09/2020
Dacia Sandero Stepway (SD) 01/2013 - 09/2020*

The following signals are provided:
Remote control on the steering wheel
*Vehicles 2017> with Visteon RO13-X07 OEM device without CAN bus > Item: 42srn011
**Vehicles with radio preparation

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine connector: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion jack: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead multiple devices: 42ctmultilead
LFB cable 42s/acv > Multilead multiple devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead multiple devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022 > loose socket: 42ctpioneerlead2
LFB 42s/acv cable > Devices with LFB tuning function: 42ctsmartlead
LFB 42s/acv cable > Blaupunkt/Kenwood/Sony socket: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec cable 1: 42ctzeneclead
