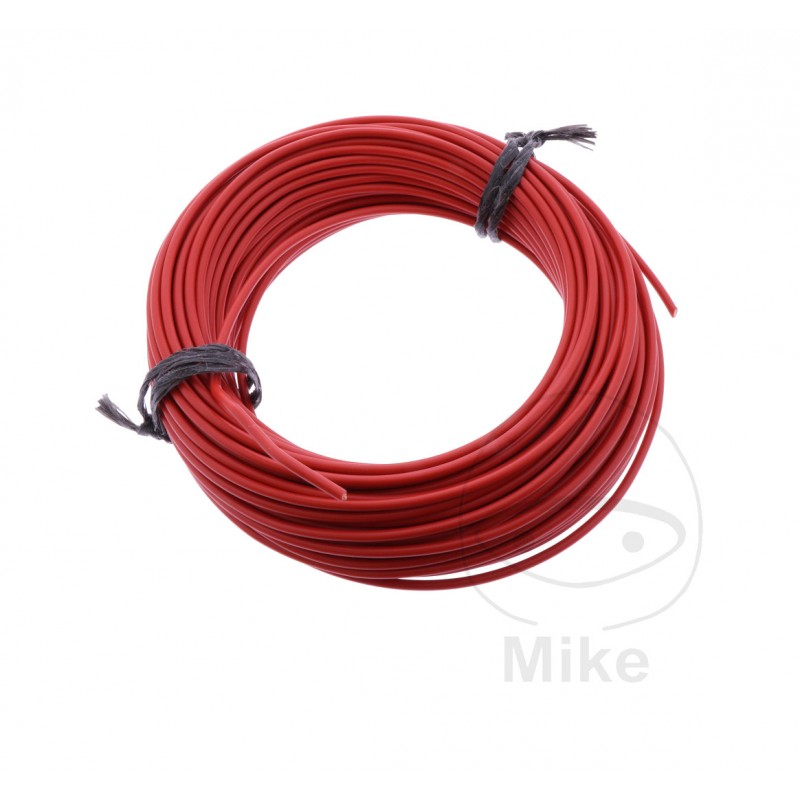

JMP Electrical cable 2.50 PACK 25M FLY 1570541

FLY JMP Cable

Single-core cables for low-voltage installations in motor vehicles.
Flexible automotive cable made with bare copper wire and PVC insulation.
Compliance with standards: PN-E-90181
Class 5 copper wires according to PN-EN 60228, PVC TI1 insulation.

Technical data

Conductor cross-section mm²: 2.5
Nominal insulation thickness (mm): 0.6
Outer diameter of the cable (mm): 3.5
Rated voltage: 220V
Test voltage: 2500 V
Operating temperature range: -40ºC to +90ºC
Minimum bending radius: 4xD (D - outer diameter of the cable)

Insulation color: red
Length (m): 25
INTENDED USE: VEHICLE CABLE
QUANTITY OF THREADS: 1
CROSS SECTION: 2.5 MM²
INSULATION: PVC
LENGTH: 25 METER
