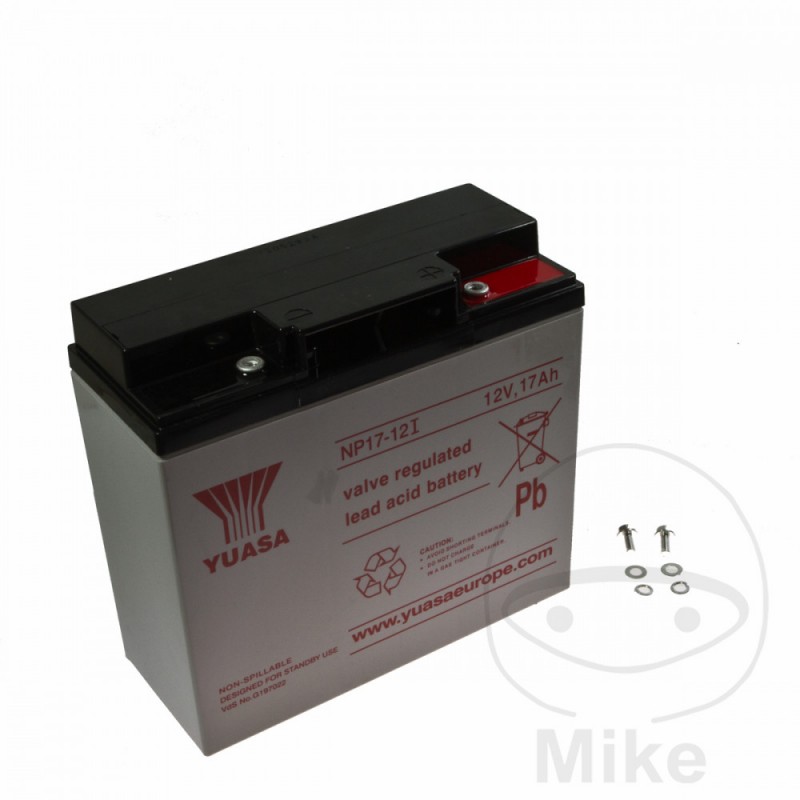

YUASA MAINTENANCE FREE MOTORCYCLE BATTERY NP 17-12I 707.17.07

Maintenance-free 12 V NP battery.

Yuasa NP batteries have excellent deep discharge recovery properties in connection with long life in float charge operation and are therefore suitable for numerous applications in float and cyclic charge operation.

The electrolyte is wrapped in a fleece and is also approved for aircraft (IATA).

We recommend the JMP 4000 charger for charging and maintenance.

Technical specifications:

Capacity 20 hours in AH = 17.0

Dimensions in mm 181x76x167

Approximate weight 5.9kg

Features:

Totally maintenance free.

locked cells

Safe from deep discharges

no electrolyte leakage

complete recombination of oxygen

suitable for continuous charging or cyclical operation

can be used in any position

higher energy density

Long useful life

Tested by you.

Charging in cycle mode:

The charging voltage should be between 2.35 and 2.5V/cell.

The maximum charging current must be limited to 0.25 C (A) in cyclic operation.

The charging time should not exceed 24 hours.

Float Mode Charge:

The charging voltage should be between 2.25 and 2.3 V/cell.

The maximum charging current does not have to be limited when operating in float mode.

The battery can be considered charged when the residual charging current has reached a value of 0.002 C (A).

Application areas:

Alarm systems, cable television, communication equipment, portable telephones, control devices, computers

electronic cash registers, electronic test equipment, emergency lighting systems, fire alarm and security system

Geophysical devices, marine devices, medical devices, microprocessor-based office machines

portable video and film lighting, power tools, handheld vacuum cleaners, telecommunication systems and others
VOLTAGE: 12V
CAPACITY: 17.0 AH (10H)
VERSION: MAINTENANCE FREE
ON: YES
LENGTH: 181MM
WIDTH: 76MM
HEIGHT: 167MM
READY WEIGHT: 5.9KG
ACID PACK INCLUDED: NO
CONNECTION TYPE: FEMALE FLAT TERMINAL
GAS DRAIN: WITHOUT
