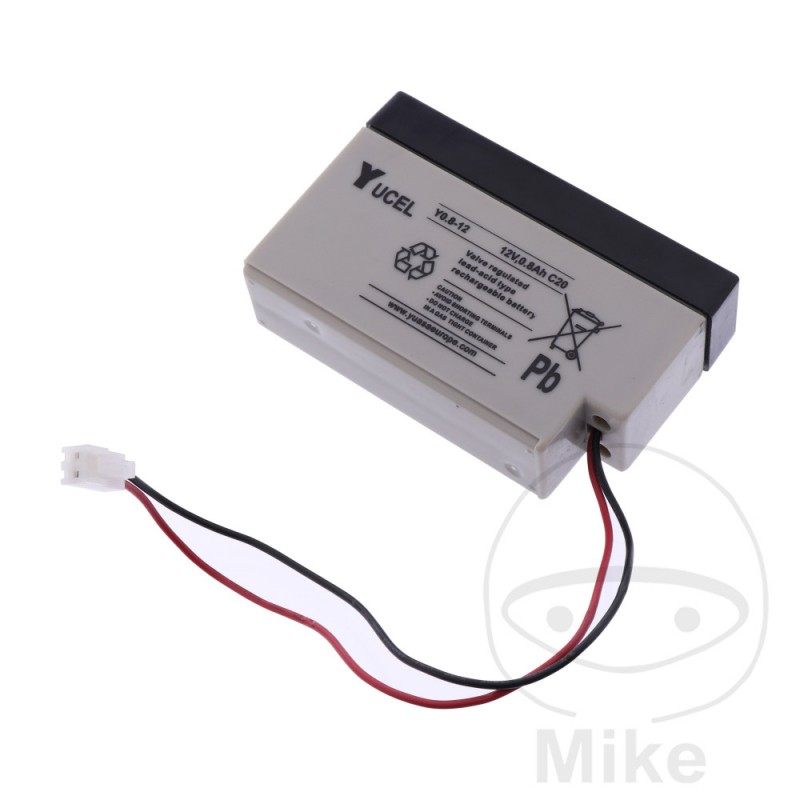

YUASA MAINTENANCE FREE MOTORCYCLE BATTERY NP Y0.8-12 707.01.27

Yucel 12V Maintenance Free Battery

Yuasa NP batteries have excellent deep discharge recovery properties in connection with long life in float charge operation and are therefore suitable for numerous applications in float and cyclic charge operation.

The electrolyte is wrapped in a fleece and is also approved for aircraft (IATA).

We recommend the JMP 4000 charger for charging and maintenance.

Charging in cycle mode:

The charging voltage should be between 2.35 and 2.5V/cell.

The maximum charging current must be limited to 0.25 C (A) in cyclic operation.

The charging time should not exceed 24 hours.

Float Mode Charge:

The charging voltage should be between 2.25 and 2.3 V/cell.

The maximum charging current does not have to be limited when operating in float mode.

The battery can be considered charged when the residual charging current has reached 0.002 C (A).

Technical specifications:

Capacity 20 hours in AH = 0.8 A

Dimensions in mm 96x62x25

Weight approx. 360 grams

Features:

Totally maintenance free

locked cells

Safe from deep discharges

no electrolyte leakage

complete recombination of oxygen

suitable for continuous charging or cyclical operation

can be used in any position

higher energy density

Long useful life

Tested by you.

Application areas:

Alarm systems, cable television, communication equipment, portable telephones, control devices, computers

electronic cash registers, electronic test equipment, emergency lighting systems, fire alarm and security system

Geophysical devices, marine devices, medical devices, microprocessor-based office machines

portable video and film lighting, power tools, handheld vacuums, telecommunication systems, etc.
VOLTAGE: 12V
CAPACITY: 0.74AH (10H)
ENERGY CAPACITY: 8.88WH
VERSION: MAINTENANCE FREE
ON: YES
LENGTH: 96MM
WIDTH: 25MM
HEIGHT: 62MM
READY WEIGHT: 0.36KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: CABLES
GAS DRAIN: WITHOUT

Features:
WIDTH: 25MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Yamaha TZ 250 87 CV, 64 kw 2cil. CG03C 4TW3 Bastidores: CG03C henceforth00101-- 1998
COMPATIBLE WITH Yamaha TZ 250 87 CV, 64 kw 2cil. CG06C 4TW4 Bastidores: CG06C henceforth00101-- 1999
COMPATIBLE WITH Yamaha TZ 250 92 CV, 67,7 kw 2cil. CG09C 5KE1 Bastidores: CG09C henceforth00101-- 2000
COMPATIBLE WITH Yamaha TZ 250 92 CV, 67,7 kw 2cil. CG09C 5KE2 Bastidores: CG09C henceforth00156-- 2001
COMPATIBLE WITH Yamaha TZ 250 92 CV, 67,7 kw 2cil. CG09C 5KE3 Bastidores: CG09C henceforth00250-- 2002
COMPATIBLE WITH Yamaha TZ 250 98 CV, 72 kw 2cil. CG15C 5KE4 Bastidores: CG15C henceforth00005-- 2003
