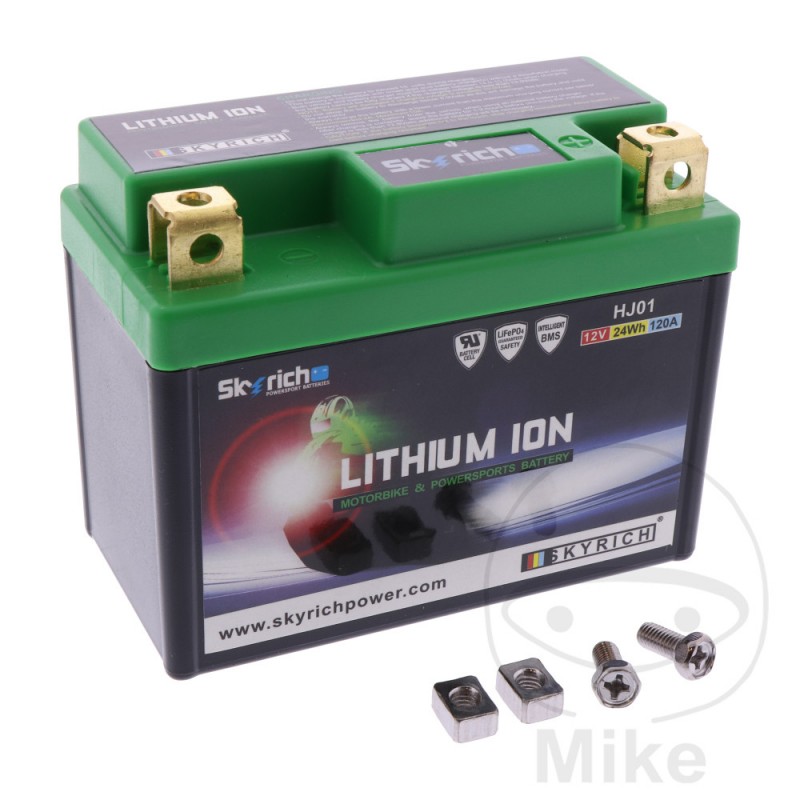

SKYRICH lithium ion battery HJ01 707.01.49

Skyrich Lithium Ion Battery with Surge Protection



Skyrich is a premium series manufacturer and supplier to renowned manufacturers such as KTM and Ducati.

LTM-Line Power Sports Lithium Ion batteries feature a heat and water resistant nylon housing and improved terminal connections.



Overload Protection (OP)

The Skyrich battery features an advanced Battery Management System (BMS) which, in addition to balancers (which ensure even battery charge/discharge), also includes overcharge protection. This prevents the battery from being charged with a voltage higher than 14.9V.

Spacer(S)

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive tape, so that the battery fits exactly into the battery box.



Water resistant (W)

The battery is completely waterproof and will not be damaged when cleaning the bike with high pressure.



Replacing a standard lead acid battery with a Skyrich lithium ion battery can save up to 5kg of weight without any significant effort.

The following advantages speak in favor of Skyrich lithium-ion batteries:

- integrated overvoltage protection

- approx. 1/3 the weight of comparable lead acid battery

- improved brass terminals for better conductivity

- waterproof

- completely black battery housing

- nylon battery case, so deformation due to heat is practically impossible

- unbeatable cost/weight ratio

- can be installed in any position, as it does not contain acid

- does not contain heavy metals

- balanced discharge/charge of all cells by means of a balancer

- fast charging possible with high charging current (up to 90% in 6 min)

- very low self-discharge (max. 5% per month)

- still performs well at high temperatures up to 60°C

- safe technology and long service life

Due to their specific characteristics, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries can use almost 100% of their capacity.

For this reason, the lithium versions of Skyrich batteries require only 1/3 the capacity of a comparable lead acid battery for the same starting power.

The dimensions of the lithium ion batteries correspond to those of the original lead batteries with the help of adapters.

In addition, the connections are identical, so the battery can be replaced in a few minutes without the need for further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

Please see the technical data below for the maximum recommended charging currents.



In no case should chargers be used that attempt to desulfate deeply discharged batteries below 10 volts with a voltage greater than 14.9 volts before actual charging begins.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

Skyrich lithium ion batteries use iron phosphate (LiFePO4) as cathode material and use the lithium polymer process in their manufacture. This prevents them from bursting into flames or exploding during normal operation.

The technology and manufacturing process guarantee the highest level of safety for lithium batteries.

- Maintenance-free 12 V lithium-ion battery

- Recommended charging current 1 A

- maximum charging current for fast charging 10 A

Identical to:

YTZ5S
VOLTAGE: 12V
CAPACITY: 2AH (10H)
ENERGY CAPACITY: 24WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 120 A
PRÜFNORM DES HERSTELLERS: SAE
LENGTH: 107MM
WIDTH: 56MM
HEIGHT: 85MM
READY WEIGHT: 0.4KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT RIGHT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT LEFT
GAS DRAIN: WITHOUT
NORMA DE PRUEBA DEL FABRICANTE: SAE

Features:
LENGTH: 107MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Kawasaki KX 250 4T X 1cil. KX252DDA DMFNN Bastidores: KX252DDA henceforth00001-KX252DDA henceforth03000 2021
COMPATIBLE WITH Kawasaki KX 250 4T X 1cil. KX252DDA DNFNN Bastidores: KX252DDA henceforth03001-KX252DDA henceforth07000 2022
COMPATIBLE WITH Kawasaki KX 250 4T X 1cil. KX252DDA DNSNN Bastidores: KX252DDA henceforth03001-KX252DDA-999999 2022
COMPATIBLE WITH Kawasaki KX 450 F 1cil. KX450JJA JKF Bastidores: KX450JJA henceforth00001-KX450JJA henceforth09000 2019
COMPATIBLE WITH Kawasaki KX 450 F 1cil. KX450JJA JLF Bastidores: KX450JJA henceforth09001-KX450JJA-999999 2020
COMPATIBLE WITH Kawasaki KX 450 J 1cil. KX450JJA MFNN Bastidores: KX450JJA henceforth17001-KX450JJA henceforth25000 2021
COMPATIBLE WITH Kawasaki KX 450 J 1cil. KX450JJA NFNN Bastidores: KX450JJA henceforth25001-KX450JJA henceforth34000 2022
COMPATIBLE WITH Kawasaki KX 450 J 1cil. KX450JJA NSNN Bastidores: KX450JJA henceforth25001-KX450JJA henceforth34000 2022
COMPATIBLE WITH Kawasaki KX 450 J 1cil. KX450JJA PFNN Bastidores: KX450JJA henceforth34001-KX450JJA-999999 2023
COMPATIBLE WITH Kawasaki KX 450 X 1cil. KX450KKA KMFNN Bastidores: KX450KKA henceforth00001-KX450KKA henceforth05000 2021
COMPATIBLE WITH Kawasaki KX 450 X 1cil. KX450KKA KNFNN Bastidores: KX450KKA henceforth05001-KX450KKA henceforth08000 2022
COMPATIBLE WITH Kawasaki KX 450 X 1cil. KX450KKA KNSNN Bastidores: KX450KKA henceforth05001-KX450KKA henceforth08000 2022
COMPATIBLE WITH Kawasaki KX 450 X 1cil. KX450KKA KPFNN Bastidores: KX450KKA henceforth08001-KX450KKA999999 2023
COMPATIBLE WITH Kawasaki KX 450 X 1cil. KX450KKA KPSNN Bastidores: KX450KKA henceforth08001-KX450KKA999999 2023
