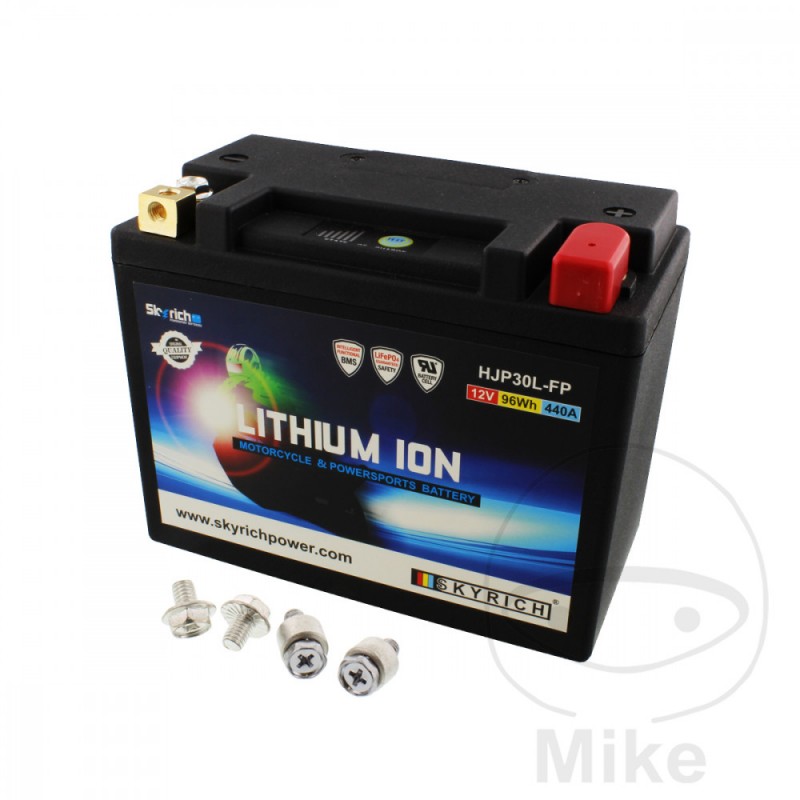

SKYRICH lithium ion battery HJP30L-FP 707.01.40

Skyrich Lithium Ion Battery with Surge Protection



Skyrich is a premium series manufacturer and supplier to renowned manufacturers such as KTM and Ducati.

LTM-Line Power Sports Lithium Ion batteries feature a heat and water resistant nylon housing and improved terminal connections.



Overload Protection (OP)

The Skyrich battery features an advanced Battery Management System (BMS) which, in addition to balancers (guarantees even battery charge/discharge), also includes overcharge protection. This prevents the battery from being charged with a voltage higher than 14.9V.

Spacer(S)

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive tape, so that the battery fits exactly into the battery box.



Water resistant (W)

The battery is completely waterproof and will not be damaged when cleaning the bike with high pressure.

Indicator (I)

All batteries are equipped with an improved state of charge indicator, which shows the state of charge of the battery more accurately.



Just press the test button to see the battery charge level.



Replacing a standard lead acid battery with a Skyrich Lithium Ion battery can save up to 5kg of weight without any significant effort.

The following advantages speak in favor of Skyrich lithium-ion batteries:

- integrated overvoltage protection

- approx. 1/3 the weight of a comparable lead acid battery

- improved brass terminal connections for better conductivity

- raincoat

- completely black battery housing

- nylon battery case, so deformation due to heat is practically impossible

- unbeatable cost/weight ratio

- can be installed in any position, as it does not contain acid

- does not contain heavy metals

- balanced discharge/charge of all cells by means of a balancer

- fast charging possible with high charging current (up to 90% in 6 min)

- very low self-discharge (max. 5% per month)

- still performs well at high temperatures up to 60°C

- safe technology and long service life

Due to their specific characteristics, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries can use almost 100% of their capacity.

For this reason, the lithium versions of Skyrich batteries require only 1/3 the capacity of a comparable lead acid battery for the same starting power.

The dimensions of the lithium ion batteries correspond to those of the original lead batteries with the help of adapters.

In addition, the connections are identical, so the battery can be replaced in a few minutes without the need for further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

Please see the technical data below for the maximum recommended charging currents.



In no case should chargers be used that attempt to desulfate deeply discharged batteries below 10 volts with a voltage greater than 14.9 volts before actual charging begins.



The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

Skyrich lithium ion batteries use iron phosphate (LiFePO4) as cathode material and use the lithium polymer process in their manufacture. This prevents them from bursting into flames or exploding during normal operation.

The technology and manufacturing process guarantee the highest level of safety for lithium batteries.

- Maintenance-free 12 V lithium-ion battery

- recommended charging current 4 A

- maximum charging current for fast charging 32 A

Identical to:

YIX30L

YB30L-B

52515

Y60N24AL-B

HVT-6

YIX30L-BS

YB30CL-B

12N24-3A

12N24-3

53030

HVT-1

HVT-4

YIX30L

YB30L-B

52515

Y60N24AL-B

HVT-6

YIX30L-BS

YB30CL-B

12N24-3A

12N24-3

53030

HVT-1

HVT-4
VOLTAGE: 12V
CAPACITY: 8AH (10H)
ENERGY CAPACITY: 96WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 440 A
LENGTH: 165MM
WIDTH: 87MM
Height: 130 mm
READY WEIGHT: 1.8KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT RIGHT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT LEFT
GAS DRAIN: WITHOUT


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2021-2022
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 Crew 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2021-2022
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 Crew Ranch Edition 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2021
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 LTD 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2022
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 Ranch Edition 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2021
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 XT 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2022
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 XT Crew 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2022
COMPATIBLE WITH Arctic Cat/Textron Prowler Pro 800 XT Crew LTD 4WD EFT EPS 50 CV, 37 kw 3cil. - Bastidores: --- 2022
COMPATIBLE WITH CFMOTO CForce 800 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2014-2015
COMPATIBLE WITH CFMOTO CForce 800 EPS 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2015-2016
COMPATIBLE WITH CFMOTO CForce 800 XL DLX 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2016
COMPATIBLE WITH CFMOTO CForce 800 XL One 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2016
COMPATIBLE WITH CFMOTO Terralander 800 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2011-2013
COMPATIBLE WITH CFMOTO Tracker 800 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2013
COMPATIBLE WITH CFMOTO UForce 800 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2014-2016
COMPATIBLE WITH CFMOTO UForce 800 DLX DLX 65,3/61 CV, 48/45 kw 2cil. - Bastidores: --- 2017
COMPATIBLE WITH CFMOTO UForce 800 DLX DLX 65,3/61,2 CV, 48/45 kw 2cil. - Bastidores: --- 2018
COMPATIBLE WITH CFMOTO UForce 800 EPS 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2015-2016
COMPATIBLE WITH CFMOTO ZForce 1000 EPS LOF 80,2 CV, 59 kw 2cil. - Bastidores: --- 2018
COMPATIBLE WITH CFMOTO ZForce 800 EX 65,3/20 CV, 48/14,8 kw 2cil. - Bastidores: --- 2015-2016
COMPATIBLE WITH CFMOTO ZForce 800 EX EPS 65,3/61 CV, 48/45 kw 2cil. - Bastidores: --- 2017
