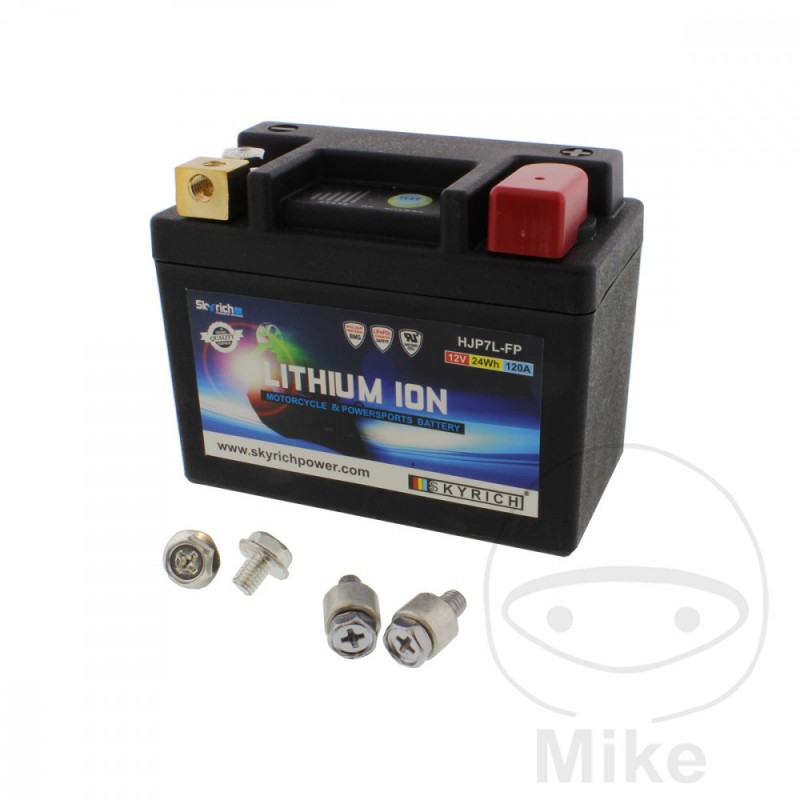

Skyrich Lithium Ion Battery with Surge Protection



Skyrich is a premium series manufacturer and supplier to renowned manufacturers such as KTM and Ducati.

Power Sports Lithium Ion batteries from the LTM line feature a heat and water resistant nylon casing and improved pole connections.



Overload Protection (OP)

The Skyrich battery features an advanced Battery Management System (BMS) which, in addition to balancers (which ensure even battery charge/discharge), also includes overcharge protection. This prevents the battery from being charged with a voltage higher than 14.9V.

Spacer(S)

The battery is equipped with one or more spacers that are glued under the battery with the supplied adhesive strip so that the battery fits exactly into the battery box.

Waterproof (WP)

The battery is completely waterproof and will not be damaged when cleaning the bike with high pressure.

Indicator (I)

All batteries are equipped with an improved state of charge indicator, which shows the state of charge of the battery more accurately.



Replacing a standard lead-acid battery with a Skyrich lithium-ion battery can save up to 5kg in weight, without any significant effort.

The following advantages speak in favor of Skyrich lithium-ion batteries:

- integrated overvoltage protection

- approx. 1/3 the weight of a comparable lead acid battery

- improved pole connections made of brass for better conductivity

- raincoat

- completely black battery housing

- battery case made of nylon, so deformation due to heat is practically impossible

- unbeatable cost/weight ratio.

- can be installed in any position, as it does not contain acid

- does not contain heavy metals

- balanced discharge/charge of all cells by means of a balancer

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (max. 5% per month)

- still performs well at high temperatures up to 60°C

- safe technology and long service life

Due to their specific characteristics, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries can use almost 100% of their capacity.

For this reason, the lithium versions of Skyrich batteries only require 1/3 the capacity of a comparable lead-acid battery for the same starting power.

The dimensions of the lithium ion batteries correspond to those of the original lead batteries with the help of adapters.

In addition, the connections are identical, so the battery can be replaced in a few minutes without the need for further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

See technical data below for maximum recommended charging currents.



Under no circumstances should chargers be used that attempt to desulfate deeply discharged batteries below 10 volts with a voltage greater than 14.9 volts prior to initiating actual charging.



The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

Skyrich lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacture. This means that they cannot burst into flames or explode during normal operation.

The technology and manufacturing process guarantee the highest level of safety for lithium batteries.

- Maintenance-free 12 V lithium-ion battery

- Recommended charging current 1 A

- maximum charging current for fast charging 10 A



Identical construction with:

YB6.5L-B

12N7A-3A

YB4L-A

YB4L-B

12N5.5-3B

12N7D-3B

YTZ5S

12N7-3B

YTX7L-BS

12N7CZ-3D

YTX5L-BS

12N4-3B

YB5L-B

YB7L-B

YTZ7S

12N5-3B

YTX4L-BS
VOLTAGE: 12V
CAPACITY: 2AH (10H)
ENERGY CAPACITY: 24WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 120 A
LENGTH: 107MM
WIDTH: 56MM
HEIGHT: 85MM
READY WEIGHT: 0.6KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT RIGHT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT LEFT
GAS DRAIN: WITHOUT
