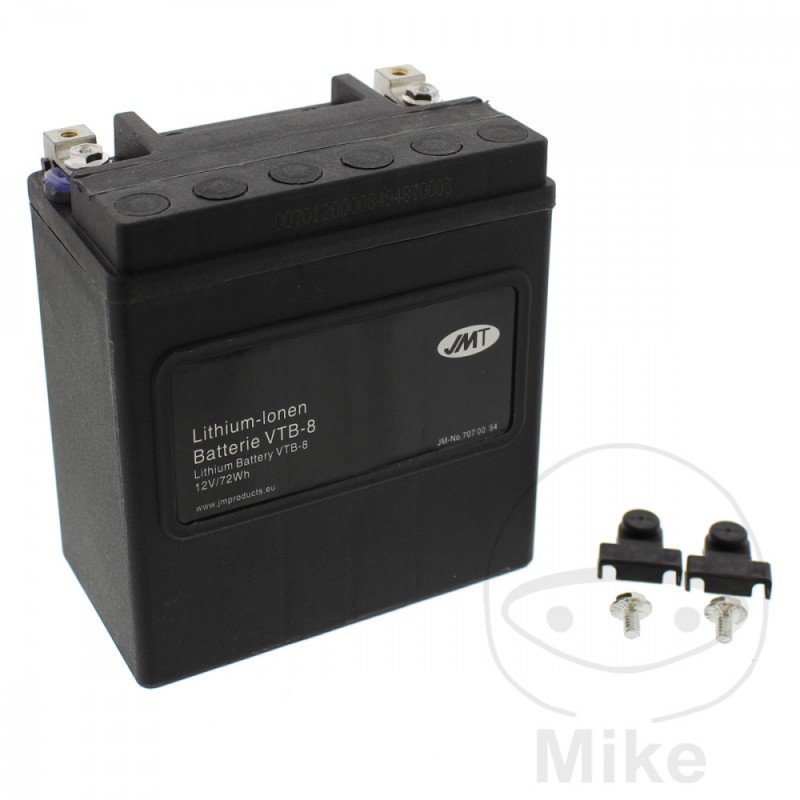

JMT lithium ion battery VTB-8 V-TWIN 707.00.54

High tech for all Harley V2 twins

By replacing a standard lead-acid battery with a JMT lithium-ion battery, you can save up to 5kg in weight without significant effort.

The following advantages speak in favor of JMT lithium-ion batteries:

- Approximately 1/3 the weight of a comparable lead-acid battery.

- Unbeatable cost / weight ratio

- It can be installed in any position, since there is no acid.

- does not contain heavy metals

- Balanced discharge / charge of all cells by balancers.

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (maximum 5% per month)

- even at high temperatures it remains a good performance up to 60 ° C

- Safe technology and long service life.

- Special black, rough surface for an optimal "look"

- very high cold starting power

- Excellent resistance to vibrations.

- Heavy-duty pole connections ensure a smooth start and long

lifetime

- Delivered with a post cover, also in black.

Due to their specific properties, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries use almost 100% of their capacity. For this reason, the lithium versions of JMT batteries require only 1/3 the capacity of a comparable lead-acid battery for the same starting power.

An integrated processor ("balancer") also ensures a uniform state of charge for all cells.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers. For maximum recommended charging currents, see technical data below.

Under no circumstances should chargers that attempt to desulfurize deep discharge batteries below 10 volts with a voltage greater than 14.9 volts be used before actual charging begins.

The maximum charging voltage of 14.9 volts must never be exceeded.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacturing. As a result, they cannot catch fire or explode in normal operation.

The technology and manufacturing process guarantee the highest safety standard for lithium batteries.
VOLTAGE: 12V
CAPACITY: 8.0 AH (10H)
ENERGY CAPACITY: 96WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 400 A
SAE TESTED WITH JMP-TESTER: 500 A
DIN TESTED WITH JMP-TESTER: 460 A
IN TESTED WITH JMP-TESTER: 280 A
LENGTH: 148MM
WIDTH: 86MM
HEIGHT: 144MM
READY WEIGHT: 1.4KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FRONT
TERMINAL/TERMINAL/POSITIVE POLE: FRONT LEFT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT RIGHT
GAS DRAIN: WITHOUT


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Harley Davidson VRSCA 1130 V-Rod 117 CV, 86 kw 2cil. HAZ VR1 Bastidores: --- 2002-2006
COMPATIBLE WITH Harley Davidson VRSCA 1130 V-Rod 99 CV, 73 kw 2cil. HAA VR1 Bastidores: --- 2002-2005
COMPATIBLE WITH Harley Davidson VRSCB 1130 V-Rod 117 CV, 86 kw 2cil. HBZ VR1 Bastidores: --- 2004-2005
COMPATIBLE WITH Harley Davidson VRSCB 1130 V-Rod 99 CV, 73 kw 2cil. HBA VR1 Bastidores: --- 2004-2005
COMPATIBLE WITH Harley Davidson VRSCD 1130 Night Rod 121 CV, 89 kw 2cil. HDZ VR1 Bastidores: --- 2006
COMPATIBLE WITH Harley Davidson VRSCR 1130 Street-Rod 121 CV, 89 kw 2cil. HCZ VR2 Bastidores: --- 2006-2007
COMPATIBLE WITH Harley Davidson VRSCSE 1250 CVO V-Rod Screamin Eagle 125 CV, 92 kw 2cil. PMG VR1 Bastidores: --- 2005
