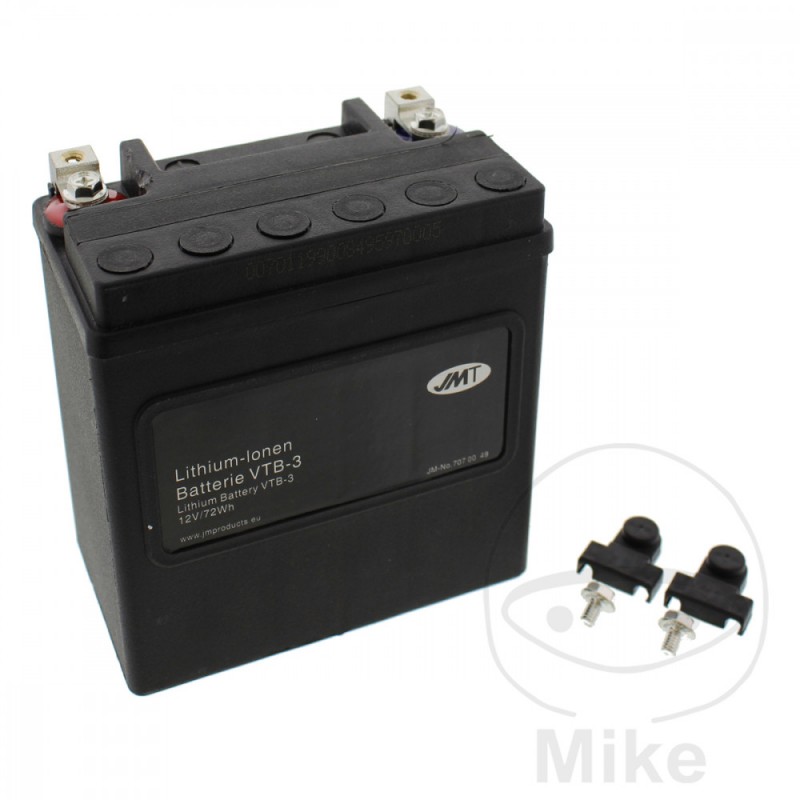

JMT lithium ion battery VTB-3 V-TWIN 707.00.49

JMT Lithium Ion Battery for Harley Davidson

High tech for all Harley V2 twins

By replacing a standard lead-acid battery with a JMT lithium-ion battery, you can save up to 5kg in weight without significant effort.

The following advantages speak in favor of JMT lithium-ion batteries:

- Approximately 1/3 the weight of a comparable lead-acid battery.

- Unbeatable cost / weight ratio

- It can be installed in any position, since there is no acid.

- does not contain heavy metals

- Balanced discharge / charge of all cells by balancers.

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (maximum 5% per month)

- even at high temperatures it remains a good performance up to 60 ° C

- Safe technology and long service life.

- Special black, rough surface for an optimal "look"

- very high cold starting power

- Excellent resistance to vibrations.

- Heavy-duty pole connections ensure a smooth start and long

lifetime

- Delivered with a post cover, also in black.

Due to their specific properties, lead-acid batteries can only use 30% of their capacity, while lithium-ion batteries use almost 100% of their capacity. For this reason, the lithium versions of JMT batteries require only 1/3 the capacity of a comparable lead-acid battery for the same starting power.

An integrated processor ("balancer") also ensures a uniform state of charge for all cells.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers. For maximum recommended charging currents, see technical data below.

Under no circumstances should chargers that attempt to desulfurize deep discharge batteries below 10 volts with a voltage greater than 14.9 volts be used before actual charging begins.

The maximum charging voltage of 14.9 volts must never be exceeded.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacturing. As a result, they cannot catch fire or explode in normal operation.

The technology and manufacturing process guarantee the highest safety standard for lithium batteries.
VOLTAGE: 12V
CAPACITY: 8.0 AH (10H)
ENERGY CAPACITY: 96WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 400 A
SAE TESTED WITH JMP-TESTER: 490 A
DIN TESTED WITH JMP-TESTER: 445 A
IN CHECKED WITH JMP-TESTER: 275 A
LENGTH: 148MM
WIDTH: 86MM
HEIGHT: 144MM
READY WEIGHT: 1.2KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FRONT
TERMINAL/TERMINAL/POSITIVE POLE: FRONT RIGHT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT LEFT
GAS DRAIN: WITHOUT


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:

COMPATIBLE WITH Harley Davidson Pan America 1250 Pan America RA1250 ABS 152 CV, 112 kw 2cil. ZDS Bastidores: --- 2021-2023
COMPATIBLE WITH Harley Davidson Pan America 1250 Pan America Special RA1250S ABS 152 CV, 112 kw 2cil. ZES Bastidores: --- 2021-2023
COMPATIBLE WITH Harley Davidson RH 1000 Nightster ABS 48 CV 35 kw 2cil. ZH1 Bastidores: --- 2023
COMPATIBLE WITH Harley Davidson RH 1000 Nightster ABS 90 CV, 66 kw 2cil. ZH1 Bastidores: --- 2023
COMPATIBLE WITH Harley Davidson RH 1000 Nightster Special ABS 48 CV. 35 kw 2cil. ZF1 Bastidores: --- 2023
COMPATIBLE WITH Harley Davidson RH 1000 Nightster Special ABS 90 CV, 66 kw 2cil. ZF1 Bastidores: --- 2023
COMPATIBLE WITH Harley Davidson RH 1250 S Sportster ABS 122 CV, 90 kw 2cil. ZC4 Bastidores: --- 2021-2023
COMPATIBLE WITH Harley Davidson XG 500 Street 2cil. NAA Bastidores: --- 2015-2020
COMPATIBLE WITH Harley Davidson XG 750 A Street Rod ABS 71/48 CV, 52/35 kw 2cil. NCG XG1 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XG 750 Street 45 CV, 33 kw 2cil. NBB XG1 Bastidores: --- 2015-2016
COMPATIBLE WITH Harley Davidson XG 750 Street 57 CV, 42 kw 2cil. NBB XG1 Bastidores: --- 2015-2016
COMPATIBLE WITH Harley Davidson XG 750 Street ABS 58/48 CV, 43/35 kw 2cil. NBB XG1 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom 34 CV, 25 kw 2cil. CT3 XL2 Bastidores: --- 2007-2013
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CGP XL2 Bastidores: --- 2004-2006
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2007-2013
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom ABS 46 CV, 34 kw 2cil. CT3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom ABS 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2014
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom ABS 68 CV, 50 kw 2cil. CT3 XL2 Bastidores: --- 2015-2016
COMPATIBLE WITH Harley Davidson XL 1200 C Sportster Custom ABS 68/46 CV, 50/34 kw 2cil. CT3 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 1200 CA Sportster Custom Limited Edition A 34 CV, 25 kw 2cil. LJ3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 CA Sportster Custom Limited Edition A 67 CV, 49 kw 2cil. LJ3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 CA Sportster Custom Limited Edition A ABS 46 CV, 34 kw 2cil. LJ3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 CA Sportster Custom Limited Edition A ABS 68 CV, 50 kw 2cil. LJ3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 CB Sportster Custom Limited Edition B 34 CV, 25 kw 2cil. LK3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 CB Sportster Custom Limited Edition B 67 CV, 49 kw 2cil. LK3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 34 CV, 25 kw 2cil. LK3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 68 CV, 50 kw 2cil. LK3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 CB Sportster Custom Limited Edition B ABS 68/46 CV, 50/34 kw 2cil. LK3 XL2 Bastidores: --- 2017
COMPATIBLE WITH Harley Davidson XL 1200 CX Sportster Roadster ABS 46 CV, 34 kw 2cil. LM3 XL2 Bastidores: --- 2016
COMPATIBLE WITH Harley Davidson XL 1200 CX Sportster Roadster ABS 67 CV, 49 kw 2cil. LM3 XL2 Bastidores: --- 2016
COMPATIBLE WITH Harley Davidson XL 1200 CX Sportster Roadster ABS 67/46 CV, 49/34 kw 2cil. LM3 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 1200 L Sportster Low 34 CV, 25 kw 2cil. CX3 XL2 Bastidores: --- 2007-2009
COMPATIBLE WITH Harley Davidson XL 1200 L Sportster Low 67 CV, 49 kw 2cil. CX3 XL2 Bastidores: --- 2007-2009
COMPATIBLE WITH Harley Davidson XL 1200 N Sportster Nightster 34 CV, 25 kw 2cil. CZ3 XL2 Bastidores: --- 2008-2012
COMPATIBLE WITH Harley Davidson XL 1200 N Sportster Nightster 67 CV, 49 kw 2cil. CZ3 XL2 Bastidores: --- 2008-2012
COMPATIBLE WITH Harley Davidson XL 1200 NS Sportster Iron ABS 67 CV, 49 kw 2cil. LP3 Bastidores: --- 2019-2020
COMPATIBLE WITH Harley Davidson XL 1200 R Sportster Roadster 34 CV, 25 kw 2cil. CV3 XL2 Bastidores: --- 2007-2008
COMPATIBLE WITH Harley Davidson XL 1200 R Sportster Roadster 67 CV, 49 kw 2cil. CLP XL2 Bastidores: --- 2004-2006
COMPATIBLE WITH Harley Davidson XL 1200 R Sportster Roadster 67 CV, 49 kw 2cil. CV3 XL2 Bastidores: --- 2007-2008
COMPATIBLE WITH Harley Davidson XL 1200 T Sportster Superlow ABS 46 CV, 34 kw 2cil. LL3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 T Sportster Superlow ABS 68 CV, 50 kw 2cil. LL3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 T Sportster Superlow ABS 68/46 CV, 50/34 kw 2cil. LL3 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 1200 V Sportster Seventy-Two 34 CV, 25 kw 2cil. LF3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 V Sportster Seventy-Two 67 CV, 49 kw 2cil. LF3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 1200 V Sportster Seventy-Two ABS 46 CV, 34 kw 2cil. LF3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 V Sportster Seventy-Two ABS 67 CV, 49 kw 2cil. LF3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight 34 CV, 25 kw 2cil. LC3 XL2 Bastidores: --- 2010-2013
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight 67 CV, 49 kw 2cil. LC3 XL2 Bastidores: --- 2010-2013
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight ABS 46 CV, 34 kw 2cil. LC3 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight ABS 67 CV, 49 kw 2cil. LC3 XL2 Bastidores: --- 2015-2016
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight ABS 67/46 CV, 49/34 kw 2cil. LC3 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight ABS 68 CV, 50 kw 2cil. LC3 XL2 Bastidores: --- 2014
COMPATIBLE WITH Harley Davidson XL 1200 X Sportster Forty Eight Anniversary ABS 67/46 CV, 49/34 kw 2cil. LN3 XL2 Bastidores: --- 2018
COMPATIBLE WITH Harley Davidson XL 1200 XS Sportster Forty Eight Special ABS 67/46 CV, 49/34 kw 2cil. LR3 XL2 Bastidores: --- 2019-2020
COMPATIBLE WITH Harley Davidson XL 53 883 C Sportster Custom 34 CV, 25 kw 2cil. CJM XL2 Bastidores: --- 2004
COMPATIBLE WITH Harley Davidson XL 53 883 C Sportster Custom 54 CV, 40 kw 2cil. CJM XL2 Bastidores: --- 2004
COMPATIBLE WITH Harley Davidson XL 883 C Sportster Custom 34 CV, 25 kw 2cil. CJM XL2 Bastidores: --- 2005-2006
COMPATIBLE WITH Harley Davidson XL 883 C Sportster Custom 34 CV, 25 kw 2cil. CP2 XL2 Bastidores: --- 2007-2010
COMPATIBLE WITH Harley Davidson XL 883 C Sportster Custom 53 CV, 39 kw 2cil. CP2 XL2 Bastidores: --- 2007-2010
COMPATIBLE WITH Harley Davidson XL 883 C Sportster Custom 54 CV, 40 kw 2cil. CJM XL2 Bastidores: --- 2005-2006
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Low 34 CV, 25 kw 2cil. CMM XL2 Bastidores: --- 2005-2006
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Low 34 CV, 25 kw 2cil. CR2 XL2 Bastidores: --- 2007-2010
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Low 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2007-2010
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Low 54 CV, 40 kw 2cil. CMM XL2 Bastidores: --- 2005-2006
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low 34 CV, 25 kw 2cil. CR2 XL2 Bastidores: --- 2011-2012
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low 45 CV, 33 kw 2cil. CR2 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2011-2013
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low ABS 45 CV, 33 kw 2cil. CR2 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low ABS 53 CV, 39 kw 2cil. CR2 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 883 L Sportster Super Low ABS 53/44 CV, 39/32 kw 2cil. CR2 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron 34 CV, 25 kw 2cil. LE2 XL2 Bastidores: --- 2009-2012
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron 45 CV, 33 kw 2cil. LE2 XL2 Bastidores: --- 2013-2014
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron 53 CV, 39 kw 2cil. LE2 XL2 Bastidores: --- 2009-2014
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron ABS 45 CV, 33 kw 2cil. LE2 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron ABS 52/44 CV, 38/32 kw 2cil. LE2 XL2 Bastidores: --- 2017-2020
COMPATIBLE WITH Harley Davidson XL 883 N Sportster Iron ABS 53 CV, 39 kw 2cil. LE2 XL2 Bastidores: --- 2014-2016
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster 34 CV, 25 kw 2cil. CS2 XL2 Bastidores: --- 2007-2012
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster 45 CV, 33 kw 2cil. CS2 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster 53 CV, 39 kw 2cil. CS2 XL2 Bastidores: --- 2007-2013
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster ABS 45 CV, 33 kw 2cil. CS2 XL2 Bastidores: --- 2014-2015
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster ABS 53 CV, 39 kw 2cil. CS2 XL2 Bastidores: --- 2014-2015
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster Race Replica 34 CV, 25 kw 2cil. CKM XL2 Bastidores: --- 2006
COMPATIBLE WITH Harley Davidson XL 883 R Sportster Roadster Race Replica 54 CV, 40 kw 2cil. CKM XL2 Bastidores: --- 2006
COMPATIBLE WITH Harley Davidson XL 883 Sportster 34 CV, 25 kw 2cil. CAM XL2 Bastidores: --- 2004-2006
COMPATIBLE WITH Harley Davidson XL 883 Sportster 34 CV, 25 kw 2cil. CN2 XL2 Bastidores: --- 2007-2009
COMPATIBLE WITH Harley Davidson XL 883 Sportster 53 CV, 39 kw 2cil. CN2 XL2 Bastidores: --- 2007-2009
COMPATIBLE WITH Harley Davidson XL 883 Sportster 54 CV, 40 kw 2cil. CAM XL2 Bastidores: --- 2004-2006
COMPATIBLE WITH Harley Davidson XL-ANV 1200 C Sportster Custom Anniversary 34 CV, 25 kw 2cil. CT3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XL-ANV 1200 C Sportster Custom Anniversary 67 CV, 49 kw 2cil. CT3 XL2 Bastidores: --- 2013
COMPATIBLE WITH Harley Davidson XR 1200 33 CV, 24 kw 2cil. LA6 XR1 Bastidores: --- 2008-2010
COMPATIBLE WITH Harley Davidson XR 1200 91 CV, 67 kw 2cil. LA6 XR1 Bastidores: --- 2008-2010
COMPATIBLE WITH Harley Davidson XR 1200 X 33 CV, 24 kw 2cil. LD6 XR1 Bastidores: --- 2010-2012
COMPATIBLE WITH Harley Davidson XR 1200 X 91 CV, 67 kw 2cil. LD6 XR1 Bastidores: --- 2010-2012
