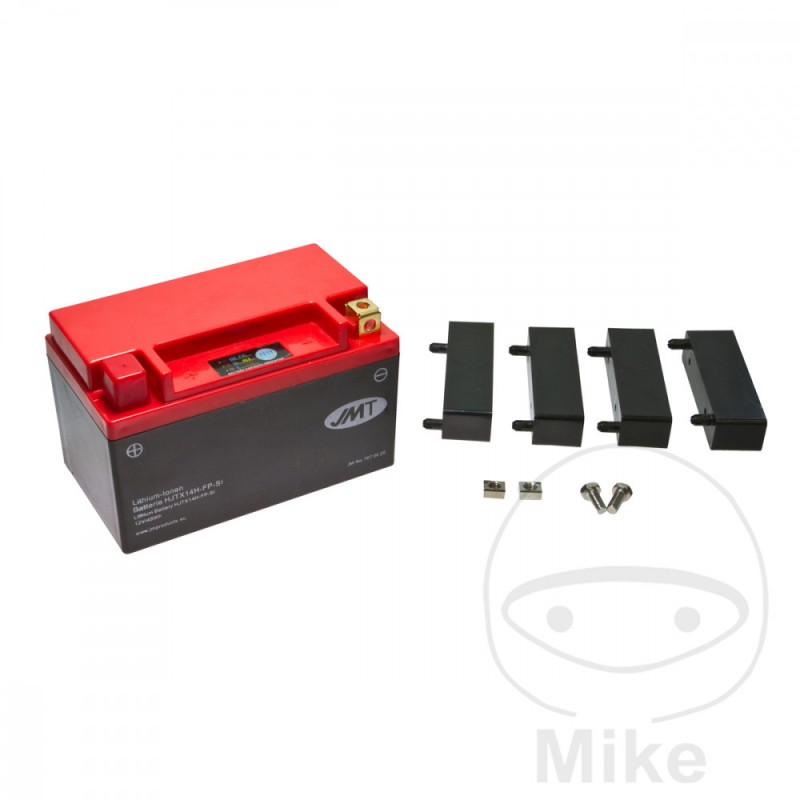

JMT Lithium ion battery with indicator HJTX14H-FP 707.00.29

High-tech lithium-ion batteries from JMT for your motorcycle.

State-of-the-art batteries recognizable by the red casing cover.

Spacer(S)

The battery is equipped with one or more spacers, which are glued under the battery with the supplied adhesive strip, so that the battery fits exactly in the battery box.

Water resistant (W)

The battery is completely waterproof and will not be damaged when the motorcycle is high pressure cleaned.

Indicator (I)

All batteries are equipped with a battery status indicator.

Just press the test button. If all 3 blue LEDs light up, the battery is fully charged (full). If only 2 LEDs light up, it is only half charged (medium). At the latest, when only one LED is on (low), the battery should be charged.

By replacing a standard lead-acid battery with a JMT lithium-ion battery, you can save up to 5kg in weight without significant effort.

The following advantages speak in favor of JMT lithium-ion batteries:

- Approximately 1/3 the weight of a comparable lead-acid battery.

- Unbeatable cost / weight ratio

- It can be installed in any position, since there is no acid.

- does not contain heavy metals

- Balanced discharge / charge of all cells by balancers.

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (maximum 5% per month)

- even at high temperatures it remains a good performance up to 60 ° C

- Safe technology and long service life.

Lead-acid batteries can only use 30% of their capacity due to their specific properties.

while almost 100% of the capacity is available for lithium-ion batteries.

For this reason, the lithium versions of JMT batteries require only 1/3 the capacity of a comparable lead-acid battery for the same starting power.

An integrated processor ("balancer") also ensures a uniform state of charge for all cells.

The dimensions of the lithium ion batteries match the dimensions of the original lead-acid batteries using adapters.

The connections are identical, so the battery can be replaced in a few minutes without any further adjustment.

Please note that only suitable chargers can be used for charging. We recommend JMP chargers.

For maximum recommended charging currents, see technical data below

Under no circumstances should chargers that attempt to desulfurize deep discharge batteries below 10 volts with a voltage greater than 14.9 volts be used before actual charging begins.

The maximum charging voltage of 14.9 volts must never be exceeded.

The manufacturer guarantees a sufficient starting capacity down to -5 degrees Celsius.

TECHNOLOGY

JMT lithium ion batteries use iron phosphate (LiFePO4) as the cathode material and use the lithium polymer process in their manufacturing.

As a result, they cannot catch fire or explode in normal operation.

The technology and manufacturing process guarantee the highest safety standard for lithium batteries.

- Maintenance-free 12V lithium-ion battery.

- Recommended charging current 2.0 A

- Maximum charging current for fast charging 20 A

Comparable in dimensions and connections with:

Yuasa Manuf. No

YTX12-BS

YT12A-BS

YB12B-B2

YTX14H-BS

YTX14-BS
VOLTAGE: 12V
CAPACITY: 4AH (10H)
ENERGY CAPACITY: 48WH
VERSION: LITHIUM
ON: YES
CCA AS MANUFACTURER: 240 A
PRÜFNORM DES HERSTELLERS: SAE
SAE CHECKED WITH JMP-TESTER: 345 A
DIN TESTED WITH JMP-TESTER: 315 A
IN CHECKED WITH JMP-TESTER: 190 A
Length : 150mm
WIDTH: 87MM
HEIGHT: 93MM
READY WEIGHT: 0.9KG
ACID PACK INCLUDED: NO
TYPE OF CONNECTION: FROM ABOVE
TERMINAL/TERMINAL/POSITIVE POLE: FRONT LEFT
TERMINAL/TERMINAL/NEGATIVE POLE: FRONT RIGHT
GAS DRAIN: WITHOUT
NORMA DE PRUEBA DEL FABRICANTE: SAE
